Product Details
Place of Origin: | Jiangxi, China | Brand Name: | Gelin | Model Number: | amalgam barrel |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

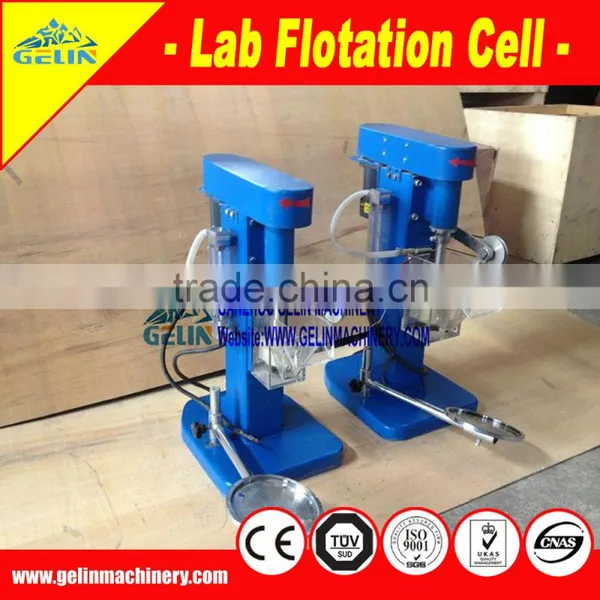

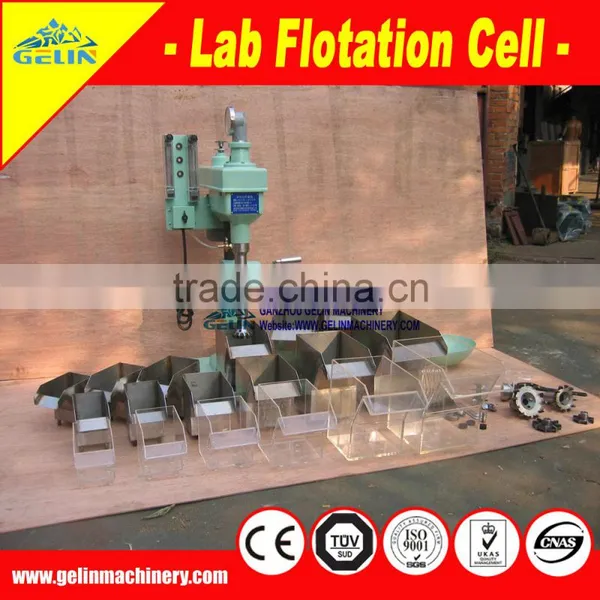

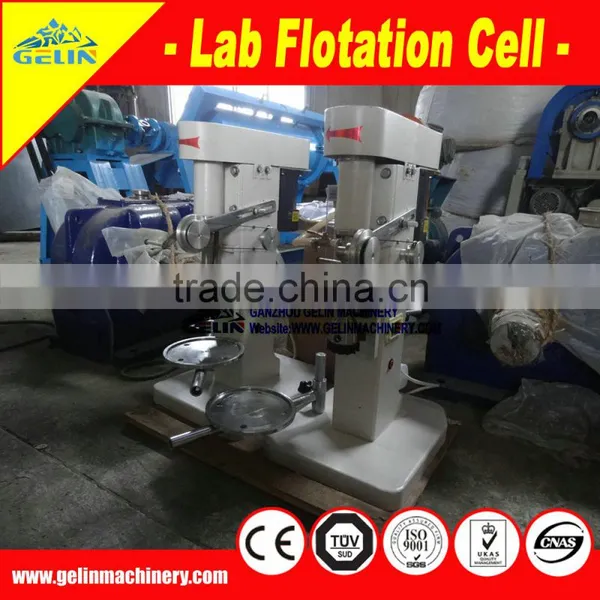

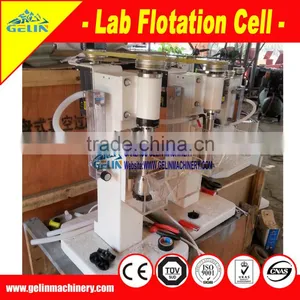

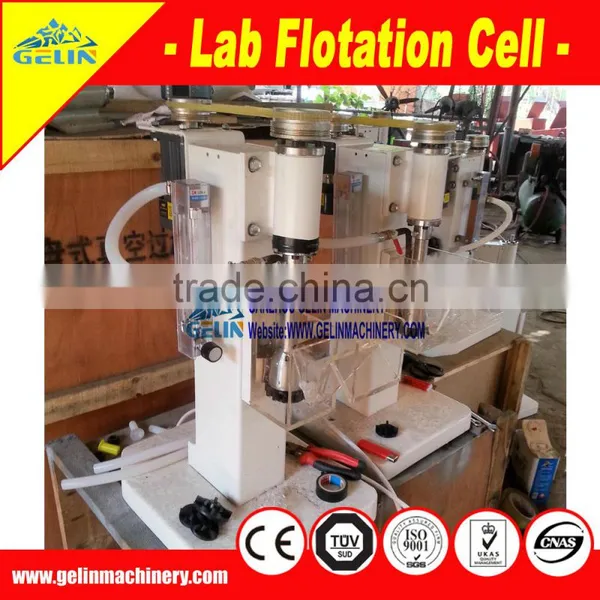

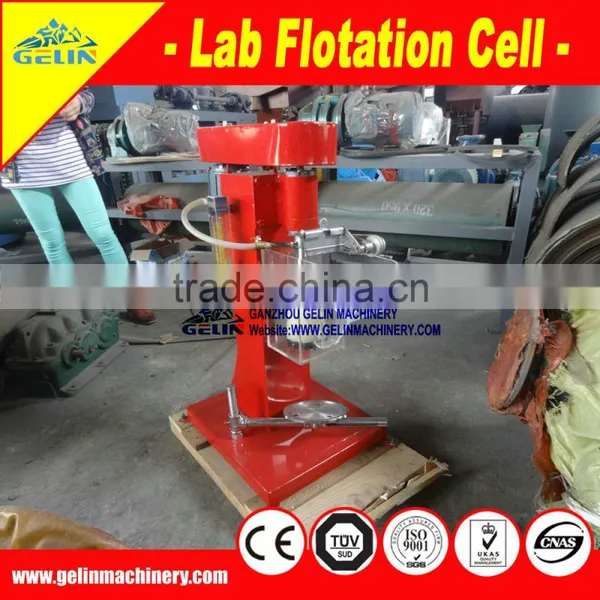

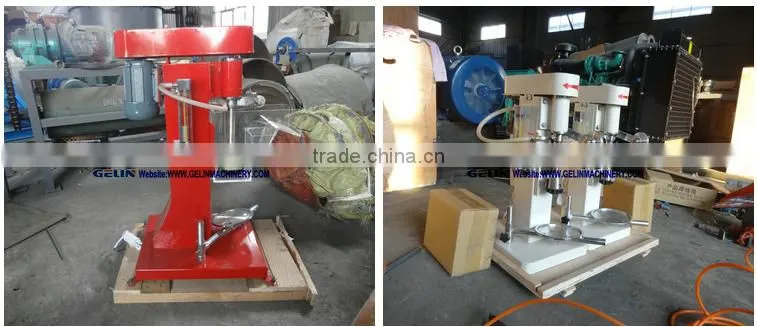

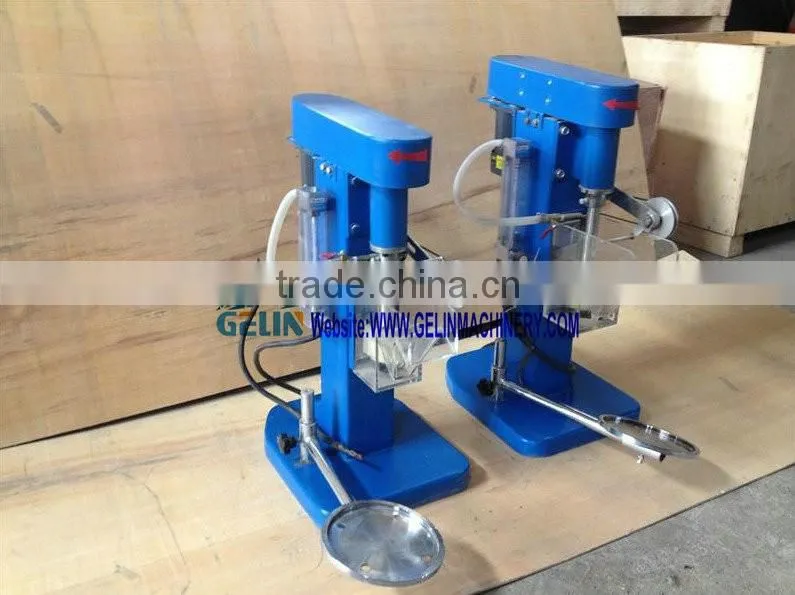

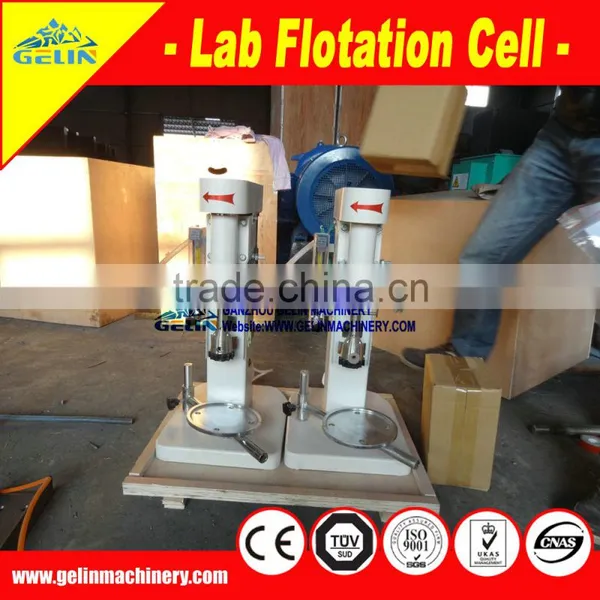

Laboratory flotation
Description
Lab flotation machine is provided for flotation of minor ore samples in labs of geological,metallurgical,chemical and other industries.
1. Perfect quality.
2. High Precise
3. Convenient to maintain
4. Corrosion resisting
5. Low cost, low energy consumption.
6. Simple & safe operation ,stable performance.

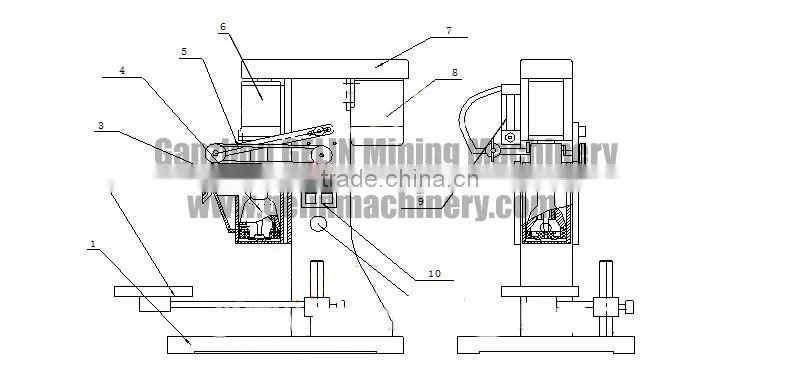

1. Base
3. The tank
5. Blade part
7. The cover
9. Flow meter
11. Blade switch
2. The carrier
4. Stir part
6. Spindle part
8. The motor
10. Switch controls
Before operation, check whether the main shaft turns clockwise. If not, then change phase sequence of the power source to make the motor turns clockwise before operation.
Mix mineral samples and water and then pour them into the cell. Start up the motor to drive the main shaft for rotation. The impeller will agitate in the cell. Then open the valve for air inflation and add chemical agent to form foams. Turn on switch of the scraper motor (8) for rotation of the scraper to scrape foams out of the cell. A box is set on the working table to receive foams. Minerals needed can be obtained after processing of the foams.
- Container
40HQ/40GP/20GP
- Load Port
- Load Port
Xiamen ,Guangzhou, Shenzhen,Shanghai or at customers' request
- Disc Shredder
It is applicable to comminution of coal,bauxite and other materials in labs of mine
- Double Roller Crusher
It is applicable on mining, metallurgy, geology, construction materials, research unit laboratory sample crushing.
- Lab Flotation Cell
It is provided for flotation of minor ore samples in labs of geological,metallurgical,chemical and other industries.
- Lab Jaw Crusher
It is used for crushing various hardness material.
- Laboratory Jigger
It is one of the methods for concentrating minerals based on differences gravity.
- Lab Shaking Table
It is applicable for separations of fine-grained and micro-grained rare metal, ect.
- Lab Spiral Chute
It is the concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.
- magnetic separator tube
Determining the magnetic content in products obtained from heavy media processes
- Lab Ball Mill
It is a lab grinding equipment for wet fine grinding of ore
- XCRS magnetic separator
is mainly used in metal mineral processing laboratory, It uses wet method magnetic separation on fine-grained strong magnetic minerals, the separation form is cocurrent.
- XMGB wrok index ball mill
It is used mainly to measure the grinding work index of materials such as various ores, slag, etc.
- Triple Grinding Miller
It is a kind of grinding equipment which mill and analyze samples through dry grinding.
Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.
Experienced mining machinery manufacturer
Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
--- PRE-SALE SERVICE ---
1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients’ demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
Welcome you visit our factory in your free time!
