Specifications
cast tungsten carbide welding rods from zhuzhou factory1. Endurable
2. High wear resisitance
3. Good price
Tungsten carbide welding rod/YD welding rod/tungsten carbide composite rod
Why choose us?
Zhuzhou Better Tungsten carbide company is an export focused manifacture based in Zhuzhou City, where is called"town of tungsten carbide".
ZZBetter started tungsten carbide business from 2000, to now it has been 14 years. With good social relation and good reputation in Zhuzhou carbide field, we are a leading export company in Zhuzhou city.
Our faith is: growing up with our customers!

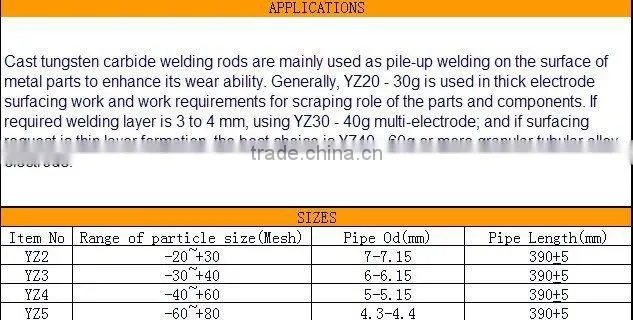

Description of cast tungsten carbide welding rod
Cast tungsten carbide welding rods are mainly used as pile-up welding on the surface of metal parts to enhance its wear ability.
Generally, YZ20 - 30g is used in thick electrode surfacing work and work requirements for scraping role of the parts and components.
If required welding layer is 3 to 4 mm, using YZ30 - 40g multi-electrode; and if surfacing request is thin layer formation, the best choice is YZ40 - 60g or more granular tubular alloy electrode.
SIZES
| tem No | Range of particle size(Mesh) | Pipe Od(mm) | Pipe Length(mm) |
| YZ2 | -20~+30 | 7-7.15 | 390+5 |
| YZ3 | -30~+40 | 6-6.15 | 390+5 |
| YZ4 | -40~+60 | 5-5.15 | 390+5 |
| YZ5 | -60~+80 | 4.3-4.4 | 390+5 |
Application
- Thoroughly clean the base metal.
- Lightly heat base material then apply flux. A little heat before applying powdered flux helps it stick to the base material, as the torch has a tendency to blow the flux away.
- Gently heat the base material to melt flux, observe its coverage and correct any bare spots.
- Applying a coating of Tungchip Tinning Rod can assist in the adhesion of the Composite Rod to the base material. The tinning rod can also be used to fill voids and give a smooth appearance if required.
- Heat base material until it just begins to turn red. At this point begin applying rod to base material. The Tungchip Tinning Rod should flow onto the base material. If the Tungchip Tinning Rod balls up, it is not hot enough. Adversely, if the Tungchip Tinning Rod runs across the base material it is too hot. Care must be taken to maintain the proper temperature of the base material during application.
- Composite Rod is sluggish and does not flow easily. How it flows can vary considerably, depending on the size and percentage of the Tungchip Tungsten Carbide Grit in the rod. Explanation of the exact technique for application is difficult but certain general advice can be given. Work slowly and gently with as little heat as possible. Allow the Composite Rod to precede the torch rather than follow it. If necessary use the rod as a pushing, packing and smoothing tool while applying just enough heat to melt the matrix. It would probably be beneficial for the beginner to practice on a scrap piece of steel before tackling the actual parts to be hardfaced. With practice good coatings can easily be made.
