Home > Products > 8.Welding material > tungsten carbide electrode
tungsten carbide electrode
- 40 Ton / Tons per Month
- Any port in china
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hunan, China | Brand Name: | zzbetter | Model Number: | tungsten carbide electrode |
Material: | Tungsten | Length: | 150mm,175mm | Operating Current: | standard |
Welding Current: | standard | Operating Temperature: | standard | Diameter: | 1mm~10mm |
Application: | welding of aluminum, magnesium, and their alloy . |
Product Description
Specifications
tungsten carbide electrode1.OEM service
2.Trial order accept
3.Timely feedback
4.minimum ratio of burn
tungsten carbide electrode
1.Descritption and usage of tungsten carbide electrode
tungsten carbide electrode is our traditional and advantages product . In recent years, Zhuzhou better began to the tungsten electrode product research and development, While unceasingly optimizes the cerium tungsten, the thorium tungsten, the pure tungsten and so on ordinary electrode production craft, our factory centralized scientific research strength, successively researches and develops the cerium tungsten electrode, lanthanum tungsten electrode, zirconium tungsten electrode, yttrium tungsten electrode and so on, receives the market widespread
2.Types of tungsten carbide electrode
Diameters: 1.0mm-10.0mm
Length: 150mm, 175mm
We also accept orders of special specification tungsten carbide electrode.
Type | Diameter | |||
| .040" (1.0mm) | 1/16" (1.6mm) | 3/32" (2.4mm) | 1/8" (3.2mm) |
Pure Tungsten | TP-7040 | TP-7116 | TP-7332 | TP-718 |
2% Thoriated | TT2-7040 | TT2-7116 | TT2-7332 | TT2-718 |
2% Ceriated | TC2-7040 | TC2-7116 | TC2-7332 | TC2-718 |
2% Lanthanated | TL2-7040 | TL2-7116 | TL2-7332 | TL2-718 |
Amperage - AC | 20-30 | 30-80 | 60-130 | 120-200 |
Amperage - DC | 15-50 | 50-120 | 80-150 | 130-250 |
3. Application for tungsten carbide electrode
1. Tungsten electrodes are used when arc welding with the Tungsten Inert gas (TIG) process or when plasma welding.
2. In both processes the electrode, arc and weld pool are protected from atmospheric contamination by an inert gas.
3. A tungsten electrode is used because it can withstand very high temperatures with minimal melting or erosion.
4. Tungsten electrodes are made by powder metallurgy and are formed to size after sintering.

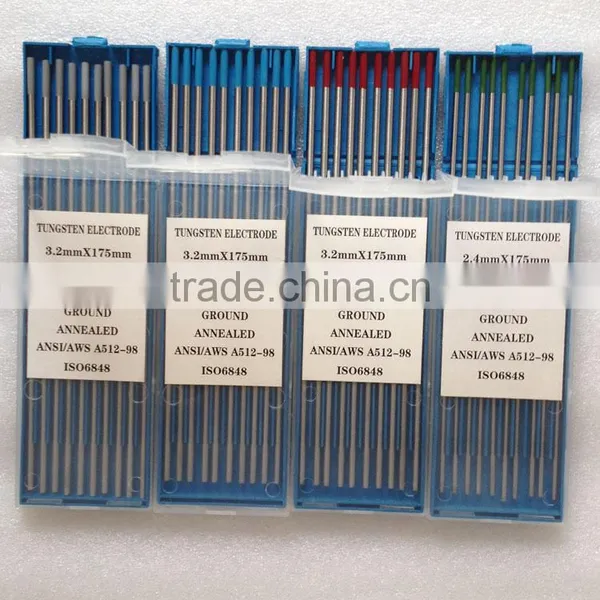

Packing of tungsten carbide electrode:
Ten pcs in a plastic box, then into carton or wooden.
