dia7.14 size cemented tungsten carbide waterjet nozzle for cutting purpse
Description of the carbide water jet nozzle abrasive
1. Use life: more than 150h for cutting steel, for soft material can even last to 300 hours, 10%-20% longer than exported carbide nozzles.
2. Price: 66.85USD/PC, price 30% lower than exported carbide water jet nozzle.
3. Density: 15.76g/cm3
4. Hardness: 98HRA, the highest hardness can reach in China
5. TRS: 2400MPA
6. Grain size: 0.4u
Grades suitable for tungsten carbide nozzles
| Grade | Density(g/cm3) | Hardness(HRA) | TRS(MPa) | Applications recommended |
| YG6X | 14.95 | 91.5 | 1800 | For drawing steel and nonferrous wires or bars of less than D6.00mm under not so much stress. |
| YG6 | 14.95 | 90.5 | 1900 | For drawing steel, nonferrous alloy bars of less than D20.00mm under more stress and also for drawing tubes of less than D10.00mm. |
| YG8 | 14.8 | 89.5 | 2200 | For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. |
| YG10 | 14.5 | 88.5 | 2400 | |
| YG15 | 14 | 87 | 2800 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
Drawing of the tungsten carbide nozzles
Abrasive Waterjet Cutting Nozzles Sizes available:

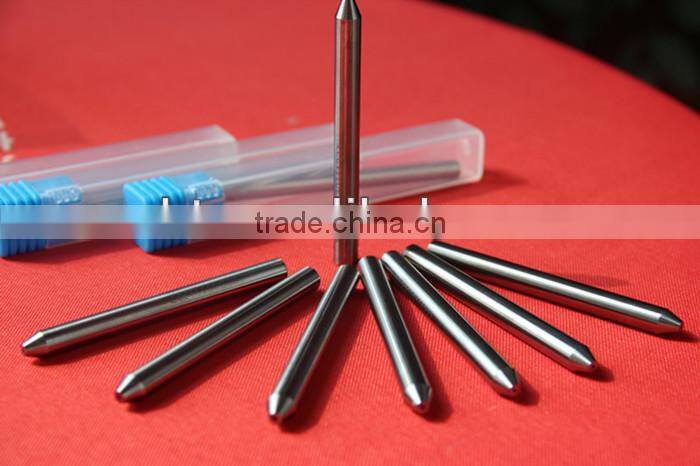

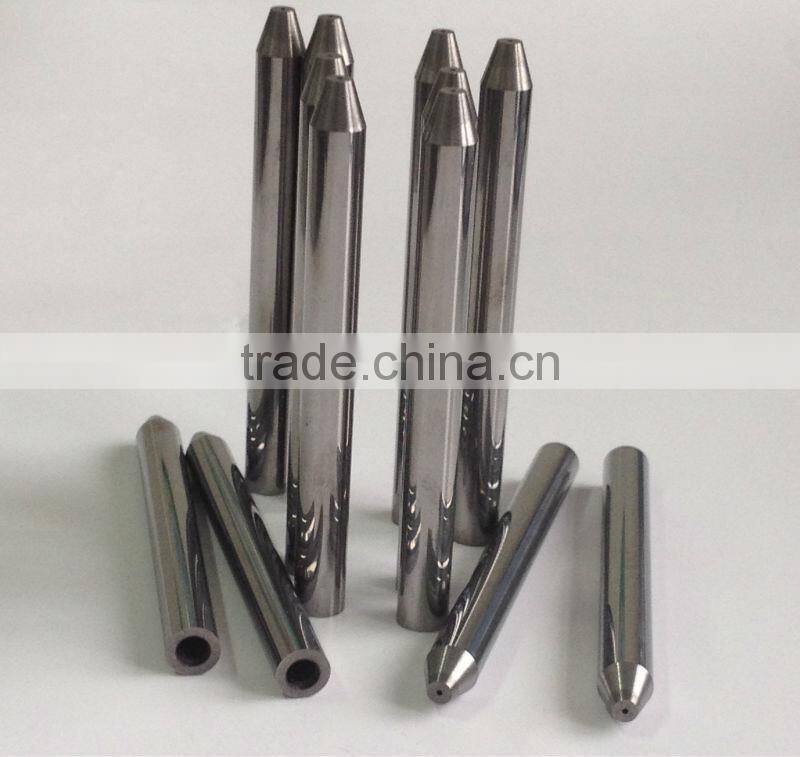

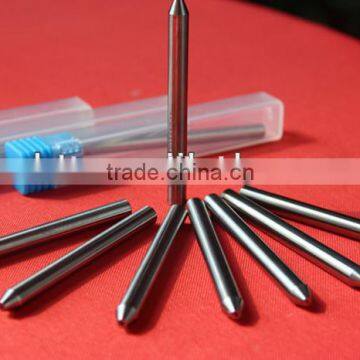

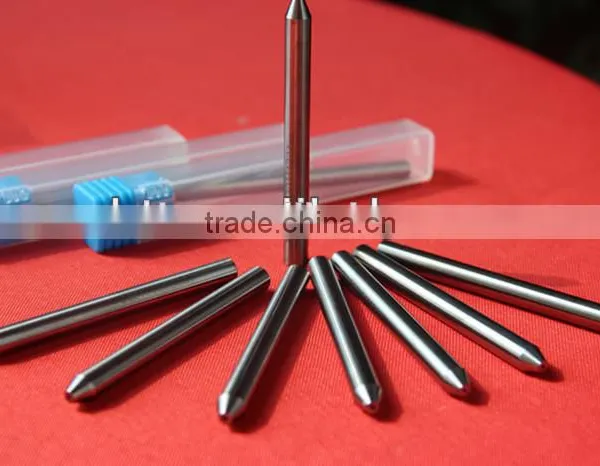

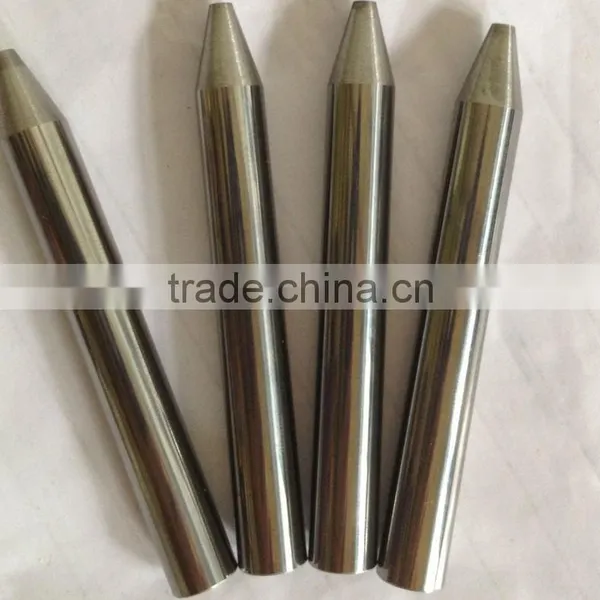

Displaying of the carbide nozzles

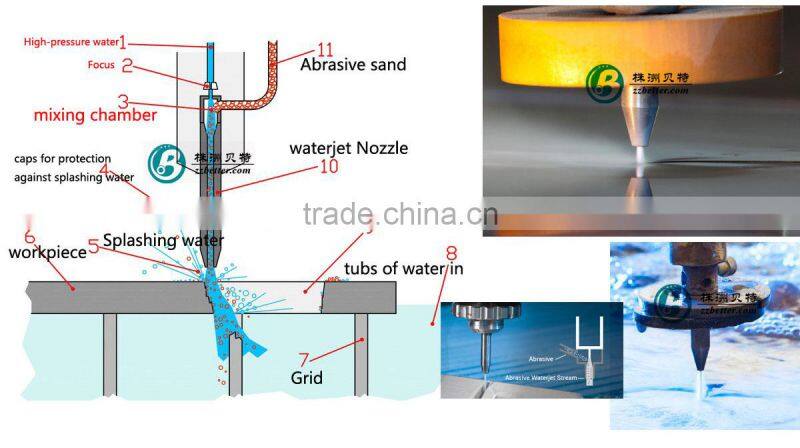

Application of the tungsten carbide waterjet nozzles:

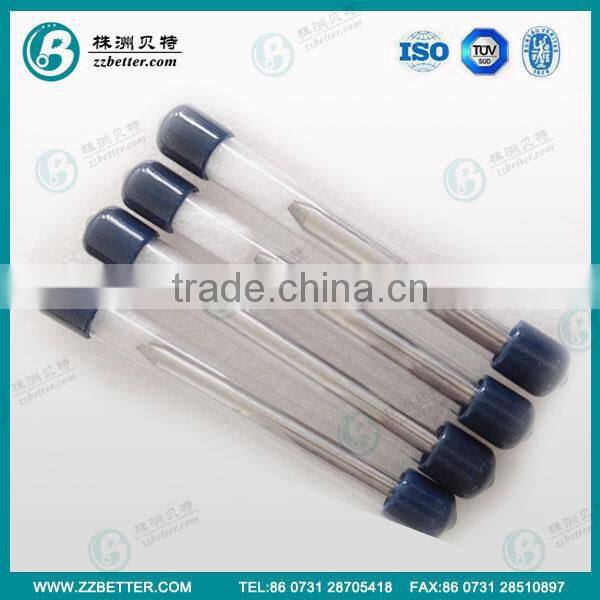

Packing of the nozzle

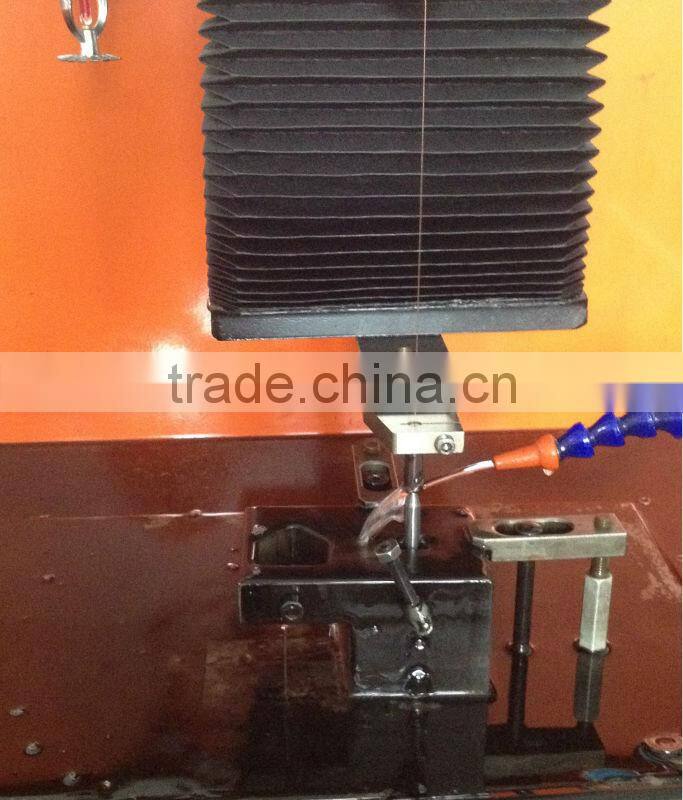

Production Flow Chart
Choose our carbide water jet nozzles, we won't let you down.
