SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles

SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles thumbnail-1
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles thumbnail-2
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles thumbnail-3
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles thumbnail-4
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles thumbnail-5
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles photo-1
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles photo-2
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles photo-3
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles photo-4
SAPI Silicon Carbide Bullet Prood Plate Silicon Carbide Ceramic Tile SIC Ceramic Armour Tiles photo-5
US$ 25 - 35 MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
SILICON CARBIDE AND BORON CARBIDE CERAMIC BULLET RESISTANT PANELS
Model Number:
SILICON CARBIDE AND BORON CARBIDE CERAMIC BULLET RESISTANT PANELS
Contact Supplier Request Quote Chat Now
Zhuzhou Better Tungsten Carbide Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
all mainland ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name SILICON CARBIDE AND BORON CARBIDE CERAMIC BULLET RESISTANT PANELS
Model Number SILICON CARBIDE AND BORON CARBIDE CERAMIC BULLET RESISTANT PANELS

SIC ceramic tiles SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles



Brief introduction of bulletproof ceramic tiles:

Bulletproof ceramic tiles mainly made of two materials: silcion carbide and boron carbide. All these two materials can make light weight bulletproof plate for millitary and anti-riot police. ZZBETTER mainly offer two levels of bulletproof ceramic tiles, that is NIJ III and NIJ IV level. Both level can protect human body from Riffle gun shooting.



Advantages of SIC ceramic tiles hard armour bulletproof plate tiles B4C antibullet plate

1. High temperature tolerance

2. Wear risistance

3. Corrosion resistance

4. High bending strength



SILICON CARBIDE AND BORON CARBIDE CERAMIC BULLET RESISTANT PANELS features:

Silicon Carbide Plate has superior characteristic such as wear resistance, corrosion resistance,

high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time service life.



item

unit

data

temperature of application

C

1380

density

g/cm3

>=3.05

open porosity

%

<0.1

bending strength

Mpa

400-580

modulus of elasticity

Gpa

380-410

thermal conductivity

W/m.k

102.6

coefficient of thermal expansion

10-6/°C

4.02×10

rigidity



13

acid-proof alkaline



Excellent



Main levels of bullet to be prevent by the bulletproof ceramic tiles

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles



Comparison of silicon carbide hard armour plate ceramic tiles and Boron carbide hard armour ceramic plate tiles:

Item

SiC

B4C

Density

3.1g/cm3

2.4-2.65g/cm3

Hardness

HV2750

HV3300

Bending strength

380 MPa

400-650 MPa

TRS

2970 MPa

3500 MPa

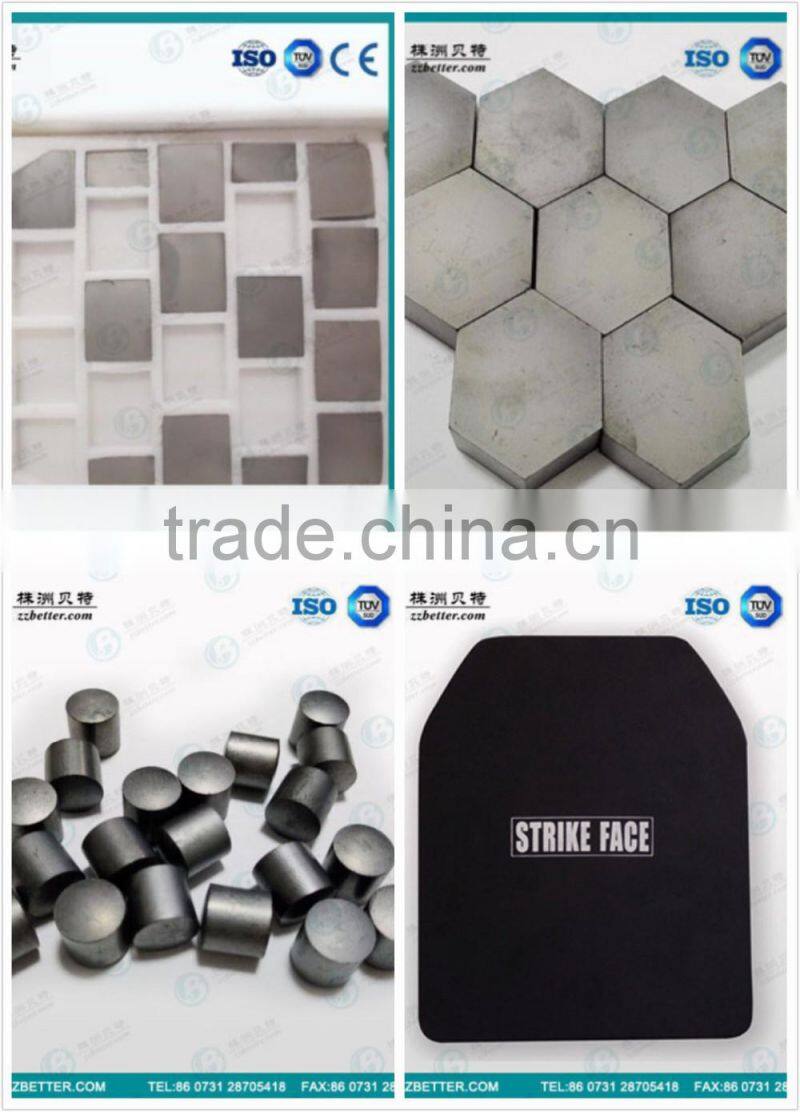

Size of bulletproof ceramic tile: dia10*H10 for NIJ IV level armour plate insert

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

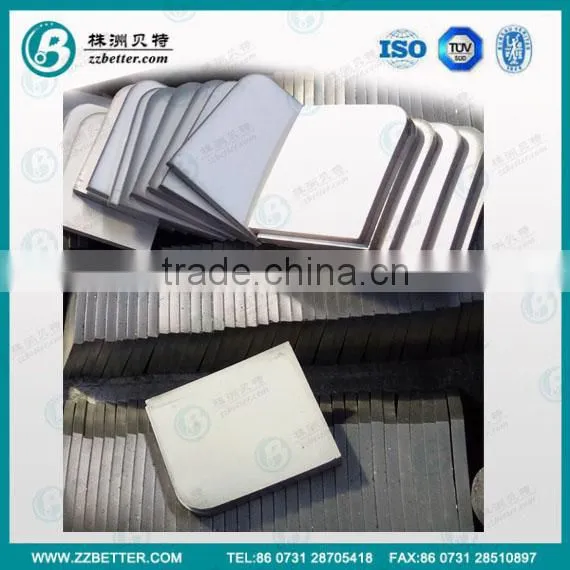

Ceramic bulletproof tile size: 50*50*R400

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

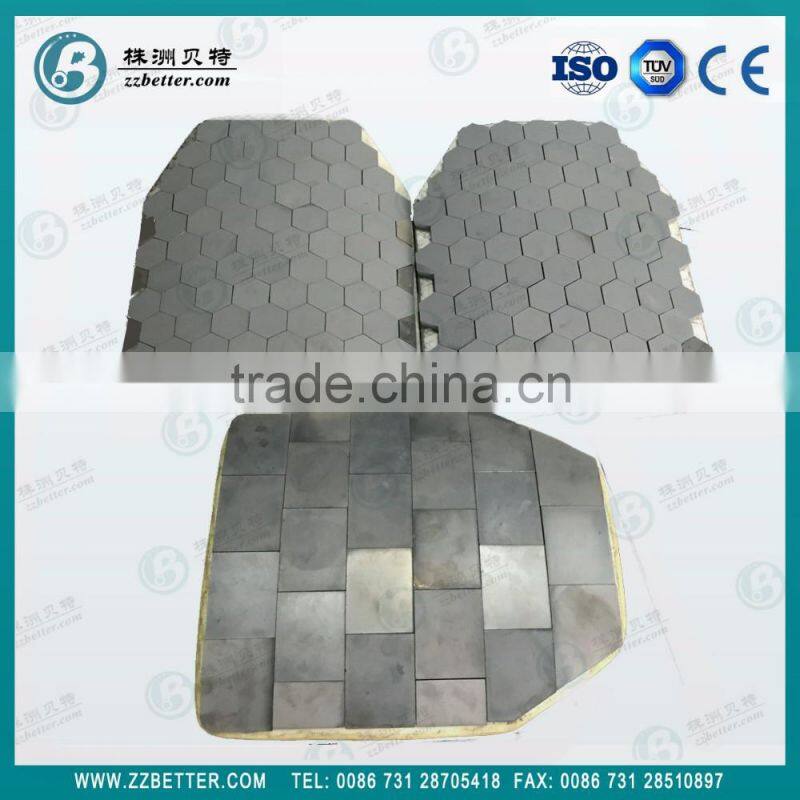

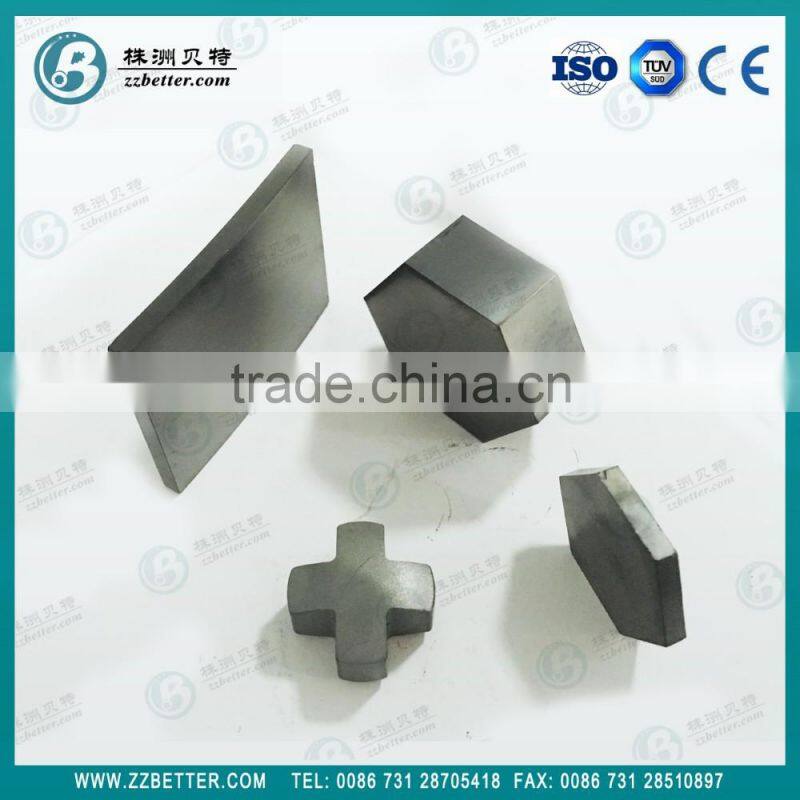

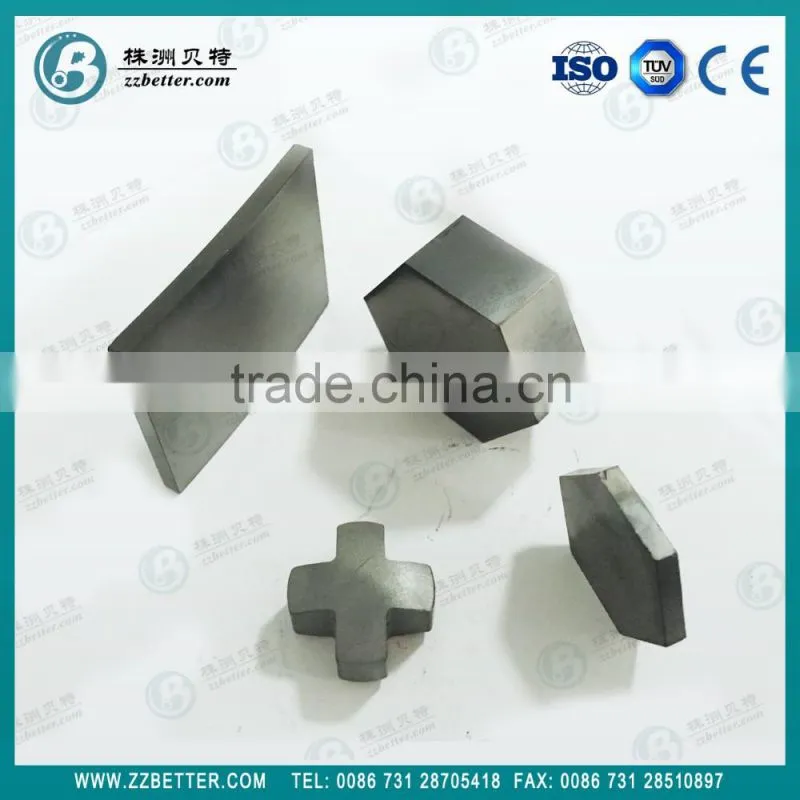

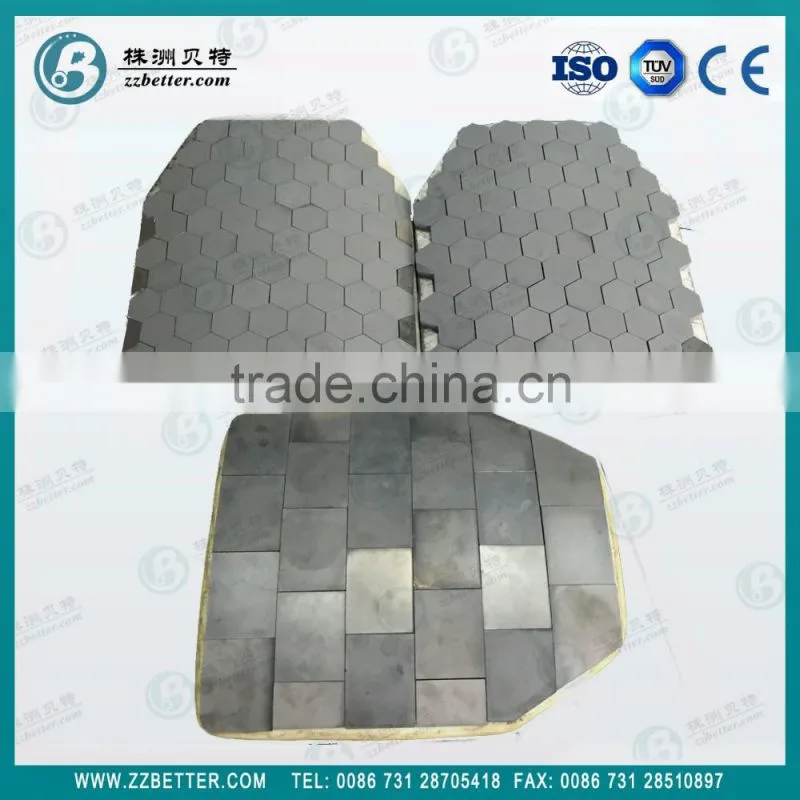

Customized silicon carbide ceramic tiles for bulletproof using

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tilesSAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

 SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tilesSAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles



Production and plant overview for the bulletproof ceramic tiles:

SAPI silicon carbide bullet prood plate silicon carbide ceramic tile SIC ceramic armour tiles



Welcome to contact Zoe for more information about the ceramic tiles for bulletproof armour inserts!
