Extruded Ceramic Carbide Rods With Holes

Extruded Ceramic Carbide Rods With Holes photo-1

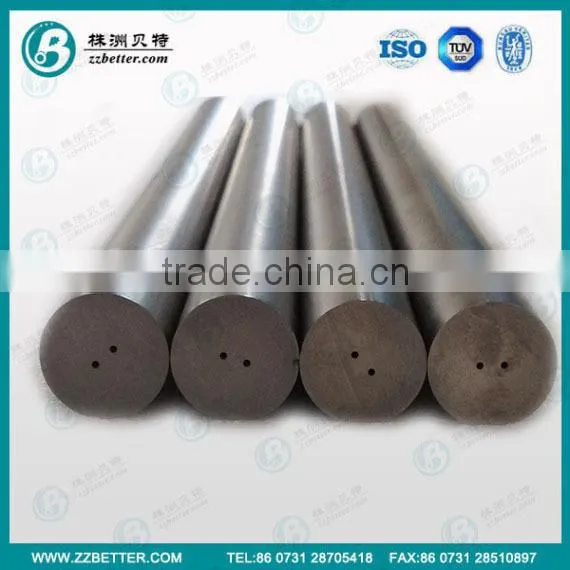

Extruded Ceramic Carbide Rods With Holes photo-2

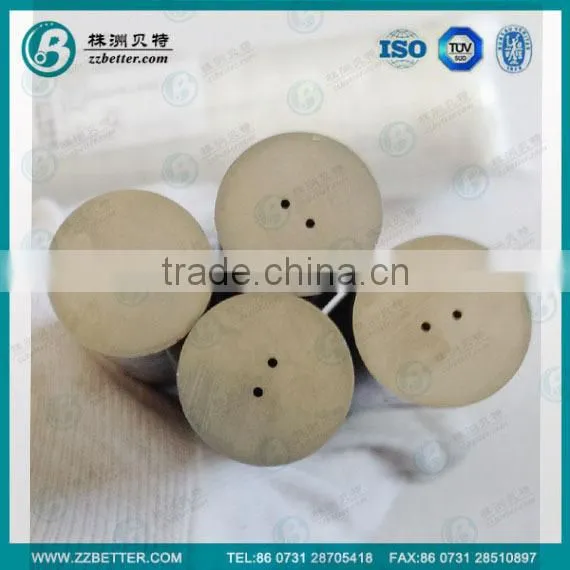

Extruded Ceramic Carbide Rods With Holes photo-3
Extruded Ceramic Carbide Rods With Holes photo-4

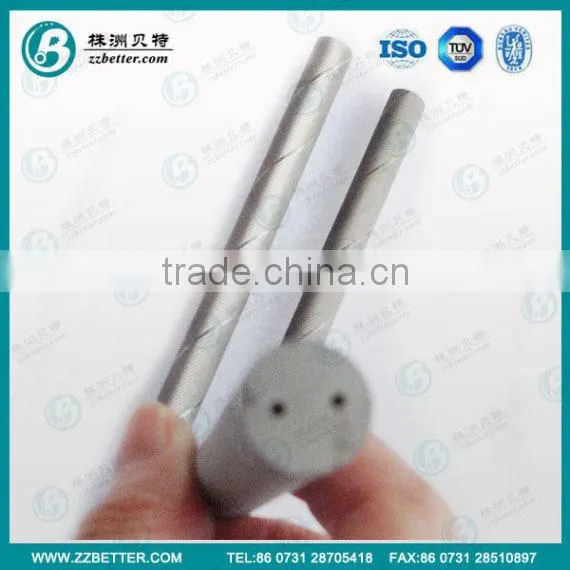

Extruded Ceramic Carbide Rods With Holes photo-5

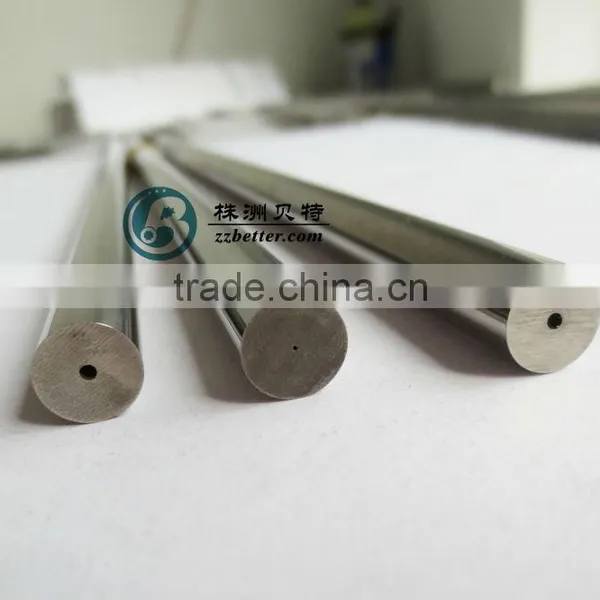

Extruded Ceramic Carbide Rods With Holes photo-6
US$ 20 - 50 MOQ: 5 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
ZZBT
Model Number:
extruded ceramic carbide rods with holes
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name ZZBT
Model Number extruded ceramic carbide rods with holes
Application For end mill
Shape round bar
Material Ceramic carbide/cermet/ceramet
Dimensions dia range is 0.3mm~42mm
Chemical Composition Ceramic carbide/cermet/ceramet

                              Extruded ceramic carbide rods with holes





extruded ceramic carbide rods with holes  used for making the drill bits/  end-mills / reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, Horologe  processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can bu used for making of cemented carbide stamping head, Core bar and perforatioin tools.


Application:
1.For PCB drills, drills, end mills & hole drilling tools
2.For reamers
3.For mold punches
re pins



Grade and specification of extruded ceramic carbide rods with holes

GRADE
ISO CODE
COBALT CONTENT
DENSITY
HARDNESS
TRS


(%)
g/cm³
HRA
N/mm²
K10T
K05-K10
4.5-6.0
14.95-15.05
92.7
1800
YG8
K30
8
14.8
89.5
2200
YG6
K20
6
14.95
90.5
1900
YG6X
K10
6
14.95
91.5
1800
YL10.2
K30
10
14.5
91.8
2400
YG13X
K30-K40
13
14.3
89.5
2600
YG15
K40
15
14
87.5
2800





Our Advantage:


1) Size standard or as per your requirements;

2) Very advantageous price.

3/ feedback within 24 hours;

4/ good english communication;

5/ professional suggestion on product;

6/ good traning export sales person;

7/ skilled in tungsten carbide sell;

8/ could issue the C/O(certificate of origin)to customer to reduce the tax;

9/ could accept all payment terms of T/T, D/P, D/A, L/C, western union, paypal and etc;

10/ could accept trial order.

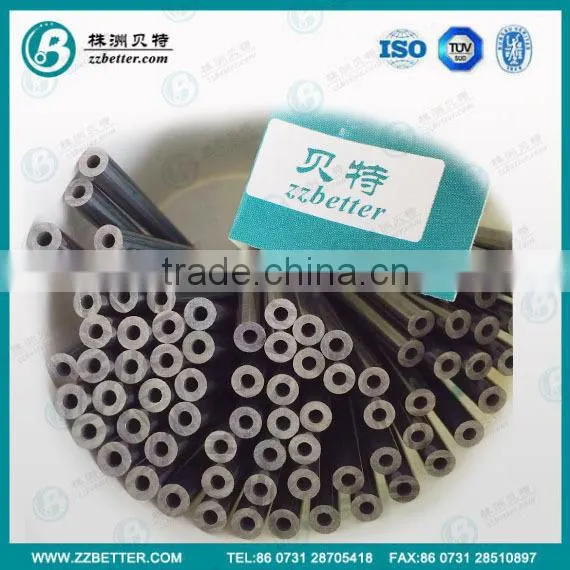

Many size available:

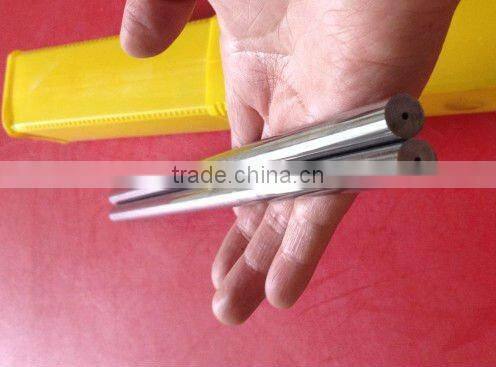

extruded ceramic carbide rods with holes







extruded ceramic carbide rods with holes





Finished hard alloy rod



  extruded ceramic carbide rods with holes

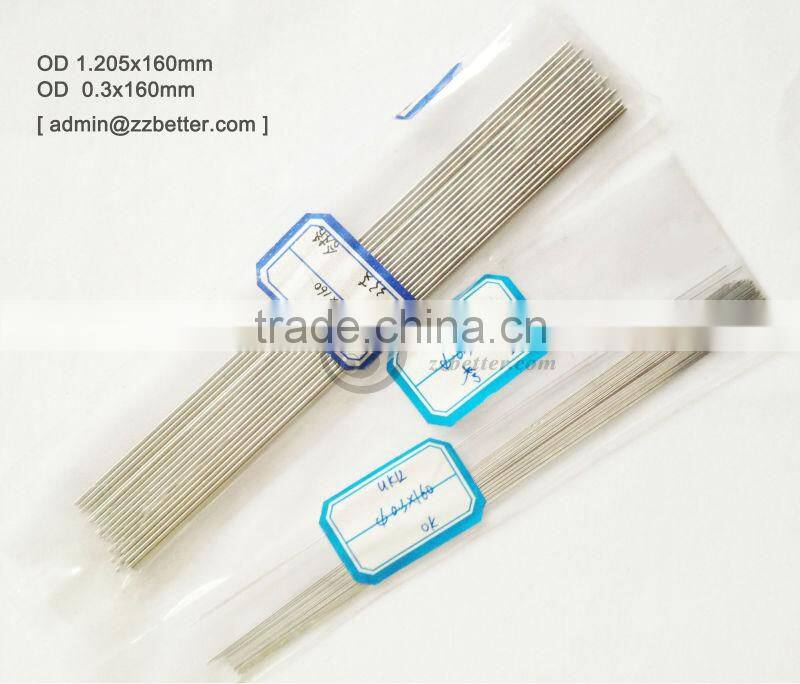

Our hard alloy rod diameter range is 0.3mm~52mm.





 extruded ceramic carbide rods with holes

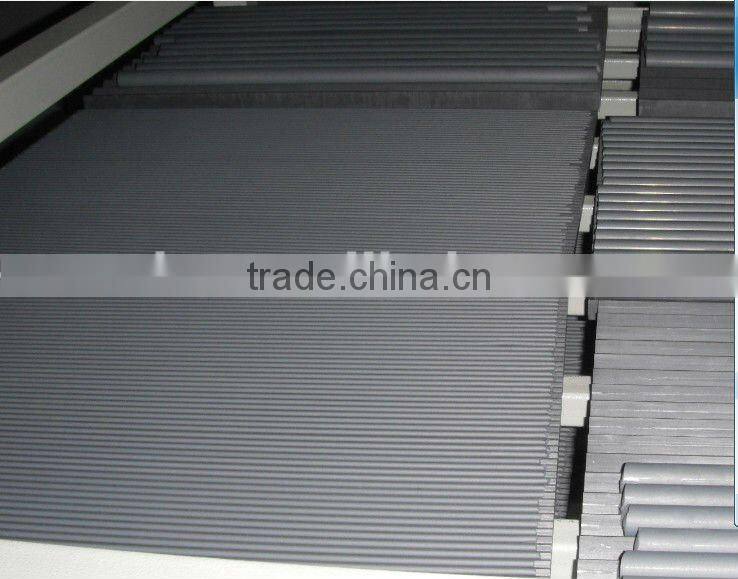

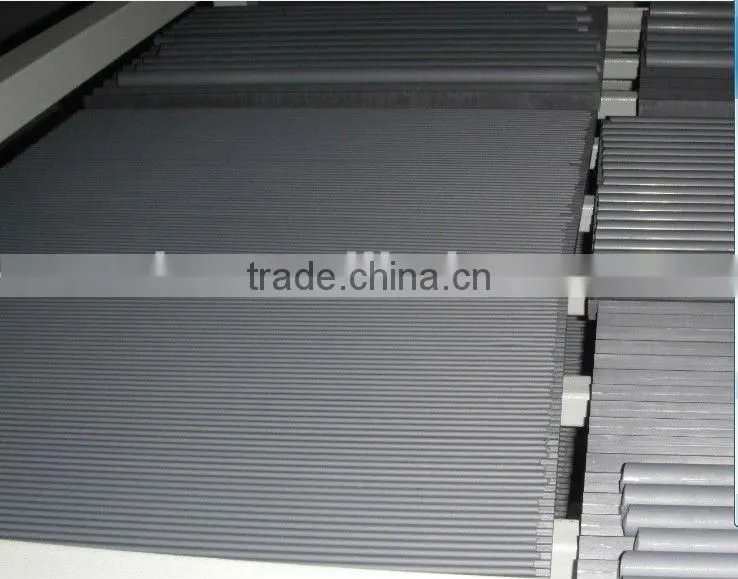

Our hard alloy rod before sintering.



extruded ceramic carbide rods with holes



Our hard alloy rod with one straight hole

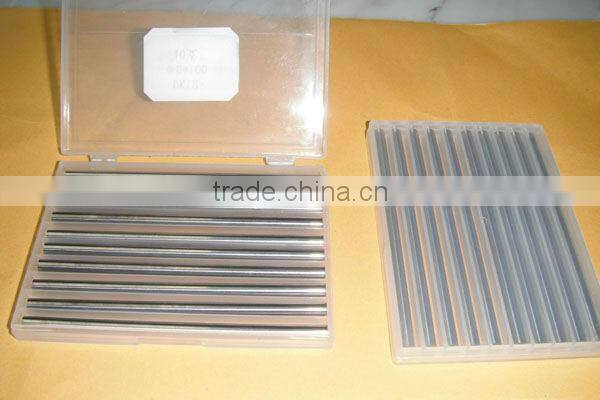

Package of ceramic carbide rod:  outer carton box and inner plastic box, paper box.
