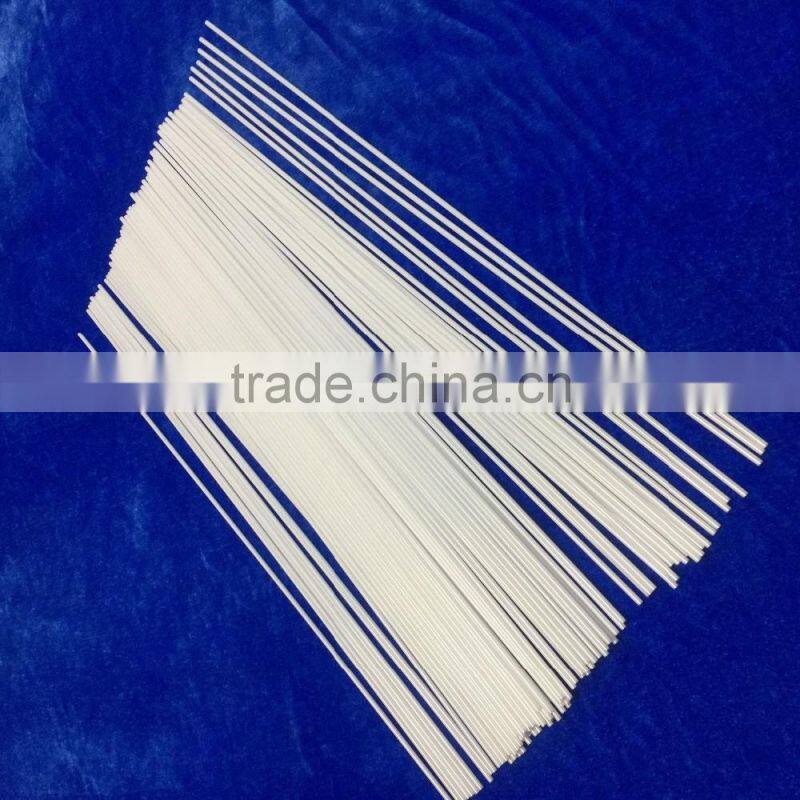

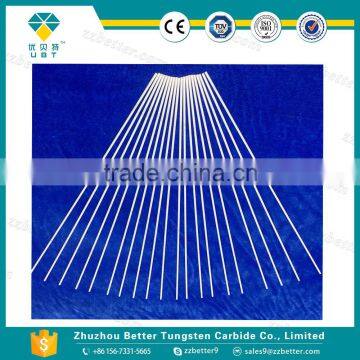

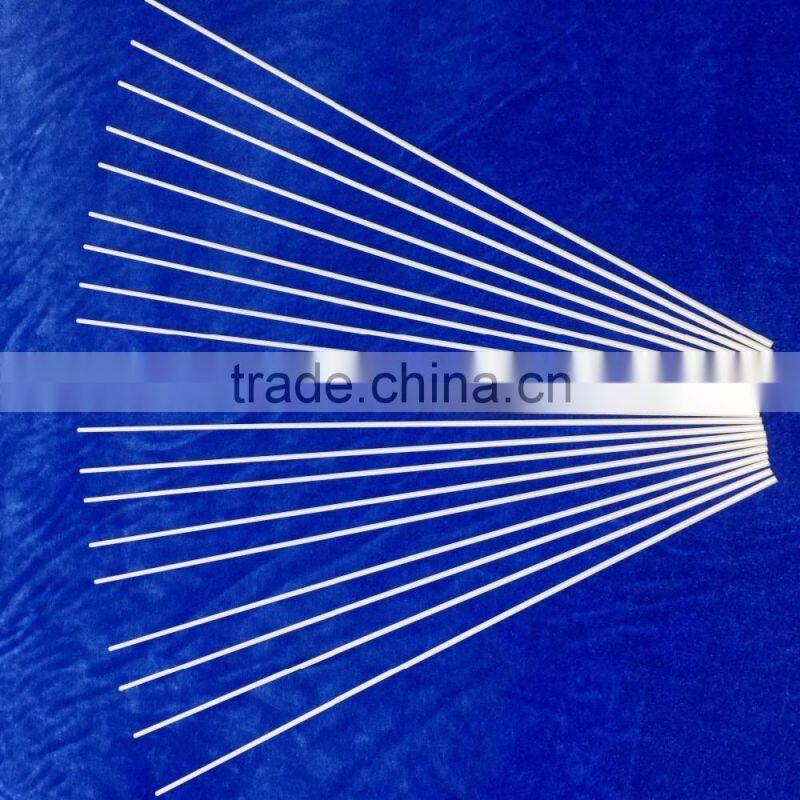

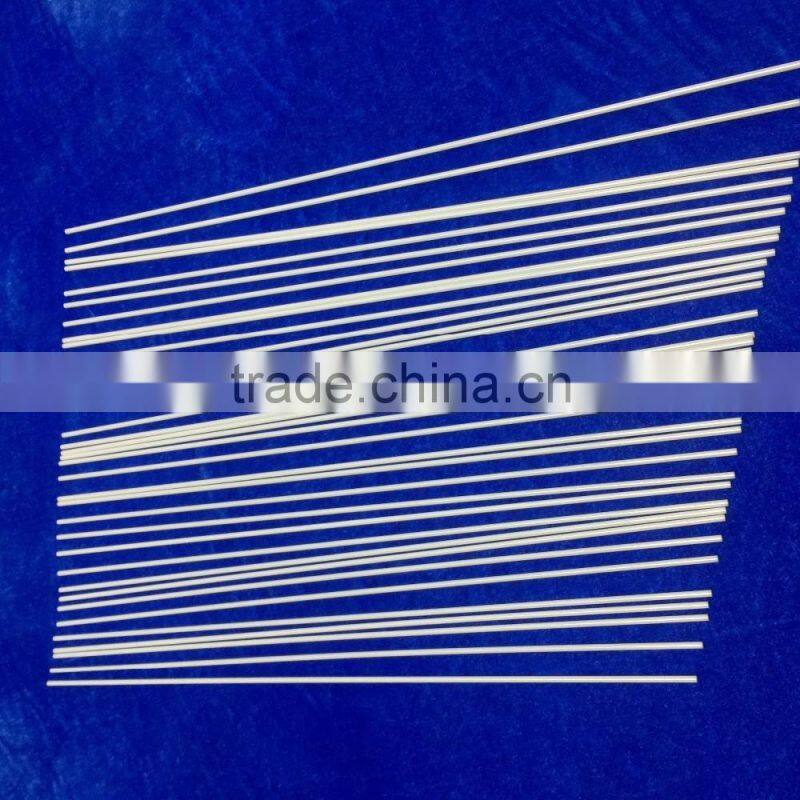

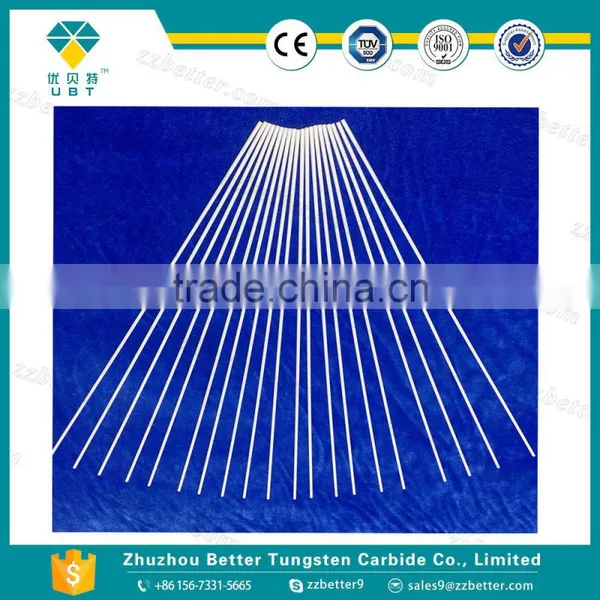

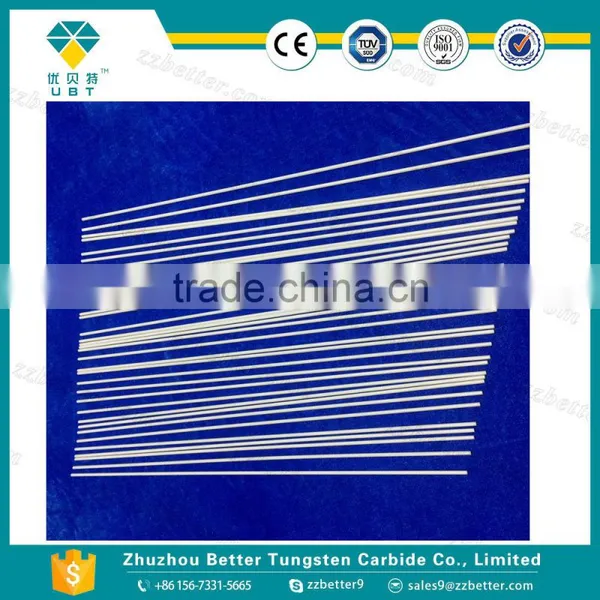

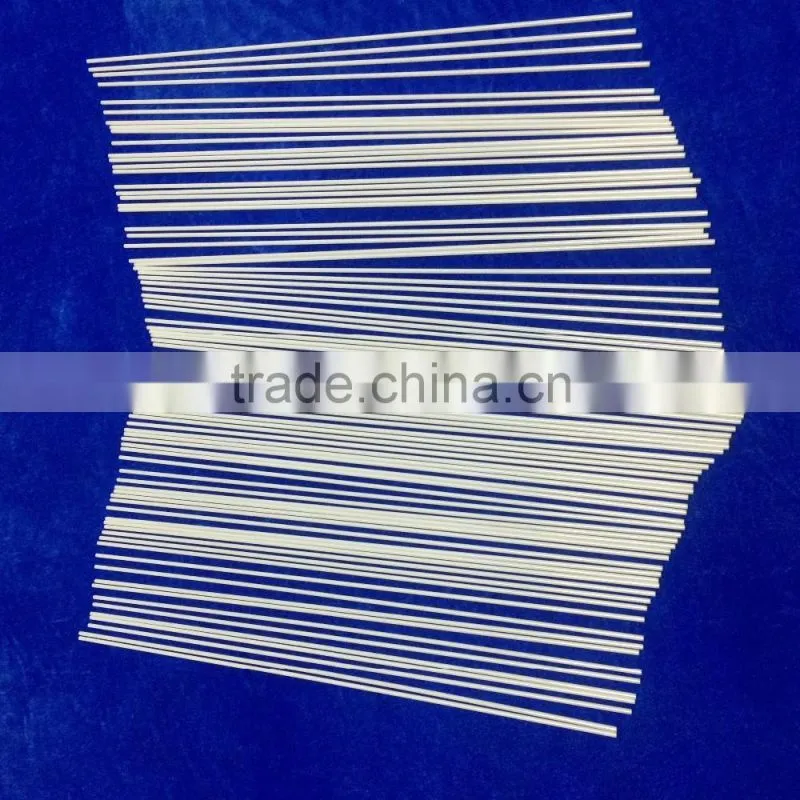

Cermet Zirconia rods
Use temperatures up to 2400°C
High density
Low thermal conductivity (20% that of alumina)
Chemical inertness
Resistance to molten metals
Ionic electrical conduction
Wear resistance
High fracture toughness
High hardness
Performance of Zirconia rods
Zirconia ceramic are used in shaft , plunger, high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. | |||
Zirconia ceramics performance |
Density |
g/cm3 |
6.05 |
Water absorption |
% |
<0.05 |
|
Firing temperature |
°C |
1550 |
|
Hardness |
HV |
1350 |
|
Bending strength |
MPa |
950 |
|
Compression strength |
Mpa |
25000 |
|
Breaking tenacity |
Mpa·m1/2 |
6-8 |
|
Hot expansion coefficient |
/°C |
9.5x10-6 |
|
Processing technology | |||
Process range (mm) | |||
Outside Diameter |
1---300 |
||
Inside Diameter |
0.5---300 |
||
Length |
0.5---800 |
||
Accuracy of working (mm) | |||
Perpendicularity |
0.01 |
||
Concentricity |
0.01 |
||
Roundness |
0.005 |
||
Straightness |
0.005 |
||
Parallelism |
0.01 |
||
Planeness |
0.005 |
||
Roughness |
0.05 |
||
Fit clearance |
0.005 |
||
Know about Zirconia rods:
Specification :
Zirconia (ZrO2) is a unique advanced ceramic. Products manufactured from zirconia powder exhibit superior mechanical properties such as high strength and flexibility. Heat insulating properties and oxygen-ion conductivity indicate zirconia has potential for use in a wide variety of applications - everything from telecommunications to the new energy of the future and environmentally beneficial products.
Zirconia offers chemical and corrosion resistance to temperatures well above the melting point of Alumina. In its pure form crystal structure changes limit mechanical applications, however stabilized Zirconias produced by addition of Calcium, Magnesium or Ytrium Oxides can produce very high strength, hardness and particularly toughness. In addition the material has low thermal conductivity and is an ionic conductor above 600°C. This has lead to applications in oxygen sensors and high temperature fuel cells.
Applications :
Electric appliance industry/Automotive industry/Mechanical industry
Engineering industry/Electrical heating element industry/LED Lighting Industry
