Home > Industrial Equipment & Components > Cutter & Tongs > Turning Tool > Full Grades of TNMG160408-PM-YBC151 Inserts

Full Grades of TNMG160408-PM-YBC151 Inserts

Name: Full Grades of TNMG160408-PM-YBC151 Inserts
Brand: ZZBT/ZCC
SKU: 141623304
Availability: InStock

Full Grades of TNMG160408-PM-YBC151 Inserts thumbnail-1

Full Grades of TNMG160408-PM-YBC151 Inserts photo-1

US$ 5 - 20 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

ZZBT/ZCC

Model Number:

Full

Contact Supplier Request Quote Chat Now

Zhuzhou Better Tungsten Carbide Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

all mainland ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name ZZBT/ZCC

Model Number Full

Material Hard Alloy

Usage External Turning Tool

Coating Tian

Full grades of TNMG160408-PM-YBC151 inserts

Description of CNC carbide inserts

1. ZCC.CT brand

2. Type: TNMG160408-PM

3. Grade: YBC151, YBC152, YBC 252, YBC251, YBC351

4. Size: L:16.5, I.C: 9.525, S: 4.76, d: 3.81, r: 0.8

Specifications of CNC carbide inserts

YBC151	substrate with excellent wear-resistance, in combination with MT-Ti(CN), thick layer Al₂O₃TiN coating. It is an ideal grade for th finishing steel, cast steel and stainless steel under high speed and dry machining.
YBC251	Cutting edge with special strength and toughness, in an optimal combination with MT-Ti(CN), thick layer Al₂O₃, TiN coating. It is a suitable grades for a wide application. It is good for the finishing, semi-finishg and light roughing of steel, cast steel and stainless steel.
YGC351	Substrate with high strength and resistance against plastic deformation, in combination with MT-Ti(CN), thick layer Al₂O₃, TiN coating. It is suitable for light roughing and roughing stell, cast steel and stainless steel.
YBM151	Substrate with special structure, in combination with Ti(CN), thin layer AL2O3, TiN coating. With the resistance against diffusion wearness and plastic deformation, it is good for finishing and semi-finishing (turning as well as boring ) of stainless steel.
YBM251	Substrate with good toughness and strength, in combination with Ti(CN), thin layer AL₂O₃ TiN coating. It is a premium grade for semi-finishing to light roughing(turning and boring) of stainless steel at continuous and intermittent machining conditions.
YBM351	PVD TiN, TiAIN coated carbide grade with very good strength and impact resistance. It is suitable for roughing turning of stainless steels at low to moderate cutting speed or interrupted cutting, also for high cutting speed and heavy cutting in P30 area.

Applications of CNC carbide inserts

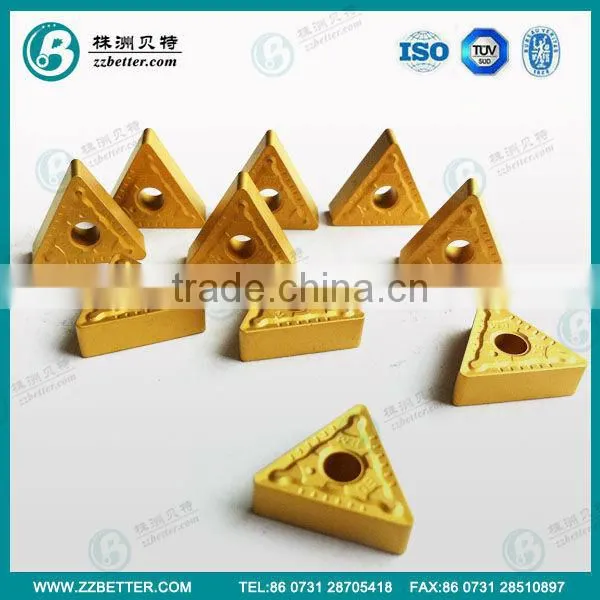

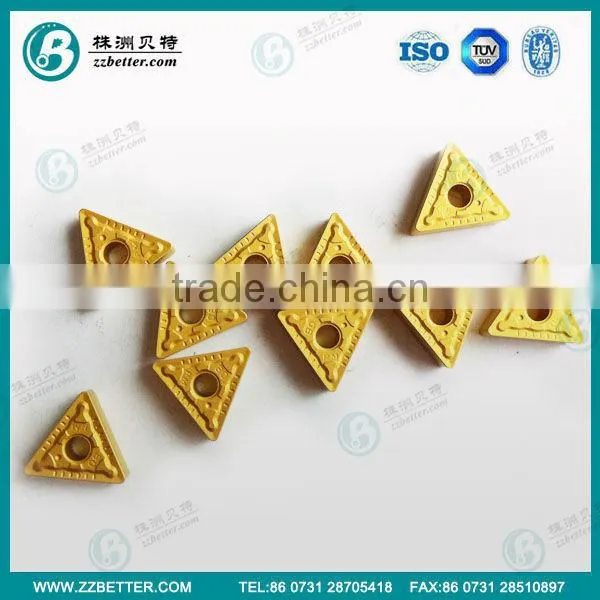

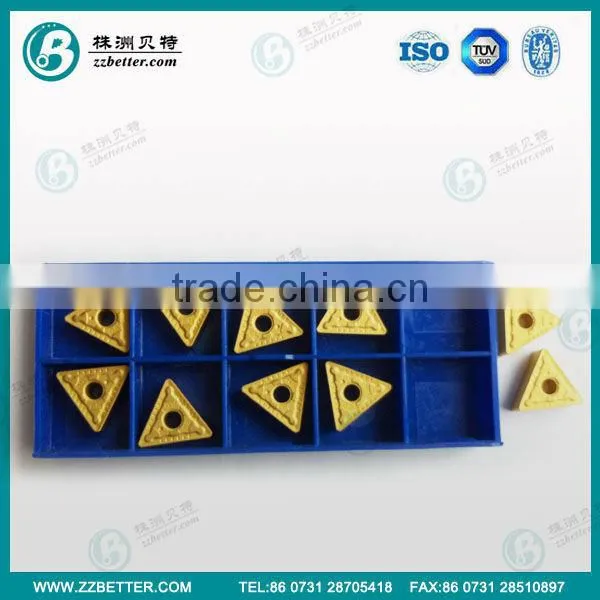

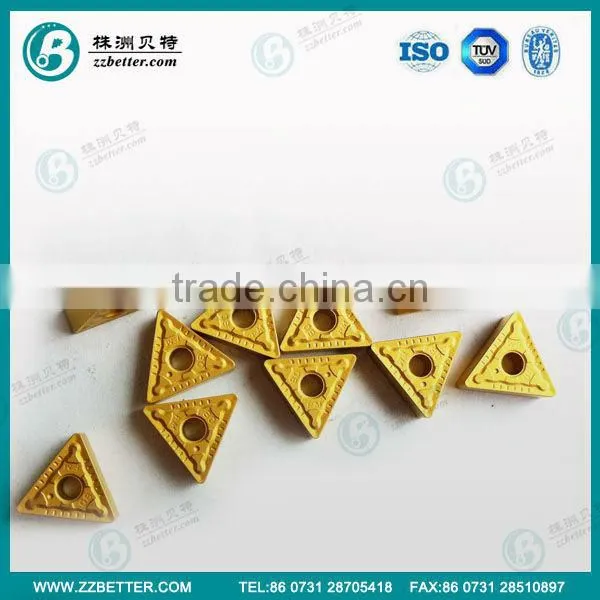

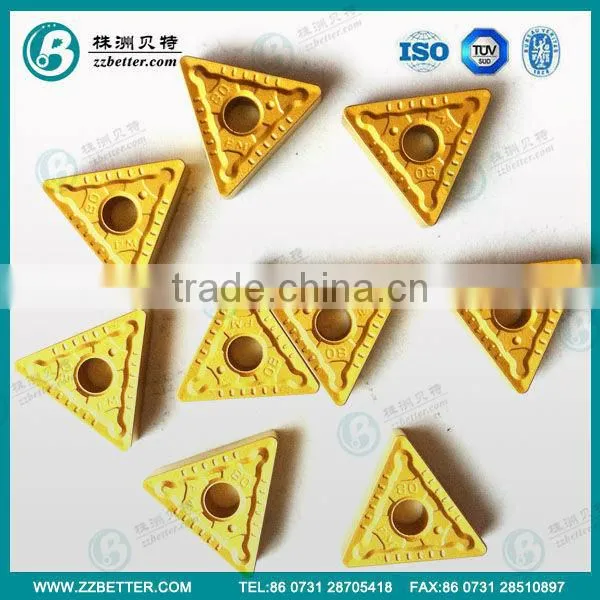

Pictures of CNC carbide inserts

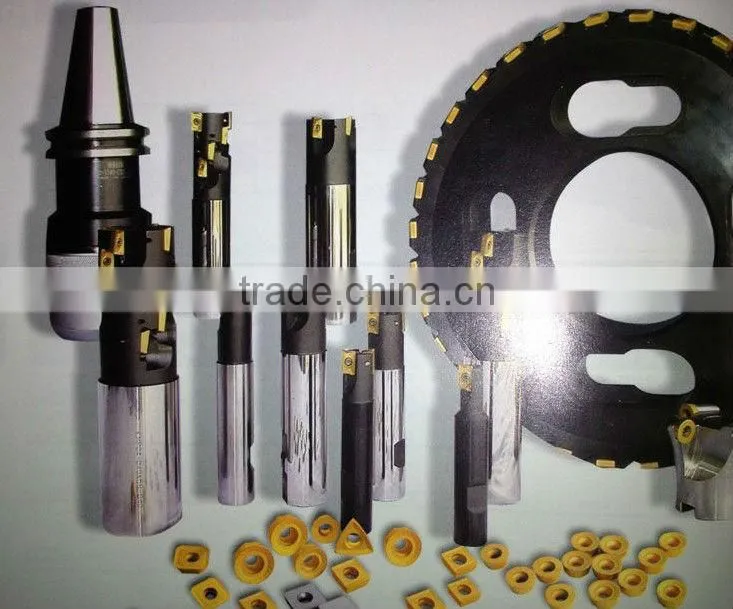

Other types of carbide cnc cutting tool

Packing

About Us

Zhuzhou Tungsten Carbide Co., Ltd is a leading company in this firld for about 10 years. We main to build long-term biz relationship with our customers by providing high qualiy and moderate price products. Our sincerity have been recognized by our custoemrs and enjoy good reputation among the market. We guarantee that the coorperation between us and our customers is win-win relationship.
