Tungsten Carbide CNC Inserts Mlling Inserts Turning Inserts Threading Inserts
US$ 1 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Zzbetter
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Superhard Milling Inserts RNMG120600 CBN Cermet Inserts From ChinaUS$ 26 - 30MOQ: 10 Pieces -
CBN Inserts 120700 Cermet Inserts for Cast Iron Engine HeadUS$ 25.5 - 35MOQ: 10 Pieces
-
CBN Milling Inserts Cermet Inserts CBN Insert With Tungsten Carbide BaseUS$ 24.2 - 30MOQ: 10 Pieces
-
Full Types of CBN Inserts /Cermet Insertsfor Carbide Rollers CBN Milling Inserts CBN Turning InsertsUS$ 10 - 50MOQ: 10 Pieces
-
Hardend Steel Use CBN Insert High Quality CBN Insert Cermet InsertsUS$ 28 - 35MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
Zzbetter
Model Number
Customized
Type
Power Tool Parts
Tungsten carbide CNC inserts mlling inserts turning inserts threading inserts
Classify of CNC inserts
1. Tungsten carbide turning inserts
2. Tungsten carbide milling inserts
3. Tungsten carbide threading inserts
4. Tungsten carbide parting and grooving inserts
5. CBN and PCD inserts
Advantages of our carbide products:
1. Excellent quality
2. Expert Manufacture
3.100% virgin material
4. Strict in-process and final inspection
5.ISO Certification
6. Free online technical service available
7. Produced with advanced equipments and process
8. Sample available
Cemented Carbide Inserts are known for being sharp and durable. They are wear-resistant, and can be used in a variety of industrial applications where extremely sharp cutting instruments are needed. For example, carbide blades are well suited to cutting reflective materials for plotting and sign making. Although prone to chipping and breakage, when these pitfalls are avoided with the proper engineering, tungsten carbide blades can sustain significant industrial stresses.
Kinds:
Other kinds can be offered by customers' requirements.
cnc turning inserts / cnc machine inserts / tungsten carbide inserts types
Other size can be offered by customers' requirements.(OEM or ODM acceptable)
cnc turning inserts / cnc machine inserts / tungsten carbide inserts grades
| Turning Grade | |
| YBC151 | substrate with excellent wear-resistance, in combination with MT-Ti(CN), thick layer Al2O3TiN coating. It is an ideal grade for th finishing steel, cast steel and stainless steel under high speed and dry machining. |
| YBC251 | Cutting edge with special strength and toughness, in an optimal combination with MT-Ti(CN), thick layer Al2O3, TiN coating. It is a suitable grades for a wide application. It is good for the finishing, semi-finishg and light roughing of steel, cast steel and stainless steel. |
| YGC351 | Substrate with high strength and resistance against plastic deformation, in combination with MT-Ti(CN), thick layer Al2O3, TiN coating. It is suitable for light roughing and roughing stell, cast steel and stainless steel. |
| YBM151 | Substrate with special structure, in combination with Ti(CN), thin layer AL2O3, TiN coating. With the resistance against diffusion wearness and plastic deformation, it is good for finishing and semi-finishing (turning as well as boring ) of stainless steel. |
| YBM251 | Substrate with good toughness and strength, in combination with Ti(CN), thin layer AL2O3 TiN coating. It is a premium grade for semi-finishing to light roughing(turning and boring) of stainless steel at continuous and intermittent machining conditions. |
| YBM351 | PVD TiN, TiAIN coated carbide grade with very good strength and impact resistance. It is suitable for roughing turning of stainless steels at low to moderate cutting speed or interrupted cutting, also for high cutting speed and heavy cutting in P30 area. |
| YBD051 | CVD coated, substrate can suffer from high temperature withougt thermoplastic deformation. It is best for finishing and semi-finishign machining nodualar cast iron, high intensity forgeable cast iron and grey cast iron. |
| YBD151 | Substrate with very good wear resistance, in combination with MT-Ti(CN), thick layer AL2O3, TiN coating. It is the first choice for medium to rough machining of cast iron,nodular cast iron and under high cutting speed. |
| YBM252 | PVD TiN, TiAIN coated carbide grade with very good toughness and wer resistance. It is good for finishing turning, boringand ligh milling of stainless steel as well as cast iron, stainless steel and alloyed cast iron. It can also be used for parting and grooving of steel (Low carbon content ) at a low or medium speed. |
| YBG201 | PVD TiN coated carbide grade with good toughness and wear resistance. It is good ofr threading and drilling (both peripheral and central inserts) low carbon of steel, stainless steel heat resistance steel and cast irons. |
| YB235 | Substrate with very good toughness, in combination with TiN and TiCN coating.Cutting edge with good security. Good for roughing under low moderate cutting speeds. It is suitable for turning, milling,bornning and drilling (with perpheral insert) of steel, austenitic stainless steel and casting steel,. Mainly used for P40 and M35 material. |
| YC10 | Carbide grade with high hardness and good toughness, suitable for fine and semi-finishing machining of steel and cast steel, also suitable for copying turning. |
| YC40 | Carbide grade with excellent toughness and wear resistance, is suitable for the heavy duty cutting of steel and cast steel. |
| YD101 | Carbide grade with fine size grain. Good for fine and semi-finishing machining of cast iron and nonferrous metal. Particularly for machining of Aluminum. |
| YD201 | Carbide grade with wear resistance and toughness. Suitable for roughig and semi-finishing machining of cast iron and heart-resistant alloys, nonmetallic materials such as plastic, wood specialloy used in aviation industry with sharp deges inserts. Medium cutting speed and a big feed rate is recommended. |
| YNG051 | TiCN based cermet, improves chemicstability and wear-resistant. Using with sharp cutting dege and chip-breaker, it can be got good surface quality whether under conditions of high speed or low speed. It is suitable for finishing machining steel, stainless steel and cast iron. |
| YNG151 | Ticn based cermet, with better toughness than YNG051, fine resistant thermoplastic transmutation and resistant built-up. It is suitable for semi-finishing and finishing machining steel, stainless steel and cast iron. |
| YCB011 | PCBN-tipped with very high hardness and high heat stability under about 1300°C of the cutting temperature,.It's mainly suittable for machining hardnened steels of HRC50-60(e.g.carbon tools steels, ball bearing steels, die tool steels and high speed steels etc), gray cast iron cold hard cast irons and Ni-, Co-, Cr-, or Fe- based high temperature alloys. |
| YCD011 | PCD tipped inserts with high hardness, good wear-resistance, low friction and heat conductivity. It is mainly suitable for machining non-ferrous metals(E.G.Cu, Al,-allys with high Silicon.) and non-metal materials(e.g.glass fiber, ceramics, reinforced plastic etc). |

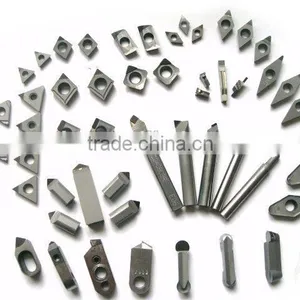

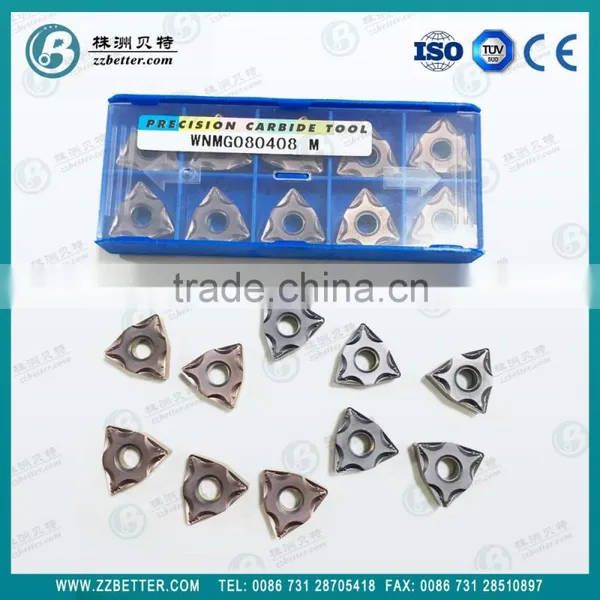

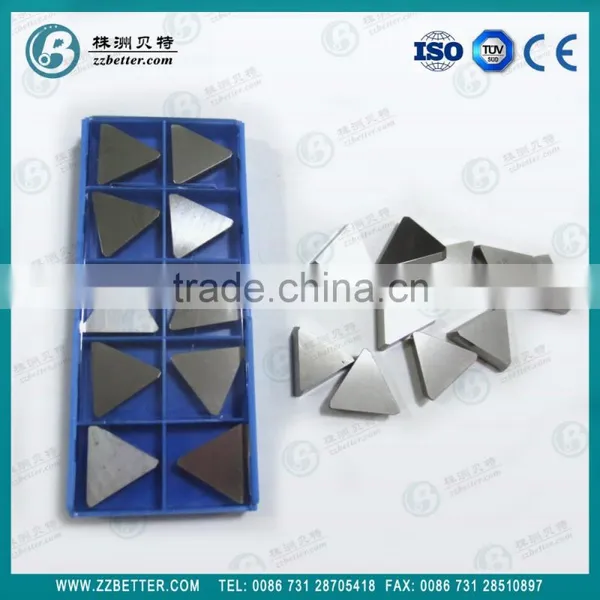

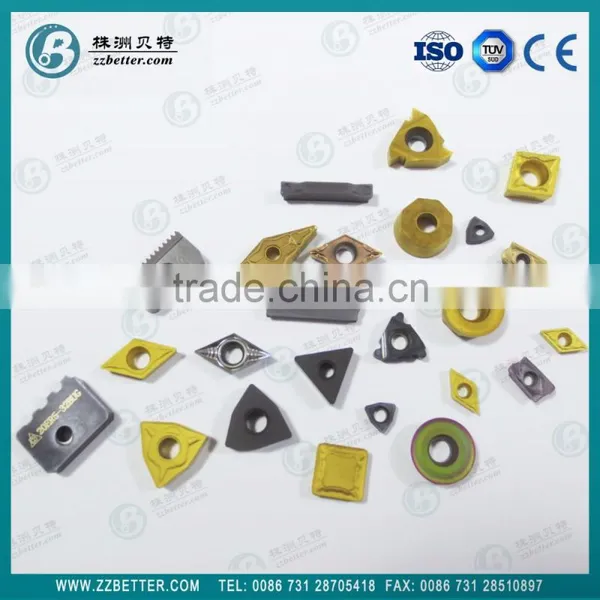

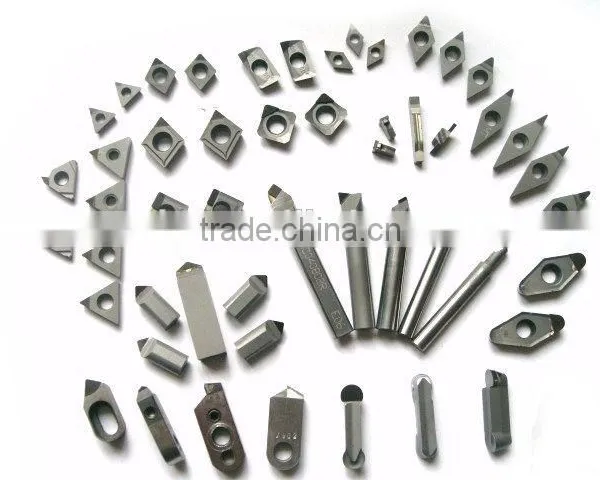

pictures of different cnc turning inserts / cnc machine inserts / tungsten carbide inserts
packing of our cnc turning inserts / cnc machine inserts / tungsten carbide inserts
We produce different type of cemented carbide cnc inserts, turning inserts, milling inserts, threading inserts, any demand, feel free to contact me.
Certificates we have:
