Turning high alloy rollers solid CBN inserts
Benefits of using CBN inserts
1. Can replace grinding operations, which reduces
machining costs.
2. Dimensional stability, which is especially important in
mass production. Minimizes the amount of scrapped parts.
3. “Green” approach, due to minimized usage of coolant.
There are a few guidelines to follow in order to achieve best results and high productivity when machining hard materials:
• CBN is characterized by hardness of 4500 HV.
The high hardness of CBN enables it to machine hard materials
at high speeds and feeds.
• Successful HPT (Hard Part Turning) demands not only suitable
cutting tools, but also the right conditions, preparation
and environment.
General tech info of the CBN inserts/Cermet inserts
Drawning and technical info of the CBN inserts
| Solid CBN insert ISO code | ISO | L | Φ IC | S | r |
| SNMN 090304/SNGN 090304 | 321 | 9.525 | 9.525 | 3.18 | 0.4 |
| SNMN 090306/SNGN 090306 | 9.525 | 9.525 | 3.18 | 0.6 | |
| SNMN 090308/SNGN 090308 | 322 | 9.525 | 9.525 | 3.18 | 0.8 |
| SNMN 090312/SNGN 090312 | 323 | 9.525 | 9.525 | 3.18 | 1.2 |
| SNMN 090404/SNGN 090404 | 9.525 | 9.525 | 4.76 | 0.4 | |
| SNMN 090408/SNGN 090408 | 9.525 | 9.525 | 4.76 | 0.8 | |
| SNMN 090412/SNGN 090408 | 9.525 | 9.525 | 4.76 | 1.2 | |
| SNMN 120404/SNGN 120404 | 431 | 12.7 | 12.7 | 4.76 | 0.4 |
| SNMN 120408/SNGN 120408 | 432 | 12.7 | 12.7 | 4.76 | 0.8 |
| SNMN 120412/SNGN 1200412 | 433 | 12.7 | 12.7 | 4.76 | 1.2 |
| SNMN 120416/SNGN 120416 | 434 | 12.7 | 12.7 | 4.76 | 1.6 |
| SNMN 120712/SNGN 120712 | 12.7 | 12.7 | 7.94 | 1.2 | |
| SNMN 150608/SNGN 150608 | 542 | 15.875 | 15.875 | 7.94 | 0.8 |
| SNMN 150612/SNGN 150612 | 543 | 15.875 | 15.875 | 7.94 | 1.2 |
| SNMN 150616/SNGN 150616 | 544 | 15.875 | 15.875 | 7.94 | 1.6 |
| SNMN 150704/SNGN 150712 | 15.875 | 15.875 | 7.94 | 0.4 | |
| SNMN 201020/SNGN 201020 | 20 | 20 | 10 | 2 | |
| SNMN 201020/SNGN 201024 | 20 | 20 | 10 | 2.4 |
| Solid CBN insert ISO code | Inch | L | Φ IC | S | r |
| CNMN 090304/CNGN 090304 | 321 | 9.525 | 9.525 | 4.76 | 0.4 |
| CNMN 090308/CNGN 090308 | 322 | 9.525 | 9.525 | 3.18 | 0.8 |
| CNMN 090312/CNGN 090312 | 323 | 9.525 | 9.525 | 3.18 | 1.2 |
| CNMN 090404/CNGN 090404 | 9.525 | 9.525 | 4.76 | 0.4 | |
| CNMN 090408/CNGN 090408 | 9.525 | 9.525 | 3.18 | 0.8 | |
| CNMN 090412/CNGN 090412 | 9.525 | 9.525 | 3.18 | 1.2 | |
| CNMN 120404/CNGN 120404 | 431 | 12.7 | 12.7 | 4.76 | 0.4 |
| CNMN 120408/CNGN 120408 | 432 | 12.7 | 12.7 | 4.76 | 0.8 |
| CNMN 120412/CNGN 120412 | 433 | 12.7 | 12.7 | 4.76 | 1.2 |
| CNMN 120704/CNGN 120704 | 12.7 | 12.7 | 7.94 | 0.4 | |
| CNMN 120708/CNGN 120708 | 12.7 | 12.7 | 7.94 | 0.8 | |
| CNMN 120712/CNGN 120712 | 12.7 | 12.7 | 7.94 | 1.2 | |
| CNMN 120804/CNGN 120804 | 12 | 12.7 | 7.94 | 0.4 | |
| CNMN 120808/CNGN 120806 | 12 | 12.7 | 7.94 | 0.6 | |
| CNMN 120812/CNGN 120812 | 12 | 12.7 | 7.94 | 1.2 |

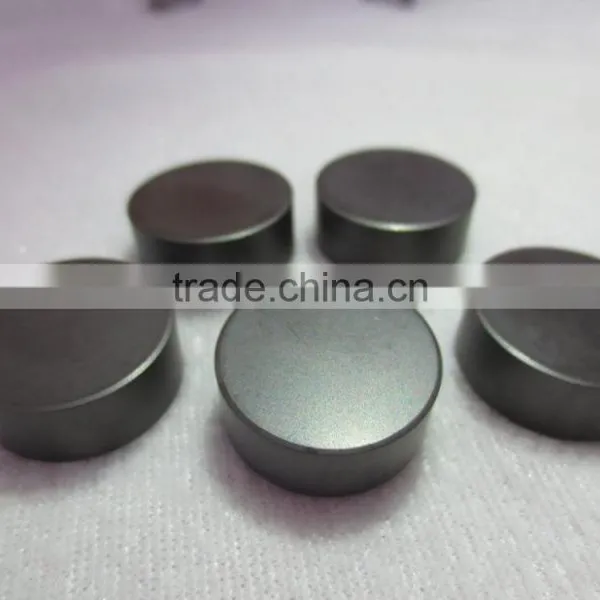

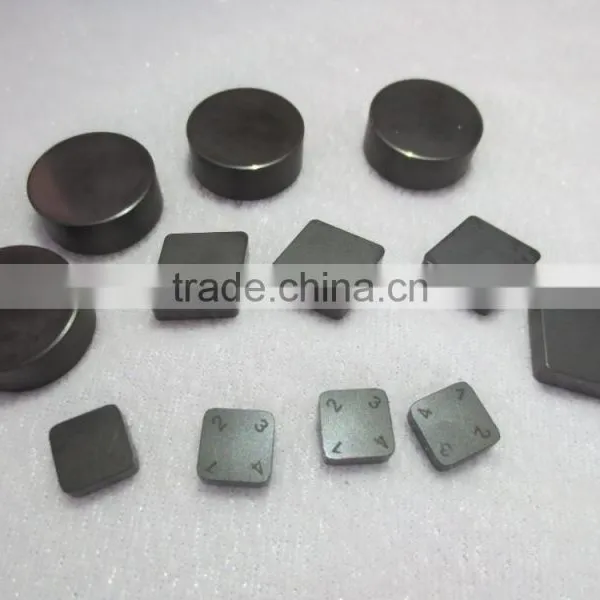

Product Display of CBN inserts/Cermet inserts
Packing of the CBN inserts
Other Ceramic carbide/Cermet inserts available
Contact Me
If you need cermet inserts/CBN inserts/PCBN inserts, please feel free to us
