Specifications
lid tungsten carbide end mill2.over than 16000 type for choose
3.fast delivery and Good price
4.ISO9001-2008

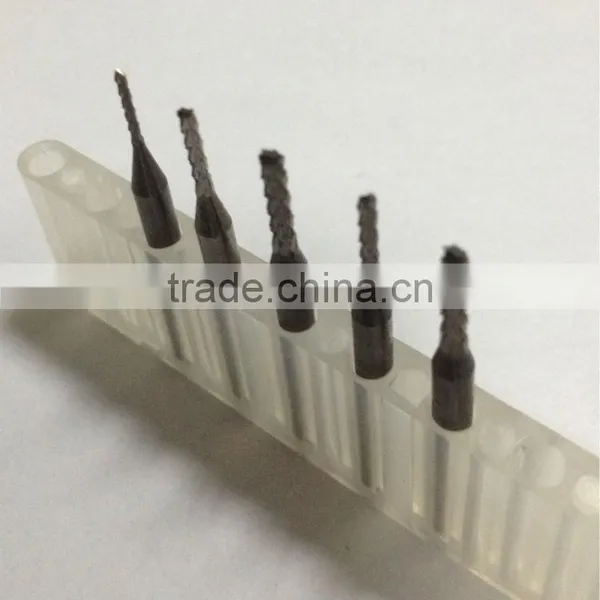

End Mill 3 Flute Corner Radius coated ZrN
End mill
End mills are those tools which have cutting teeth at one end, as well as on the sides. The words end mill are generally used to refer to flat bottomed cutters, but also include rounded cutters (referred to as ball nosed) and radiused cutters (referred to as bull nose, or torus). They are usually made from high speed steel (HSS) or carbide, and have one or more flutes. They are the most common tool used in a vertical mill.
- Outstanding performance in Aluminum and Brass alloys
- 38 deg helix end mill for soft flute entry and great chip removal
- Special "3rd land edge prep" increases sharpness and cutting
- Extra deep gullet
- Corner radius for added strength and increased feeds
Why choose us?
We will provide you
1.The widest possible selection of carbide end mill
2.The widest selection of PVD coating possibilities
3.The widest selection of performance possibilities
4.An easy to use intelligent search engine interface
5.Very competitive prices and fast delivery
Our commitment to the metal working industry is to provide premium quality, China made carbide end mills and other carbide, high speed steel and cobalt cutting tools at the lowest possible price.
Grade to choose
YG8,YG10X,YL10.2 and so on.
Name: |
standard end mill sizes with 2F or 4F or others |
Material : |
Solid carbide, HSS |
P-Code: |
as below photos |
Specifications: |
standard sizes of inch, metric |
| Centercutting: | Yes |
| Coating: | ZrN |
| Corner radius: | .016 |
| Cutting diameter: | .0984 (2.5mm) |
| End style: | Square With Corner Radius |
| Flute length: | .236 |
| Material: | Solid Micrograin Carbide |
| Number of flutes: | 3 |
| Shank Size: | .1181 (3mm) |
| Total Length: | 1.968 (50mm) |
Speeds and feeds
Other type
