Specifications
1.tungsten carbide roller2. Best price
3. Quality guaranntee
4.fast delivery
5.ISO9001-2008 certification

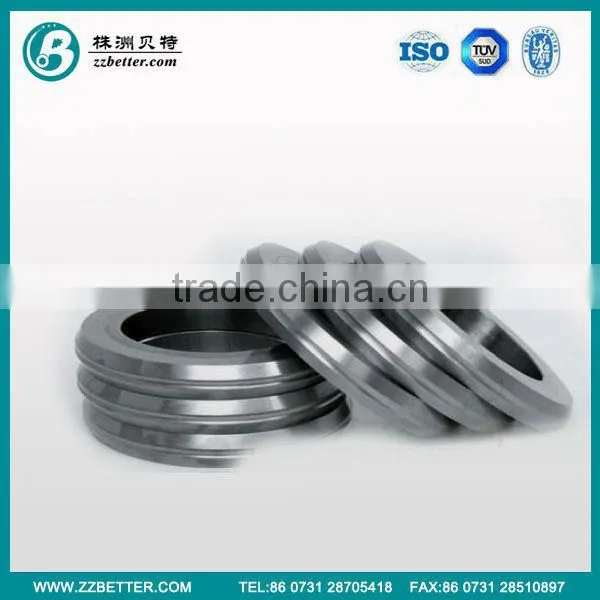

YG15 tungsten carbide roller
Description of the tungsten carbide ring roller cast
Carbide rolls are widely used in metal forming, especially in hot rolling industry mainly for intermediate and last finishing stands to ensuring superior surface finish and dimensional stability of processed metal products. Rolls are also commonly used for wire flattening, de-scaling and straightening applications.
We provide carbide rolls for the following application:
Rolling Mills
Coil Cutters
Lamination Cutters
1.Various type , blanks and polished( precision machined) roll rings.
2.D:outer diameter(120-450)mm
3.d: inner diamenter(60-350)mm
4.H: height(30-150)mm are availble
5,We also can produce according to your drawing
Grade ,Drawing and Cataloge
| ROLLERS FOR COLD ROLLING RIBBED BARS | |||
| GRADE AND SPECIFICATION OF ROLLERS | |||
| GRADE | MECHANICAL PROPERTIES | ||
| DENSITY G/CM3 | HARDNESS | TRS | |
| YGH30 | 14.02 | 84.9 | 2700 |
| YG15 | 14.28 | 86.8 | 2500 |
| STANDARD TUNGSTEN CARBIDE ROLL DIMENSION | |||
| WIRE RANGEΦ | (OD)ΦMM | (ID)ΦMM | (T)MM |
| 4-8.5 | 125 | 82 | 15 |
| 9~12 | 125 | 82 | 20 |
| 4-8.5 | 140 | 90 | 15 |
| 9~12 | 140 | 90 | 20 |
| 4-8.5 | 150 | 90 | 15 |
| 9~12 | 150 | 90 | 20 |
4, Packing method: First in foam , then in paper cartons and the last in wooden cases.
5,Delivery:within 20days
6,Payment:30% T.T in advance and balance against despatch
7,Shipping ways:
by air by sea by express
