Specifications
tungsten carbide slittering cutter for plastic cutting1.High wear resistance
2. High quality
3. reasonable price
4. ISO9001

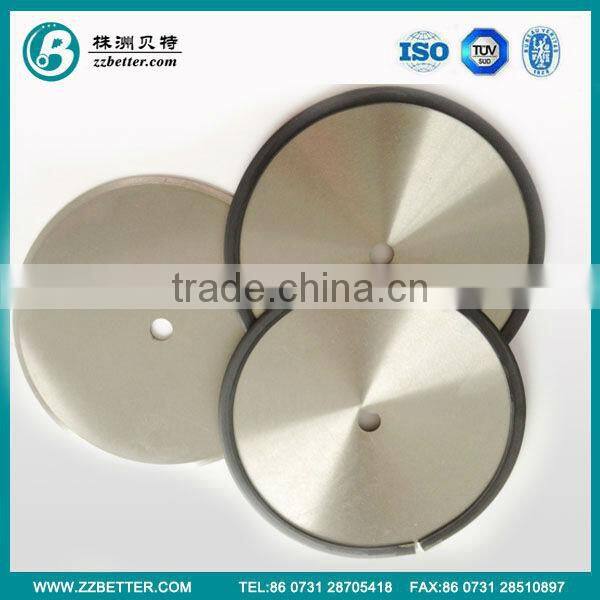

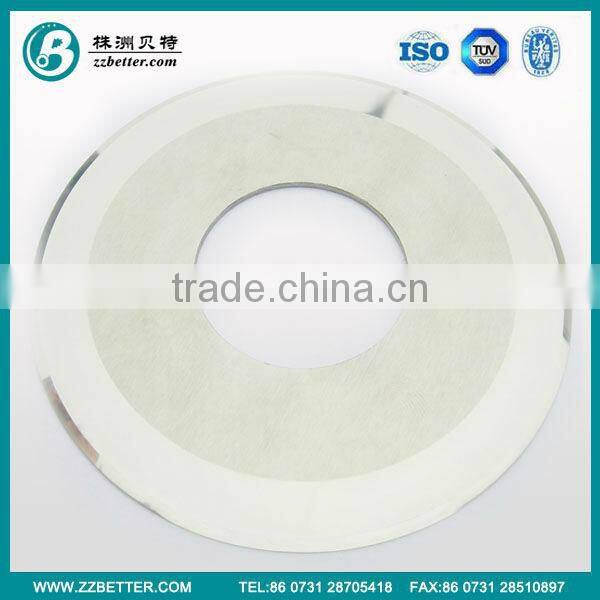

Cemented tungsten carbide slittering cutter for plastic cutting

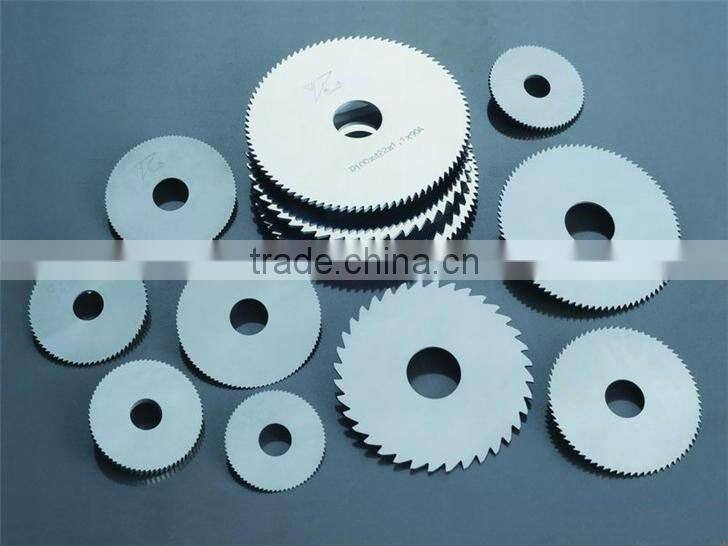

Tungsten Carbide Disc Cutters are made by 100% vergine raw matetial. With high wear resistance and high bending resistance, they can be used for semifinisheing of chilled cast iron, non-ferrors metal alloys, semi-finished or finished hardened steel, alloy steel, etc.
Our company can produce various sized of tungsten carbide disc cutters, and we can also produce disc cutter according to customer's requirements/drawings. We promise for good quality, reasonable price and good after sale service. Welcome to inquiry us for more information.
Specifications and Application
Grade | Equal to ISO Category Number | Performance |
Application Recommented | ||
Density | Bend Strength | Hardness | |||
G/Cm3 | N/mm2 | HRA | |||
YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | |
YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | |
YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 | M10 | 12.7-13.5 | ≥1180 | ≥91.5 | Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 | M20 | 12.5-13.2 | ≥1350 | ≥90.5 | Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Packing
Production Equipments
Production Flow Chart
Quality Control
Main Products
Contact Us
Sales manager: Zoe Shan
Skype: zzbetter9
BQQ: 2355304620
Send Inquiry to This Supplier
