Help CenterIP67 Grade Fire Fighting Thermal Imager
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
LUSHAN
Model Number:
F2
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/shanghai/jiujiang port /as your suggestions/airport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Insulated Power Cable Cutter , Cable Plier ,pinchersUS$ 1 - 60MOQ: 1 Set -
Nuclear Radiation DetectorsUS$ 1 - 3,900MOQ: 1 Piece
-
Fire Fighting Tool With HandleUS$ 1 - 12MOQ: 1 Piece
-
Stainless Steel Multi-purpos Fire Axe With HandleUS$ 1 - 45MOQ: 1 Piece
-
Hot Sale Hammer With Head Multi ToolUS$ 0.01 - 10MOQ: 1 Piece
Place of Origin
Jiangxi, China
Brand Name
LUSHAN
Model Number
F2
Specifications

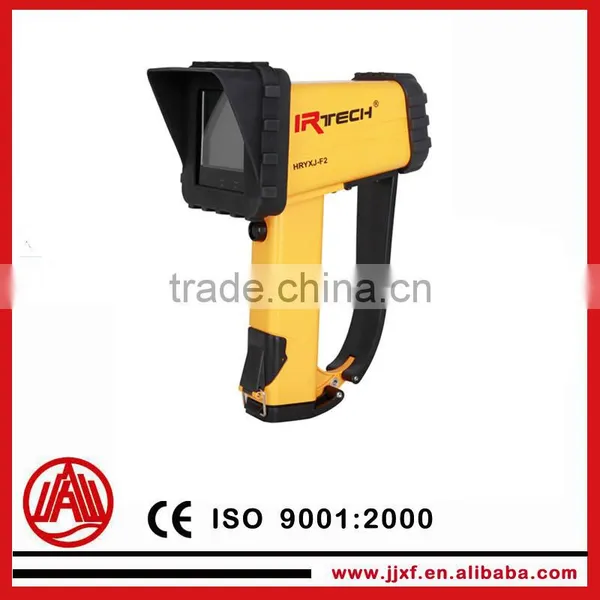

IP67 grade fire fighting thermal imager1) firefighting thermal camera
2)Anti-smog
3)Unique fire color sign
4)Small size
Product Description
Thermal imager
Description:
1.160*120 uncool FPA detctor
2.With temperature measurement function
3.Unique fire-control color palette
4.Apply to fire rescue
5.We are the manufacor,the price is competitive
6.Portable,small size,lightweight
7.Finding people and identify location in fire place
8.Best aftersales service
9.We are the manufactor,we have price advantage
specification
| Items | Technical Specification | |
| F2-T | ||
| Detector characteristics | Detector type | Un-cooled FPA micro-bolometer |
| Array size/format | 160x120 | |
| Image characteristics | Field of view/min focus distance | 30°×22.5° |
| Spatial resolution(IFOV) | 3.3mrad | |
| Thermal sensitivity | ≤0.1°C@30°C | |
| Frame frequency | 50Hz | |
| Focus | Fixed | |
| effective distance | ≥50m | |
| Spectral range | 8-14um | |
| Start-up time | ≤25s@30°C | |
| Image display | LCD | 260,000 color 3.5" TFT LCD, 640x480 |
| Measurement | Temperature ranges | -20°C-+ 600°C |
| Measurement type | Fixed spot | |
| Emissivity correction | Fixed | |
| palettes | 6palettes changeable(black and white, grey and grey inverted, 3 pseudo-color) | |
| Power source | Battery type | (NIMH) battery, rechargeable |
| Battery operating time | 2 hours continuous operation | |
| Battery recharge time | ≤2 hours | |
| Battery recharge times | More than 500 times | |
| Battery charging mode | Intelligent charger | |
| Environment | Operating temperature | -15°C-- +50°C |
| Short time operating temperature | +50°C-+260°C | |
| Storage temperature | -40°C- +70°C | |
| Encapsulation | IP67(1 meter under water) | |
| flame retardant rating | UL94-V0 | |
| Drop test | 1m | |
| Physical characteristics | Weight | ≤1.3kg |
| Dimension | 190*128*273mm | |
Application

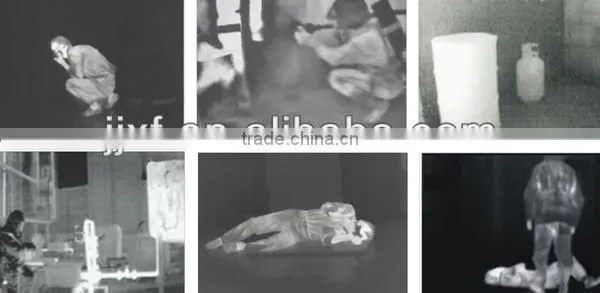

Firefighting thermal imaging camera integrate 160*120 uncooled FPA detector.Featured with temperature measurement function and unique firefighting color scale,F2 has specifically designed to help firefighters to see through smoke,identify and quick locate targets in scene of fire.

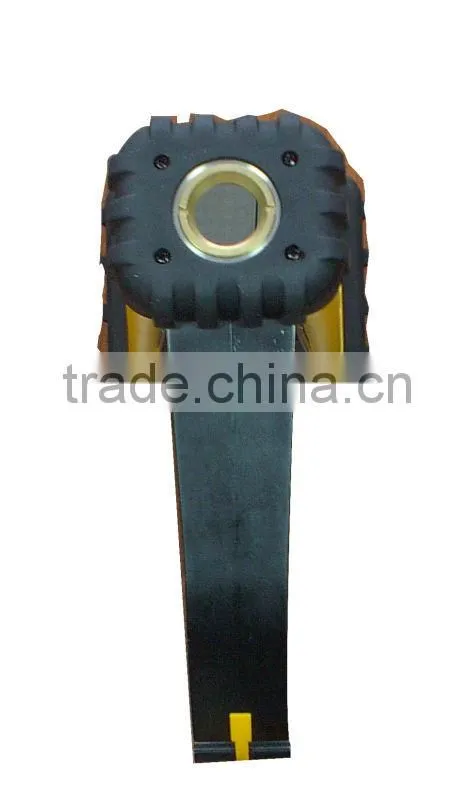

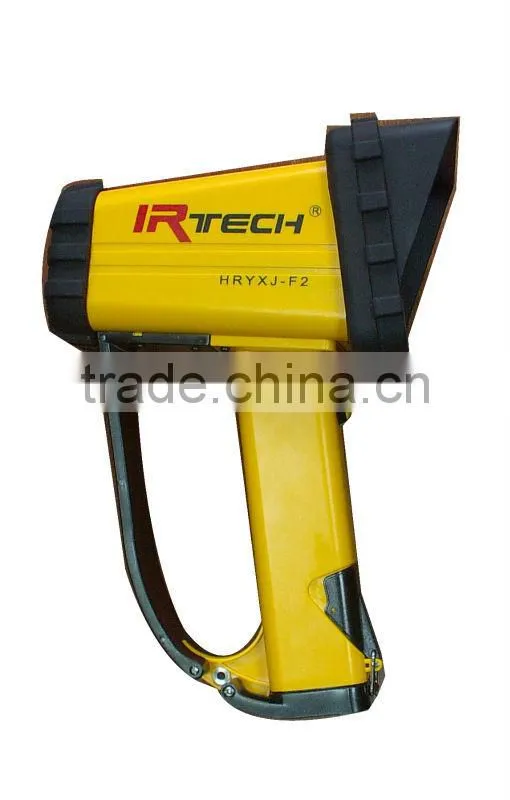

Detailed Pictures
