Water-Foam Monitor

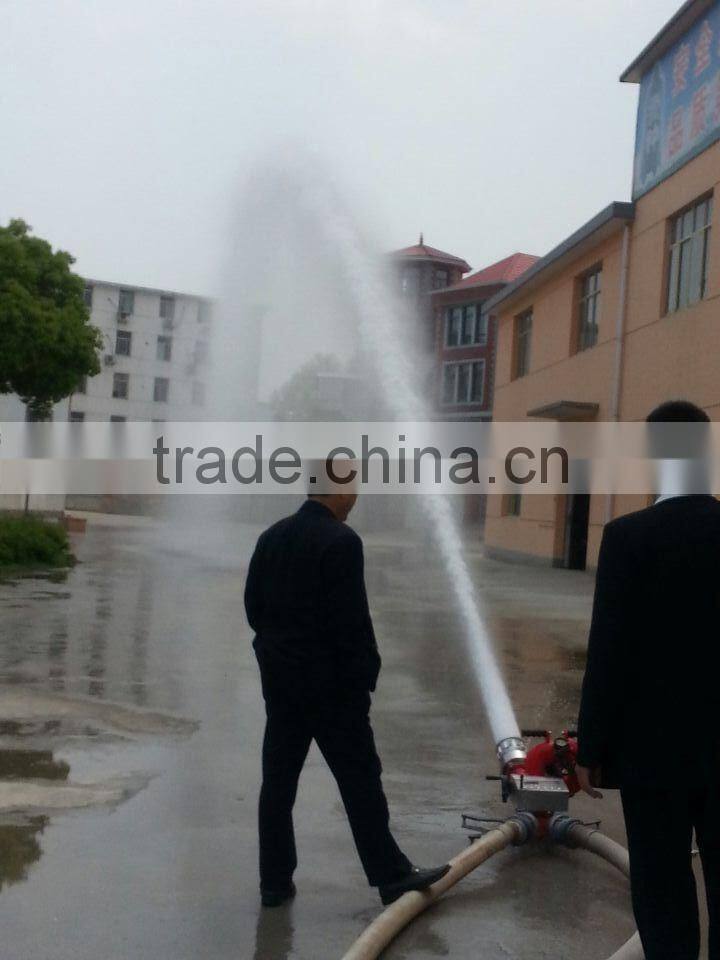

Description:PSY40 mobile fire water monitor have complete functions, far range shot. In favor of people away from the worksite, effectively avoids the harm to the workers.
The system has the advantages of small volume, light weight, the supporting foot can be folded, convenient operation, flexible and reliable, convenient storage and transportation easy etc.. The water monitor is particularly suitable for oil fields, oil depots, airports, terminals, large construction, petrochemical tank farm and fire trucks to enter the old city, underground shopping facilities and other poisonous flammable and explosive risk areas, fire safety facilities is an indispensable equipment.

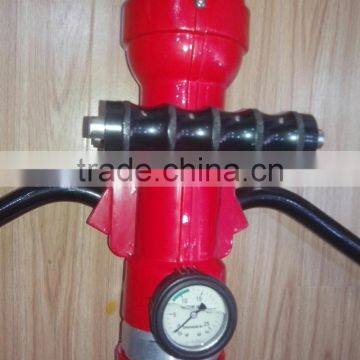

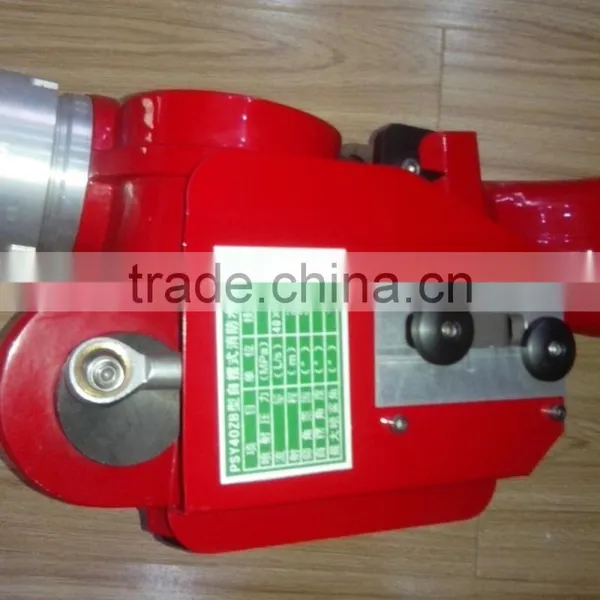

Main Parts
1,water hose interface
2,manual up&down operation disk
3,the pressure gauge
4,manual left&right operation panel
5,manual spray quality operating disc
6,low voltage outlet
7,foam head
Specifications:
Test Items | Standard | Test results | |
Appearance | Casting surface should be smooth, no cracks, porosity, shrinkage, trachoma and other effects of intensity and performance defect. Welds shall be smooth, no welding, burn, scar tumour and other damage strength and appearance quality defects. Fire monitor the outer surface of the paint layer shall be smooth, uniform, no bubbles, obvious scar, crack, affecting the appearance quality defects.
| Qualified | |
manoeuvrability | Fire fighting monitor pitching rotation mechanism, horizontal swing mechanism, the control handle ( wheel ) should be flexible operation, safe and reliable transmission mechanism. Fire fighting gun pitching rotation mechanism with self-locking function or a locking device. Portable fire fighting monitor in the whole level rotation angle range minimum elevation angle injection should be stable and reliable, with no sliding and overturning phenomenon.
| Qualified | |
decayresistance | Fire fighting monitor should be adopt corrosion-resistant materials or the materials by the anti-corrosion treatment, so to meet the corresponding use of the environment and medium anti-corrosion.
| Qualified | |
Specifications | jet pressure (MPa) | ≤1.0 | 0.80 |
flow rate (L/s) | 40×(1±8%) | 39.8 | |
visible distance (m) | ≥60 | 60.0 | |
Minimum angle of elevation range (°) | +30~+70 | +30~+70 | |
Level rotation angle (°) | ≥90 | 90 | |
The maximum spray angle (°) | ≥90 | 100 | |
Hydraulic sealing performance
| Fire fighting monitor pressure element (except foam gun barrel ) according to the provisions of the water seal test 7.4, each connecting position should be no leakage phenomenon.
| Qualified | |
Hydrostatic strength
| Fire fighting monitor pressure element ( except the foam gun barrel) according to the provisions of the water pressure test for strength7.5, the gun body with no sweat, crack and permanent deformation and other defects. Seal test, each connecting position should be no leakage phenomenon.
| Qualified | |
Using
