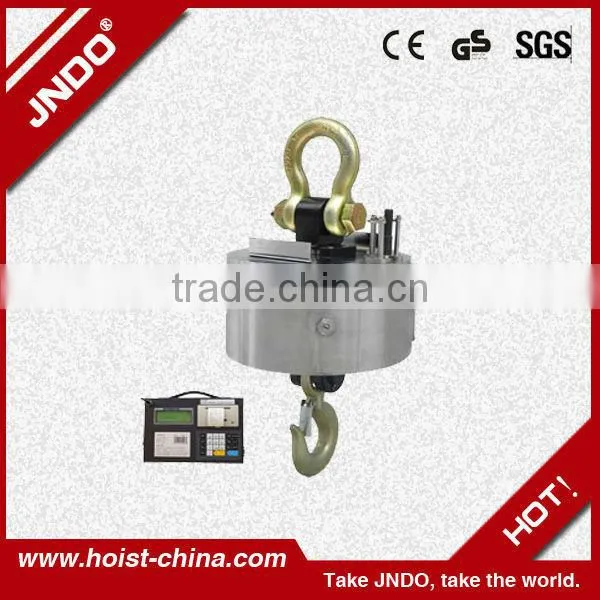

OCS-SW6 Electric Wireless crane scale

Specifications

OCS-SW6 Electric Wireless crane scale
Multi-function operation
User-friendly design
Accept OEM

OCS-SW6 Electric Wireless crane scale



1.FEATURES

Multi-function operation:
Tare;Zero;Auto zero tracking;Total;Hold; Overload warning and record, operate through remote controller,etc functions.
User-friendly design:
Steel housing scale body, high-tension shackle and hook;Weighing data save protection in case of power off;keyboard calibration, easy to operate; Power saving mode, turn off automatically after 1 hour with no operation;Gathering up to data records of 2000 weighing, records can be sorted, searched and printed;Micro-printer in indicator;RS232 optional.



1.Soft calibration by the keypad

2.Convenient, quick and reliable



3.Internal clock and calendar

4.Saving the data as power supply interrupted.

5.Monitor the battery voltage in scale automatically  .

6.Turn off automatically after 1.5 hours no-working



 7.Expansive RS232 communication interface, printer interface and great screen display interface.

8.Allocate a spare battery, it can be exchanged and don't effect use of the crane scale





2.Main technical data



Standard	According to OIML class III
Display	LCD with backlight
Zero Range	4% F.S.
Tare Range	20% F.S.
Stable Time	≤10seconds
Overload Indication	100% F.S. + 9e
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Scale Battery Type	6V/4Ah rechargeable battery
Indicator Battery Type	7.2V/2.8Ah rechargeable battery
Operating Temp	- 10°C ~ + 40°C
Operating Humidity	≤85% RH under 20°C
Operation Distance	200m in wide space
Frequency	450MhHe



 3.Spectification



MODEL	Max. capacity (kg)	Min. weigh(kg)	Division(kg)	Total dispay counts (n)
OCS-SW6-1	1000	10	0.5	2000
OCS-SW6-2	2000	20	1	2000
OCS-SW6-3	3000	20	1	3000
OCS-SW6-5	5000	40	2	2500
OCS-SW6-10	10000	100	5	2000
OCS-SW6-15	15000	100	5	3000
OCS-SW6-20	20000	200	10	2000
OCS-SW6-30	30000	200	10	3000
OCS-SW6-50	50000	400	20	2500

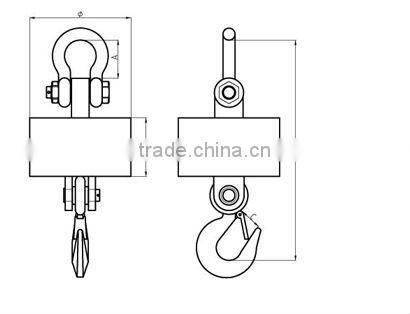

MODEL	A(mm)	B(mm)	C(mm)	Φ(mm)	E(mm)	H(mm)	N.W.(kg)
OCS-SW6-1	67	----	35	270	160	450	22.5
OCS-SW6-2	67	----	35	270	160	450	22.5
OCS-SW6-3	95	----	45	270	160	510	26
OCS-SW6-5	113	----	55	325	185	625	39
OCS-SW6-10	122	----	65	325	185	710	50
OCS-SW6-15	144	----	70	325	185	835	69
OCS-SW6-20	166	----	85	325	185	900	82
OCS-SW6-30	285	160	100	375	220	1140	164
OCS-SW6-50	360	220	160	453	280	1680	490
