Operable Lifting Tools Pvc Layer Protection Spring Balancer
- QingDao
- T/T Credit Card
You May Like
-
100kg Heavy Lifting Tools Weighing Spring Balancer
-
9-15kg Maximum Stroke 1.6m Weighing Spring Balancer
-
Workshop Portable Tools Dynamic Weighing Spring Balancer
-
Electric Screwdriver Portable Spring Weight Balancer
-
Heavy Tool Support Digital Spring Balancer
-
9kg Mechanical Spring Balancer Tool Balancer
Product Details
| Place of Origin | Shandong, China | Brand Name | JNDO | |
| Model Number | HW | Type | Other, weighing balancer | |
| Power Supply | no power | Display Type | normal | |
| Rated Load | 400kg | Accuracy | 2kg |
Product Description
operable lifting tools pvc layer protection spring balancer
Spring balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.

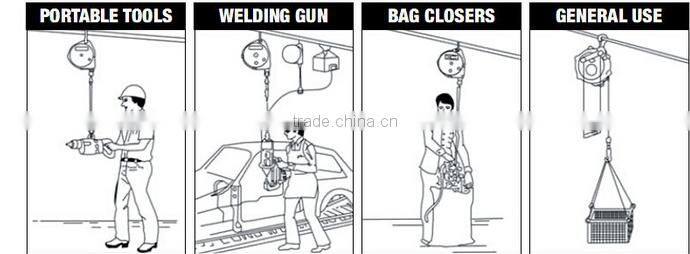

1.Suspending a tool for product assembly line.
2.Frenquent fastening screws,bolts and nuts.
3.Suspending a jig,tool, welding gun etc.
4.Spring balamcer improve working efficiency and diminish worker fatigue.
5.Spring balancer make the position of a tool stable and contribute to accurate work.
7.Any electric or pneumatic power is not required and safe working is achieved.
Model | Capacity | Stroke | Net weight |
| (kg) | (m) | (kg) |
HW-3.0 | 1.5-3.0 | 1.9 | 1.6 |
HW-5.0 | 3.0-5.0 | 1.9 | 1.62 |
HW-9.0 | 5.0-9.0 | 1.8 | 4.2 |
HW-15 | 9-15 | 1.8 | 4.5 |
HW-22 | 15-22 | 1.5-2.8 | 8 |
HW-30 | 22-30 | 1.5-2.8 | 8.5 |
HW-40 | 30-40 | 1.5-2.8 | 10 |
HW-50 | 40-50 | 1.5-2.8 | 10.2 |
HW-60 | 50-60 | 1.5-2.8 | 10.8 |
HW-70 | 60-70 | 1.5-2.8 | 11.2 |
HW-80 | 70-80 | 1.5-2.8 | 12 |
HW-100 | 80-100 | 1.9-2.8 | 22 |
HW-120 | 100-120 | 1.9-2.8 | 23 |
HW-140 | 120-140 | 1.9-2.8 | 24 |
HW-160 | 140-160 | 1.9-2.8 | 24.5 |
HW-180 | 160-180 | 1.9-2.8 | 25 |
HW-200 | 180-200 | 1.9-2.8 | 25.5 |
HW-120/240 | 200-240 | 1.9-2.8 | 50 |
HW-140/280 | 240-280 | 1.9-2.8 | 52 |
HW160/320 | 280-320 | 1.9-2.8 | 54 |
HW180/360 | 320-360 | 1.9-2.8 | 55 |
HW200/400 | 360-400 | 1.9-2.8 | 56 |

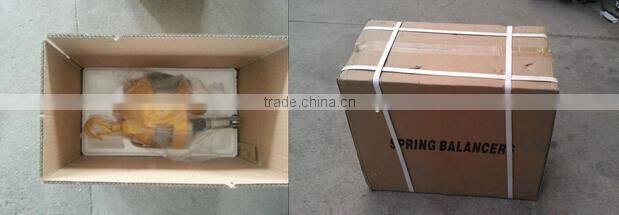

Packing:
Carton, wooden case or pallet.
Shipping:
10days after received the deposit.
