2-20 Ton OCS-SL Electronic Scale

Specifications

1. 2-20 ton electronic scale
2. CE certification
3. Calibration by any weights
4. Overload and low-voltage warning protection

2-20 ton electronic scale



Main feature

• 30mm high LEDdisplay
• Auto shut off function
• Weight accumulation function
• Gross/Net weight display convertible
• Remote control calibration
• Function key: Tare,zero, automous zero tracking,
• Material: Casting aluminum housing ,solid and durable
• Extra-large  hook and shakle,more convenient to weigh
• Build-in  6v/4.5Ah rechargeable battery,standby mode for 200 h
• Anti-errosion and anti-rust
• Calibration by any weights
• Galvanized hook, anti-errosion and rust resistance

 Technical Parameter



Item	Data
Zero range	less than 4% F.S
Max. reading	100%F.S+9e
Safety Load	130%F.S
Ambient temperature	-10°C --40°C
Tare Range	100% F.S



Capacity	Resolution	Minimum Load(20d,d=e)
600kg	0.2kg	4kg
1000kg	0.5kg	10kg
2000kg	1kg	20kg
3000kg	1kg	20kg
5000kg	2kg	40kg
10000kg	5kg	100kg

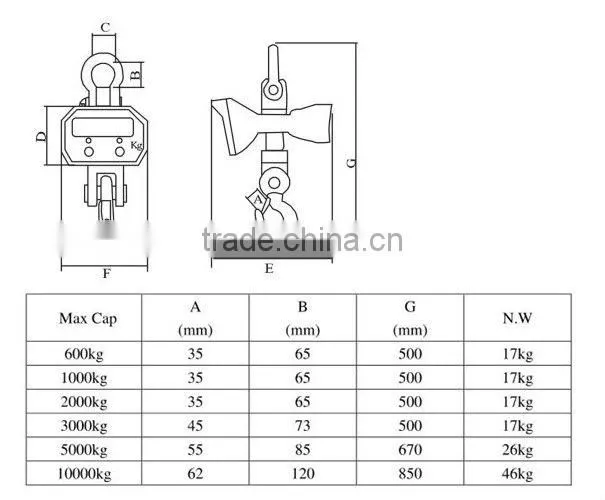

Dimension& Packaging





Model	Packing	G/W(KG)	N/W(KG)	Measurement(CBM)
OCS-A 1~3 T	Carton	18.5	18	0.059
OCS-A 5T	Carton	28	27.5	0.059
OCS-A 10T	Carton	49	48.2	0.0943



PS: The carton packaging are lined with foam, shock resitant during handling in Logistics warehouse and long sea journey.
