Specifications
100kg crane scale digital weighing spring balance1.Capacity:1ton to 10 ton
2.Unit:kg,lb
100kg crane scale digital weighing spring balance
Description of crane scale
1.30MM(1.2'')LED display with readablity
2.High quality square die casting aluminum,sturdy and durable
3.With storing function for the present, it is convenient to record weight
4.Automatic dormancy/shutdown saving energy design
5.Weight accumulation and demanding function
6.Handheld remote control with operating easily and convenience
7.With adjusting acceleation factor of gravity, suitable for all over the world
8.Display adjsting of speed and shakeproof rank, with small error and calibration by hand
9.Independent battery box design, it is easy to replace battery
1.Features of crane scale:
Kg, lb, N are selectable, generally kg is the default unit.
2. Multi-function operation:
Tare;Zero;Auto zero tracking;Total;Hold; Overload warning,operation through remote controller functions.
3. User-friendly design:
Cast aluminium housing and aluminium front panel for maximum protection; Large red 5 digit LED display (digit height: 30mm); Safety factor up to 4 times capacity; Battery Operated with low battery indication; Automatic switch-off power-saving function.
Parameters of Portable OCS-SP Crane Scale
| Standard | OIML class III |
| Display | 30mm (1.2’’) 5digits LCD/LED |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤10seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Life | ≥50 hours |
| Battery Type | Fully sealed Lead-Acid battery, 6V/5Ah |
| Adapter | DC9V/1000mA |
| Operating Humidity | ≤85% RH under 20°C |
| Remote Controller Distance | Min. 15m |
| Battery of Remote Controller | AAA battery, 1.5V×2 |
| Operating Temp | - 10°C ~ + 40°C |
| MODEL | Max. capacity( kg) | Min.weigh(kg) | Division(kg) | Total dispay counts(n) |
|---|---|---|---|---|
| OCS-SP-005 | 50 | 0.4 | 0.02 | 2500 |
| OCS-SP-01 | 100 | 1 | 0.05 | 2000 |
| OCS-SP-02 | 200 | 2 | 0.1 | 2000 |
| OCS-SP-03 | 300 | 2 | 0.1 | 3000 |
| OCS-SP-05 | 500 | 4 | 0.2 | 2500 |
| OCS-SP-1 | 1000 | 10 | 0.5 | 2000 |

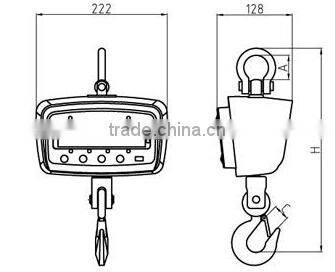

MODEL |
A(mm) |
C(mm) |
H(mm) |
N.W.(kg) |
|
OCS-SP-005 |
33 |
24 |
320 |
4 |
|
OCS-SP-01 |
33 |
24 |
320 |
4 |
|
OCS-SP-02 |
33 |
24 |
320 |
4 |
|
OCS-SP-03 |
33 |
24 |
320 |
4 |
|
OCS-SP-05 |
41 |
25 |
345 |
4.2 |
|
OCS-SP-1 |
41 |
25 |
345 |
4.2 |

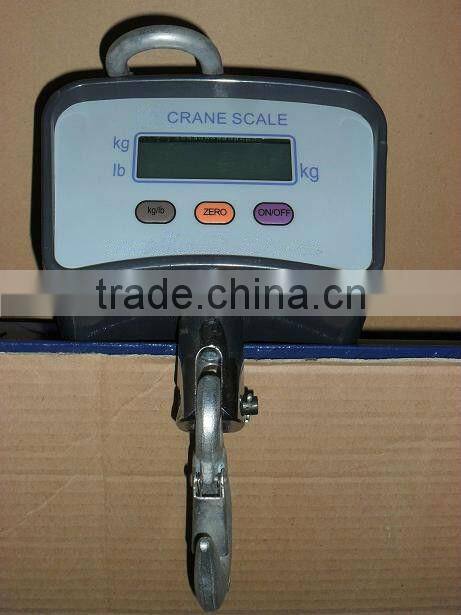

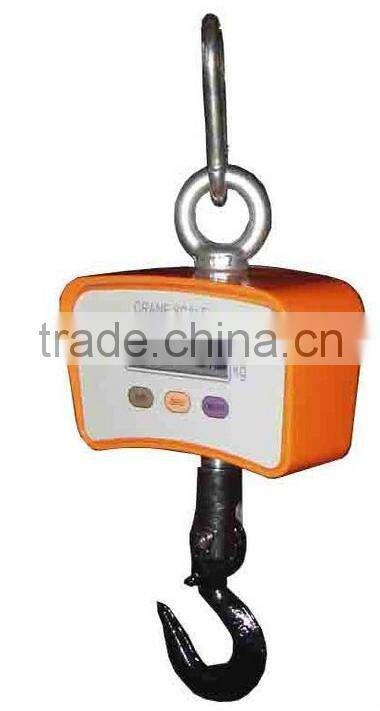

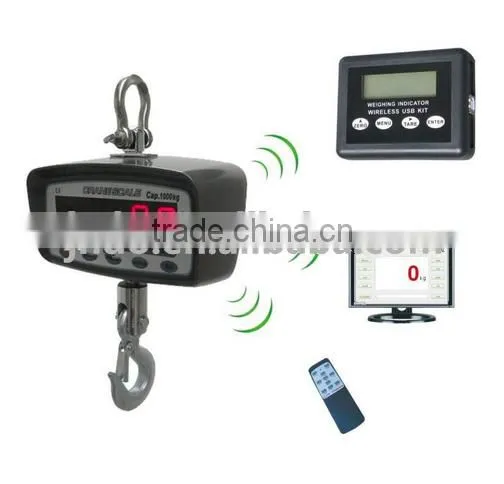

Crane scale Photo show:
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
