Top selling Portable 12v Electric Crane Hoist
HP1000
HP1000 mini truck crane is a self-developed high performance crane, we improved
the crane at least 10 times, every detail is different and better than the similar product
of the peers. With outstanding features such as structurally compact,small sized,light
weighted,and minimal space required, the crane can be easily installed.
Accessories such as hook, cable, switch, switch cable and circuit breaker are sup-
plied with the crane.

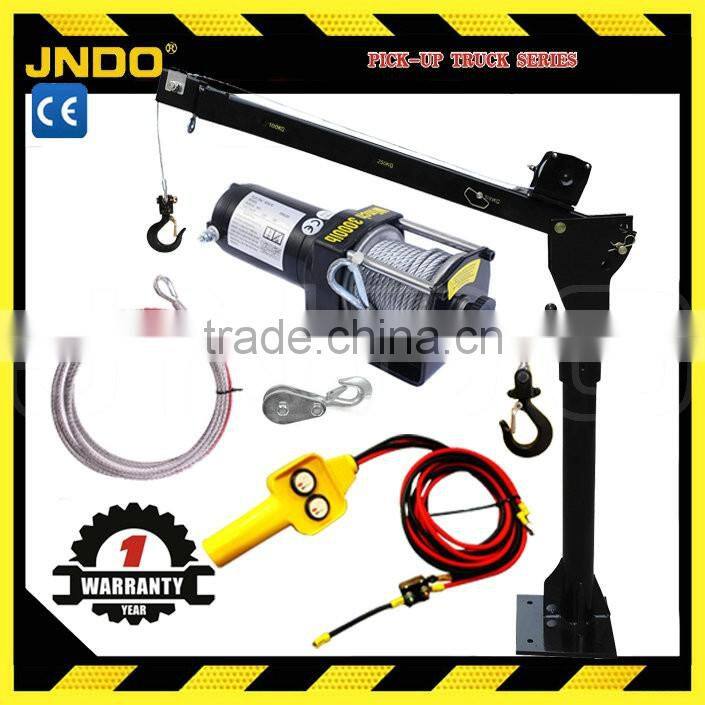

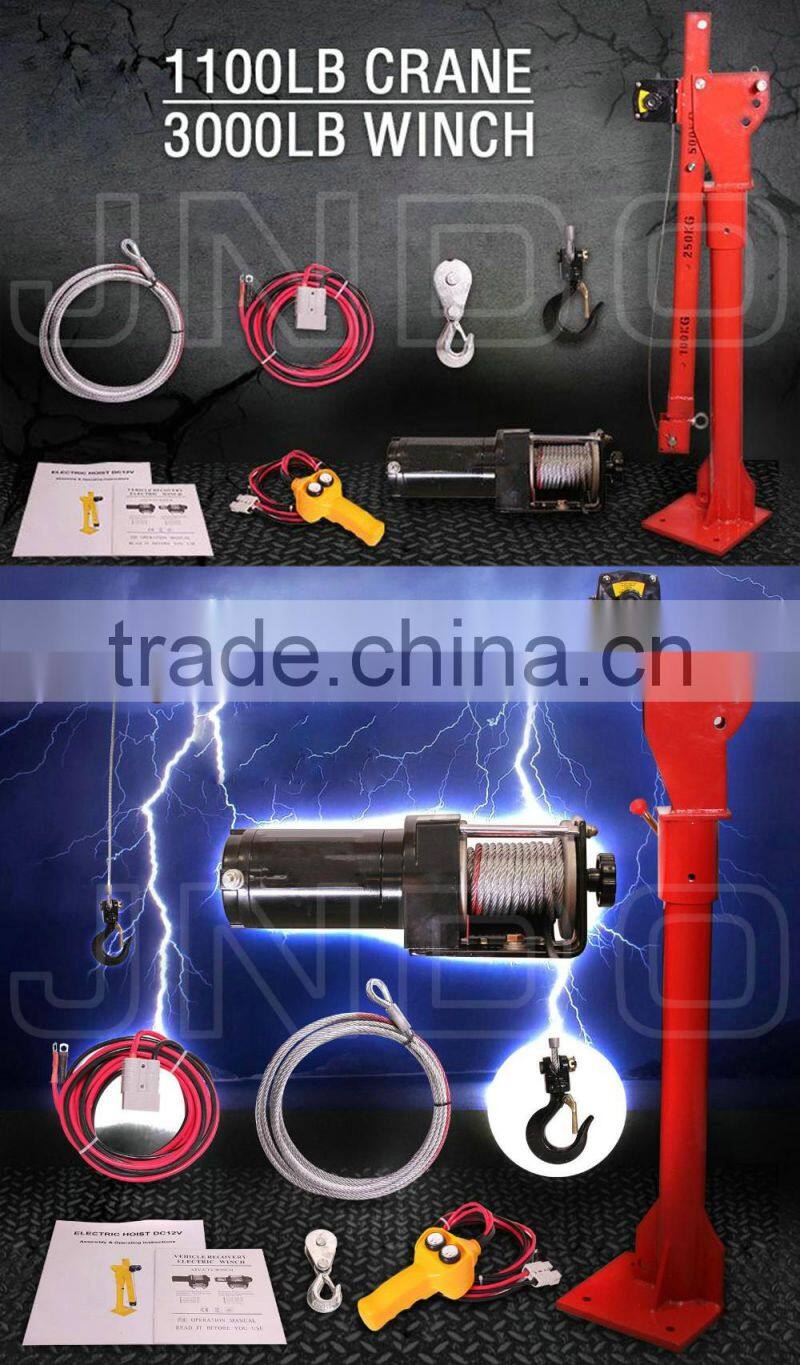

Crane with accessories and instructions

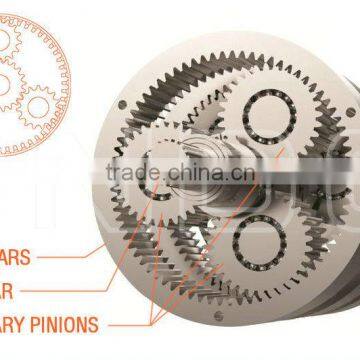

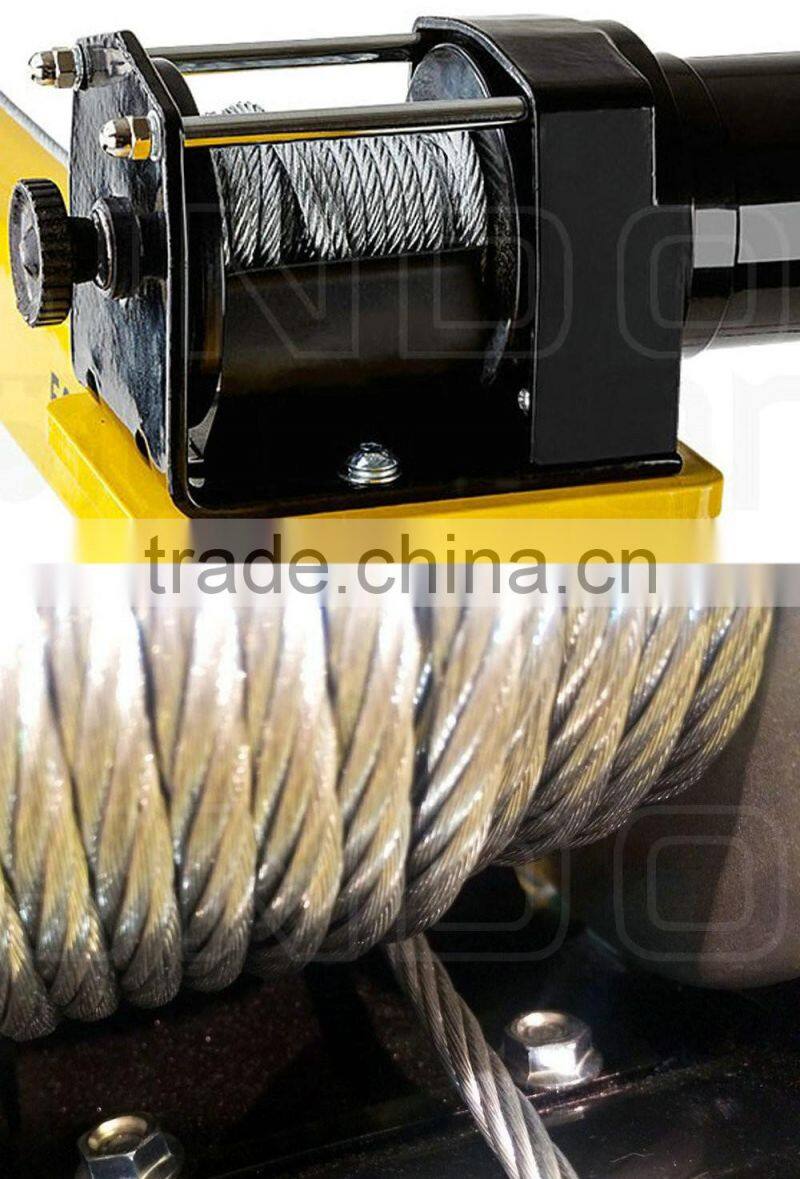

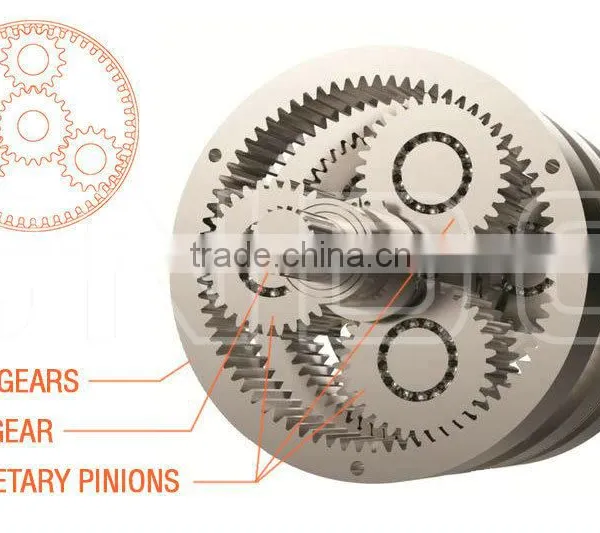

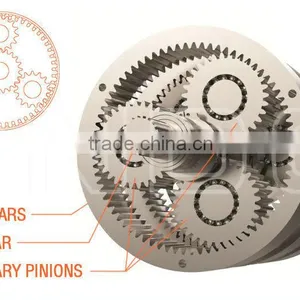

3-stage planetary gear system
Specifications
| Product name | Mini truck crane |
| Power reqirements | 12V DC 125amps |
| Line speed with no load | 3.6m/min,single line |
| Single line capacity | 500kg |
| Double line capacity | 800kg |
| Rotation with brake | 360°manual |
| Lifting cable | Φ4.8mm×6.6m |
| Lifting height | 1940mm |
| Reach | 1490mm |
| Gross weight | 60kg |
| Switch cable | 4.2m |
| Mounting base | 250mm×250mm×18mm |
| Packing size | 140cm×39cm×35cm |
| Mounting bolt hole pattern | 170mm×170mm |
| Finish | Powder coated |

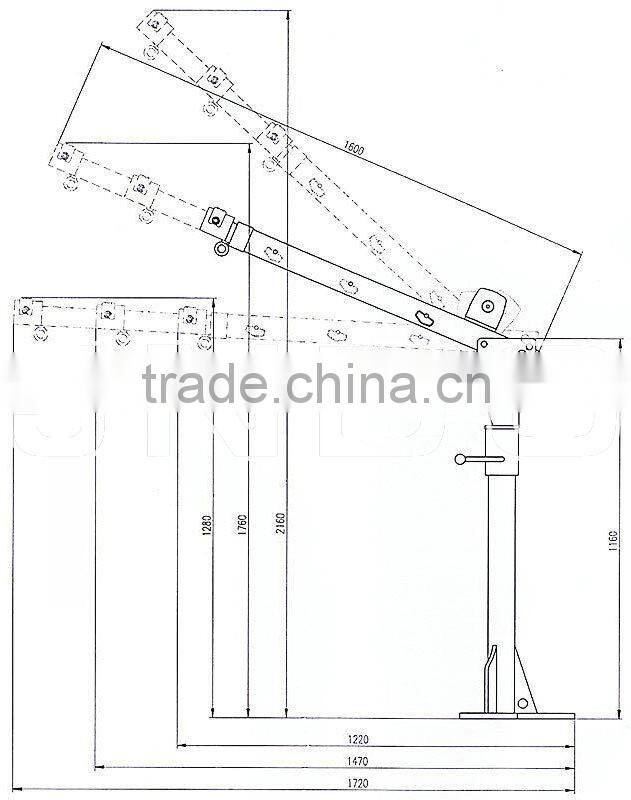

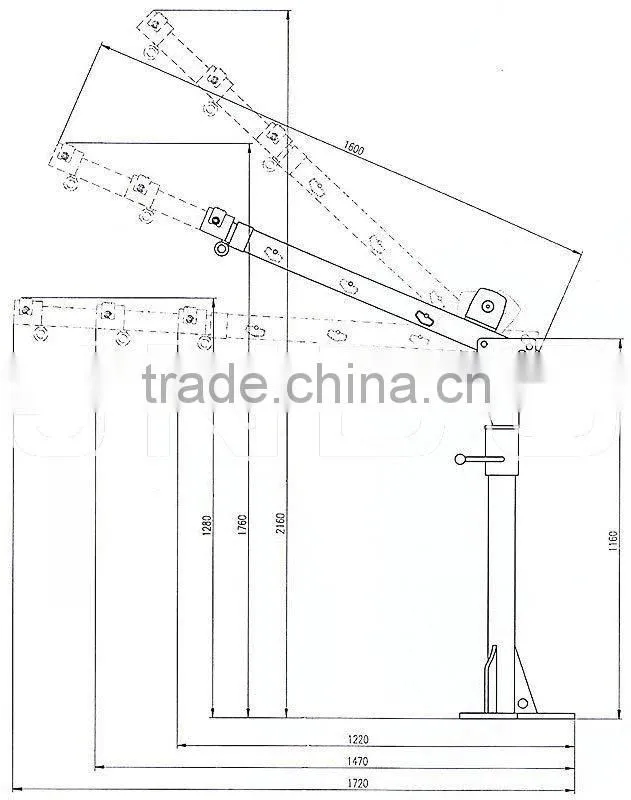

Overall dimensions

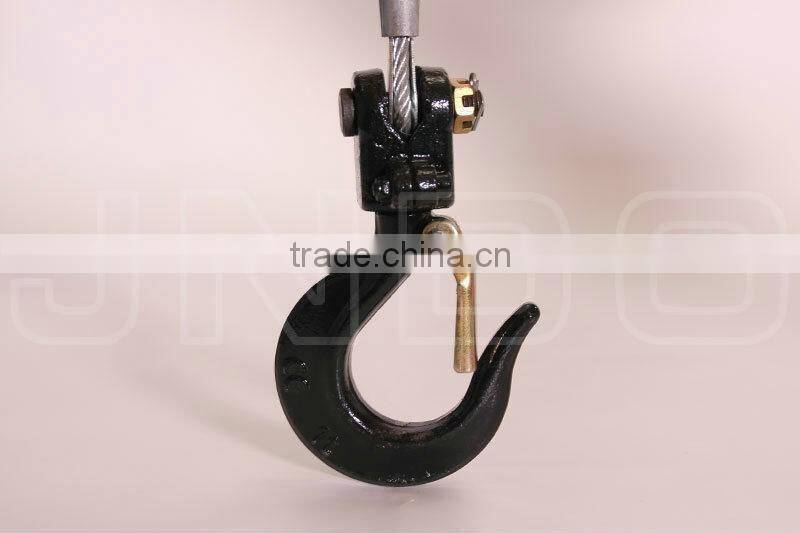

Carburized steel hook could be revolved 360 degrees

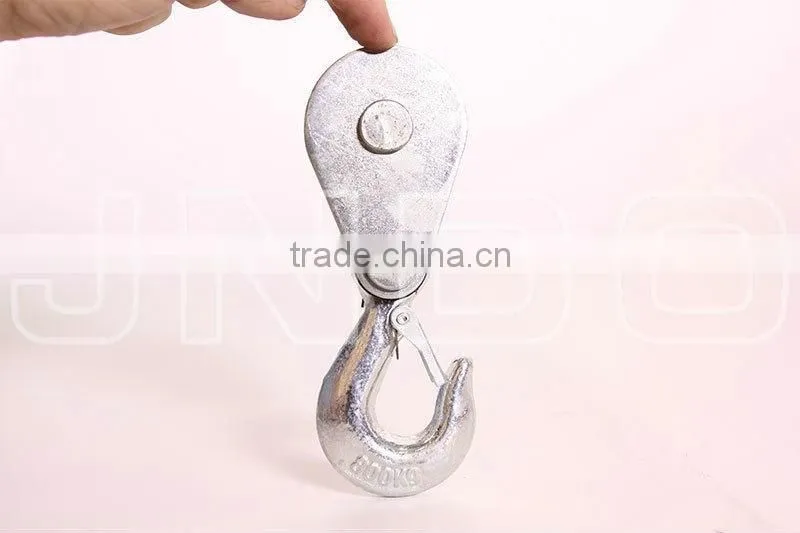

Forged steel pully block for double-line pulling

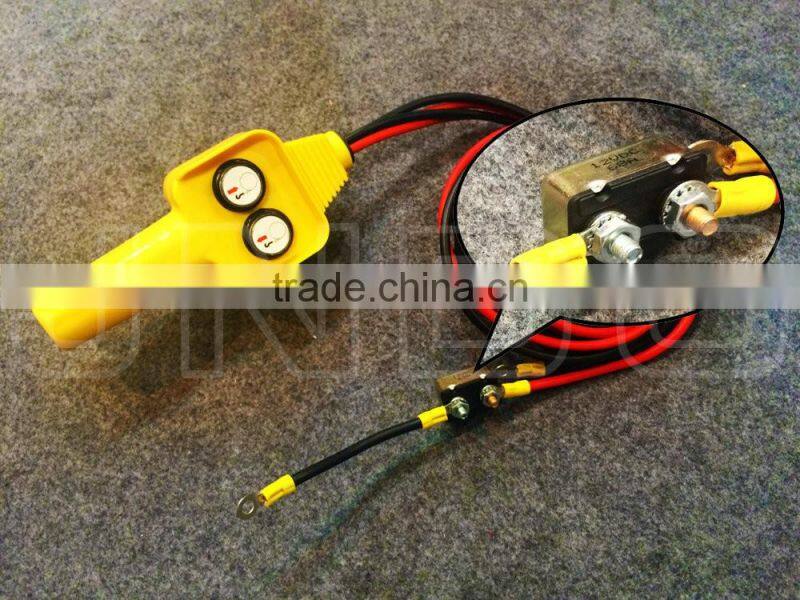

4.2m wired remote with 68A circuit breaker

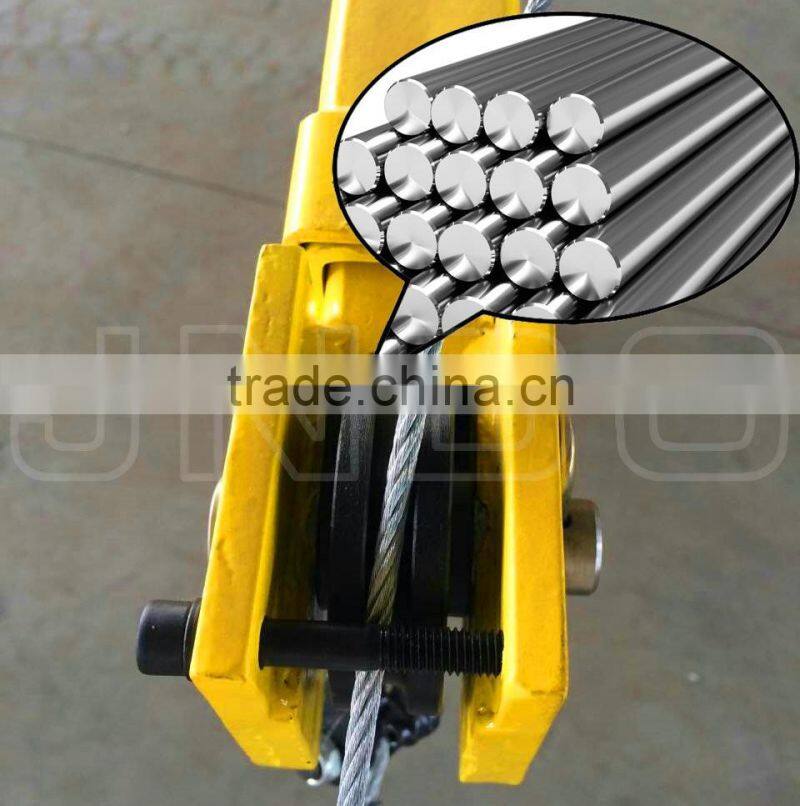

Fixed pulley machined from round bar steel
Elastic strong cable pressure spring

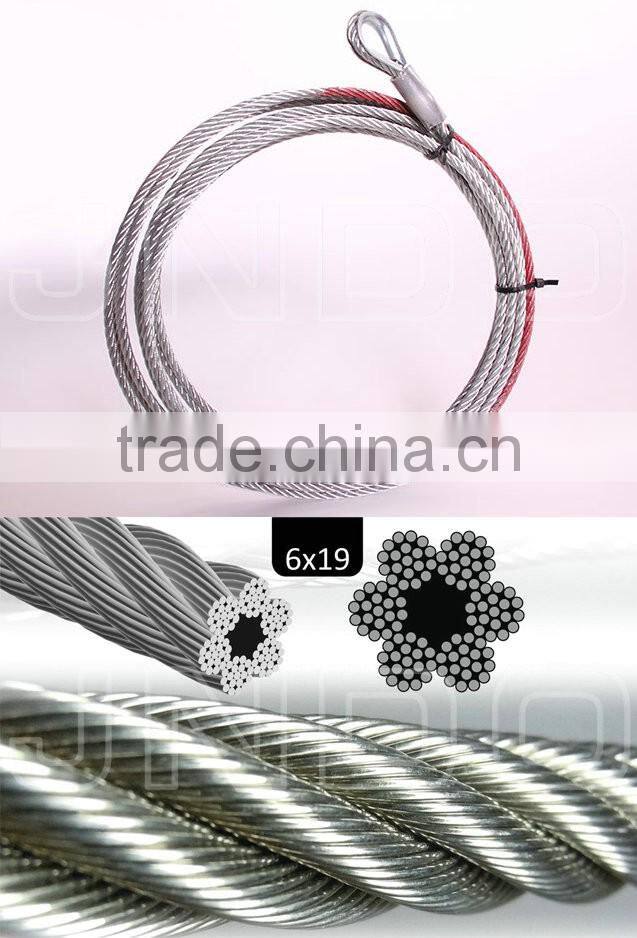

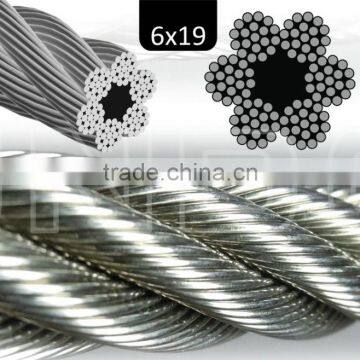

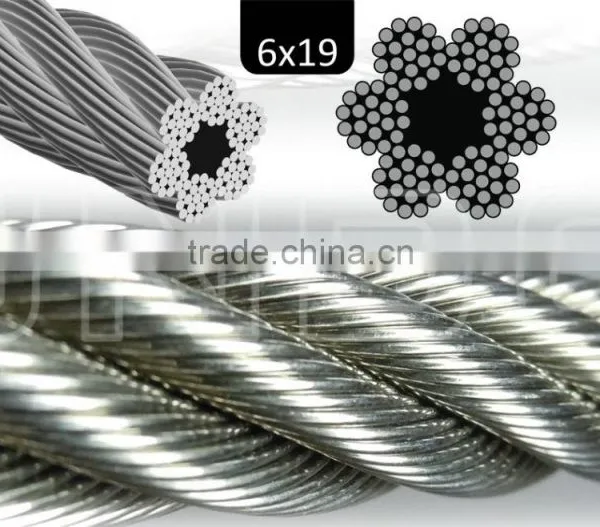

Bonus 5mm×6.5m galvanised aircraft steel cable
Special dual-purpose pin can be used as a handle

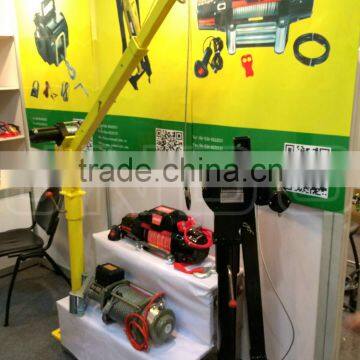

Yellow and black cranes at Canton Fair
Packed with 21mm thick honeycomb carton
Shandong JNDO Hoisting Equipment Co., Ltd. is a manufacturer specialized
in the research, development and production of high-quality made-in-China
winch/windlass,hoist,crane,jack,pallet truck,magnet lifter and
accessories etc.
Please feel free to contact us with any inquiries for products.
We aim at your MAXIMUM satisfaction
Your SUCCESS is our BUSINESS!
| Questions | Answers |
| Q1:How are your goods packed? | A:Generally, we pack our goods in wooden box with plate.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters. |
| Q2:What is your terms of payment? | A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Q3:What is your terms of delivery? | A:EXW, FOB, CFR, CIF. |
| Q4:How about your delivery time? | A:Generally, it will take 30 to 60 days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order. |
| Q5:What is your sample policy? | A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. |
| Q6:Do you test all your goods before delivery? | A:Yes, we have 100% test before delivery. |
1. Product, Package.
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get them.
5. When you get the goods and do some tests,please give us a feedback.If you have any problems,
contact us and we will offer you the way to solve them.
