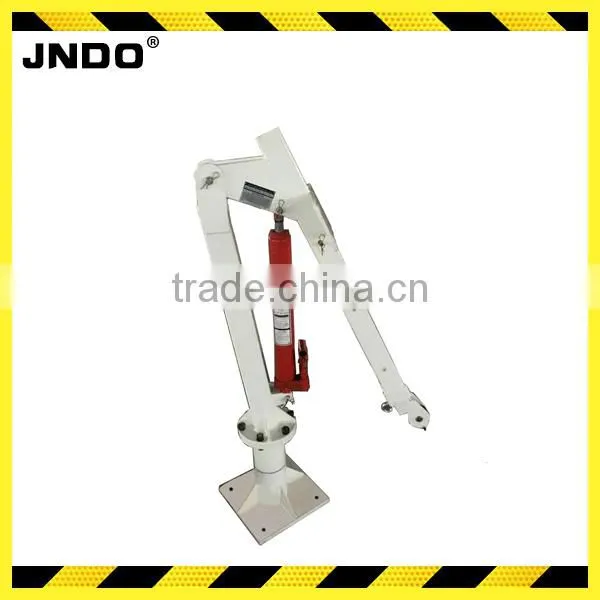

800kg 12V 360 Degree Engine Car Truck Lift
1.Compact design ,folds away when not in use.
2.Easily installed,on site or by a vehicle body builder.
3.Conforms to CE safety standard.
4.Unique technology of quick lifting.
5.Larger capacity than normal shop cranes at 3 position.
6.360ºswivel operating handle.
7.Forged heavy duty swivel hook.
8.125% overload testing before delivery.
We are also electric winch manufacturer ,we can assure the quality of
electric winch and the steel structure!!!
MODEL: | JN-HP1000 |
Single line Lifting Capacity(maximum) | 500kg |
Double-line Lifting Capacity(maximum) | 800kg |
Lifting Height Max.Std.(base to hook) | 1940mm |
Reach Max.(from center of rotation) | 1490mm |
Rotation (continuous) with Brake | 360° Manual |
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) |
Line speed with No Load | 3.6m/min single line |
Power Requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250x250x18mms |
Mounting Bolt Hole Pattern | 170x170mms |
Finish | Powder Coated |
Gross Weight of Crane (LBS) | 69KGS |
Color available | As you like |
/watch?v=w3AVdlTn3ZQ&t
/watch?v=Hytzy-ZuRic&t
/watch?v=VMbzn7euCaY
Established in 2006,Shandong Jndo Hoisting Equipment Co., Ltd. is a manufacturer specialized in the research, development and production of winch ,electric winch, vehicle crane. We welcome all the guests to visit our factory.
