Product Details
Place of Origin: | Shandong, China | Brand Name: | JNDO | Model Number: | G80 |
Structure: | Welded Chain | Function: | Transmission Chain | Material: | Stainless Steel |
Standard or Nonstandard: | Standard |
Product Description
Specifications
Industrial G80 lifting chain heavy duty lift chainDia..:6mm-32mm
Standard: DIN5685,EN818-2
Strength grade : M(4) ,S(6) ,T(8
Industrial G80 lifting chain heavy duty lift chain
G80 chain loading,black finishing,6mm,7.1mm,8mm,9mm,10mm,12mm,13mm etc,,,hoist chain
Detailed product information of G80 chain
1. Name: Load chain
2. Manufacturing standard: GB,ISO,DIN,BS,JIS,ASTM
3. Grade: G80,G100
4. Optional specification: minimum size,6x18mm;maximum size:24x102mm
5. Material:Cr,Ni,Mo high duty alloy
6. Surface finishing: Ecru(polishing), black, plastic spraying, galvanized
7. Safety factor: Minimum 4 times
8. Product marking: “G80”or “G100” stamped on the chain link
9. Packing method: Barrel or Gunnysack
10. Usage: used for lifting chain hoist no matter electric hoist or hand hoist. G80 and G100 load chain also can be used as assembly with lifting hook and ring to lift heavy weight.
11. Advantage: wind range using in any construction industry with, high strength and low cost. And it can be manufactured or cut in any diameter and length according to your special purpose.
Lifting chain G80 parameter:
Size dxp mm | Width | Approx Weight kg/m | Working Load Limit t | Test Load kn | Breaking Load min. kn | |
Inside min. a | Outside max. b | |||||
6x18 | 7.5 | 21 | 0.79 | 1.1 | 27 | 45.2 |
7x21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
8 x 24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
10 x 30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
11 x 43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 154 |
12 x 36 | 15 | 42 | 3.1 | 4.6 | 109 | 181 |
12.5 x 38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 196 |
13 x39 | 16.3 | 46 | 3.8 | 5 | 128 | 214 |
14 x 42 | 18 | 49 | 4.13 | 6.3 | 150 | 250 |
14 x 50 | 17 | 48 | 4 | 6.3 | 150 | 250 |
15 x 46 | 20 | 52 | 5.17 | 7 | 168 | 280 |
16 x 48 | 20 | 56 | 5.63 | 8 | 192 | 320 |
16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
16 x 64 | 23.9 | 58.9 | 5.11 | 8 | 192 | 320 |
18 x 54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
18 x 64 | 21 | 60 | 6.6 | 10 | 246 | 410 |
19 x 57 | 23.7 | 63.2 | 7.7 | 11.3 | 270 | 450 |
20 x 60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
22 x65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 610 |
22 x66 | 28 | 77 | 10.2 | 15.3 | 366 | 610 |
22 x 86 | 26 | 74 | 9.5 | 15.3 | 366 | 610 |
24 x72 | 32 | 82 | 12.78 | 18 | 432 | 720 |
24 x 86 | 28 | 79 | 11.6 | 18 | 432 | 720 |
26 x 78 | 35 | 91 | 14.87 | 21.3 | 510 | 850 |
26 x 92 | 30 | 86 | 13.7 | 21.3 | 510 | 850 |
30 x 90 | 38 | 105 | 19.6 | 28.3 | 678 | 1130 |
30 x108 | 34 | 98 | 18 | 28.3 | 678 | 1130 |
32 x 96 | 40 | 106 | 22.29 | 32.2 | 772 | 1286 |
34 x126 | 38 | 109 | 22.7 | 36.3 | 870 | 1450 |
34 x102 | 46.5 | 121.5 | 25.5 | 36.3 | 870 | 1450 |
36 X108 | 49.5 | 128.5 | 31 | 40.7 | 978 | 1630 |
38 x137 | 42 | 121 | 29 | 45.3 | 1086 | 1810 |
38 x 114 | 52 | 136 | 32 | 45.3 | 1086 | 1810 |
42 x 126 | 55.5 | 144.5 | 38.6 | 55.4 | 1332 | 2200 |

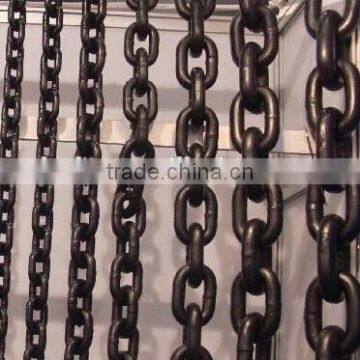

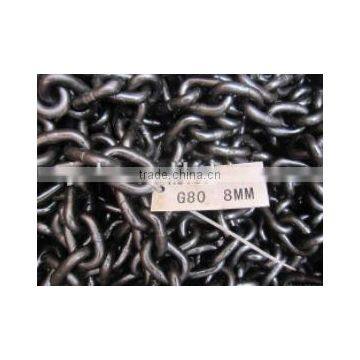

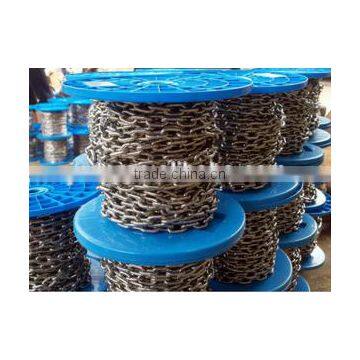

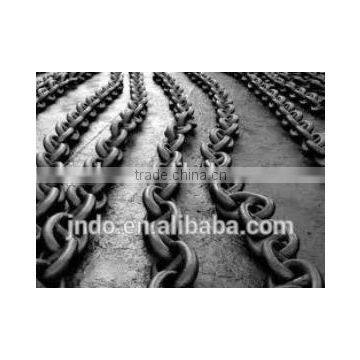

Lifting chain G80 photo show:

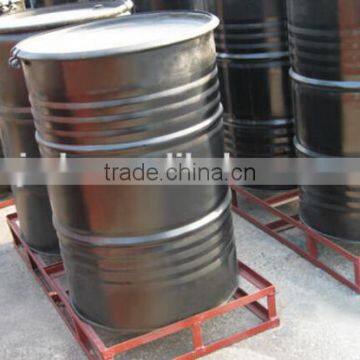

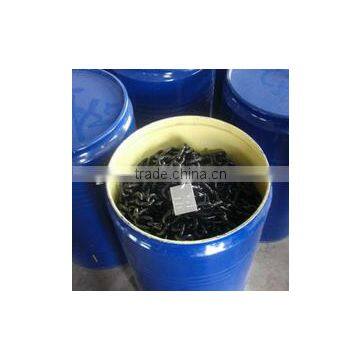

Packing Method
1. High quality carton or wooden case
2. Packing can be according to customer's requirement
Shipping Delivery
By sea to your nearest port
By air to your nearest airport
By express (DHL,UPS,FEDEX,TNT,EMS)to your door
When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
1. Q: What is our factory product range?
A: 1) We are specialize in chain block, lever block, electric hoist, permanent magnet lifter,crane scale,spring balance, mini crane, etc.
2) Hoist Accessories: Load chain, wire rope, rigging, hook ,pulley and shackles.
2.Q:How about sample policy?
A: Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don’t have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
3. Q: How to order?
A: Please send us your purchase order by Email or Fax, or you can ask us to send you Performa Invoice foryour order. We need to know the following information for your order:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
4. Q: What are the trade terms we can be accepted?
A: EXW, FOB, CFR, CIF.
5. Q: What are the payment terms for sample cost and order amount?
A: We accept the payment sent by West Union,T/T or L/C at sight.
6. Q: What advantages we have?
A: Rich experience: We have more than 20 years experience in this industry. That means, we can preview the problems for the orders and products. Therefore, it will make sure to reduce the risk of bad situation to happen.
Point to point service: There is one sale representative who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
