Home > Industrial Equipment & Components > Valve > Ball Valve > 3A Airtac Solenoid Valve the Valve

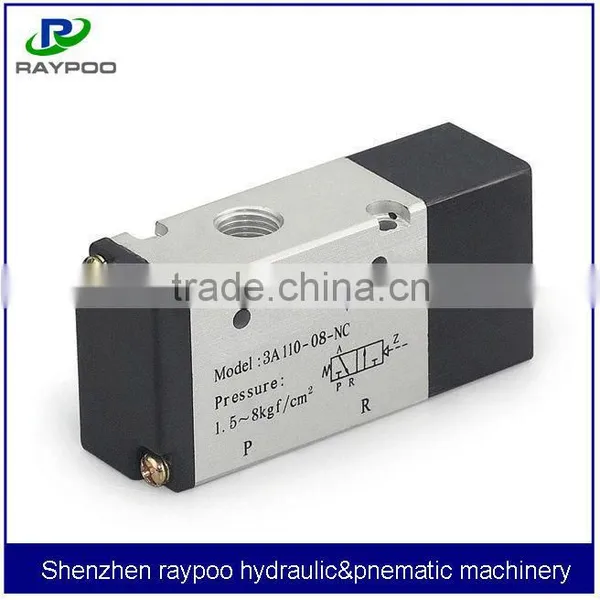

3A Airtac Solenoid Valve the Valve

Name: 3A Airtac Solenoid Valve the Valve
Brand: raypoo
SKU: 141614562
Availability: InStock

3A Airtac Solenoid Valve the Valve thumbnail-1

3A Airtac Solenoid Valve the Valve thumbnail-2

3A Airtac Solenoid Valve the Valve photo-1

3A Airtac Solenoid Valve the Valve photo-2

US$ 18 - 25 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Other, solenoid valve

Pressure:

Low Pressure

Contact Supplier Request Quote Chat Now

Shenzhen Raypoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Other, solenoid valve

Pressure Low Pressure

Power Pneumatic

Material Alloy

Temperature of Media Normal Temperature

Media Gas

Port Size 4/1-1/2

Place of Origin Guangdong, China

Model Number 3A

Brand Name raypoo

Application Other, air

Product Description

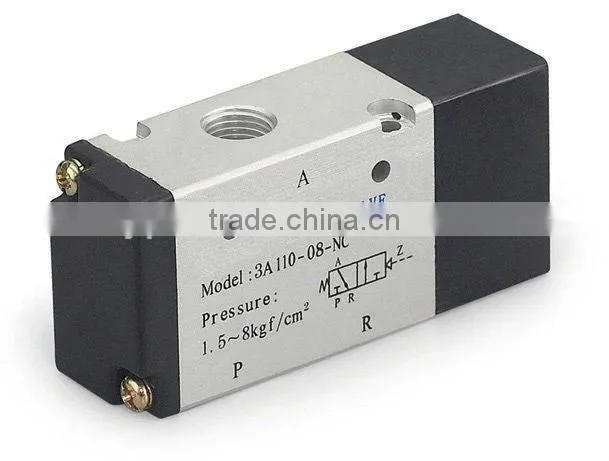

3A airtac solenoid valve the valve

1.Structure in sliding column mode:good tightness and sensitive reaction;

2.There are three medium functions of three-position air valves for your choice;

3.Two-position air control valve with two heads has memory function;

4.Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life;

5.No need to add oil for lubrication;

6.Integrate with the manifold to save installation space.

Example	4A	3	10	10	p
Meaings	Model	Code	Orifice size	Port size	Thread
Explain	4A:5/2 way 5/3 way Air valve	3:300 series	10:single air control 5/2 way 20:double air control 4/2 way 30C:double air control 5/3 way closed center 30E:double air control 5/3 way exhaust center 30P:double solenoid 5/3 way pressure center	08:G1/4” 10:G3/8”	Blank:PT T:NPT G:G

Model	4A310-08 4A320-08	4A330C-08 4A330E-08 4A330P-08	4A310-10 4A320-10	4A330C-10 4A330E-10 4A330P-10
Fluid	Air (to be filtered by 40um filter element)
Acting	Exterior control
Port size	In=out= Exhaust=1/4”		In=out=3/8” Exhaust=1/4”
Orifice size	25.0mm2 (Cv=1.40)	18.0mm2 (Cv=1.00)	30.0mm2 (Cv=1.68)	18.0mm2 (Cv=1.00)
Valve type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Lubrication	Not required
Operating pressure	0.15-0.8Mpa (21~114 Psi)
Proof pressure	1.5 Mpa (215 Psi)
Temperature	-20~70
Material of body	Aluminum alloy
Max.frequency	4 cycle/sec	3 cycle/sec	4 cycle/sec	3 cycle/sec
Weight	4A310:275g 4A320:365g	505g	4A310:275 4A320:360	505

Packaging & Shipping

How are orders packed and shipped?

Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

Can be customized according to customer requirements

Our Services

Raypoo Service

We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market. The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls. The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support. The Company's products include piston pumps, motors, valves controls manifolds, ,cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food. The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed. The products are sold as individual components or integrated into high performance applications.
