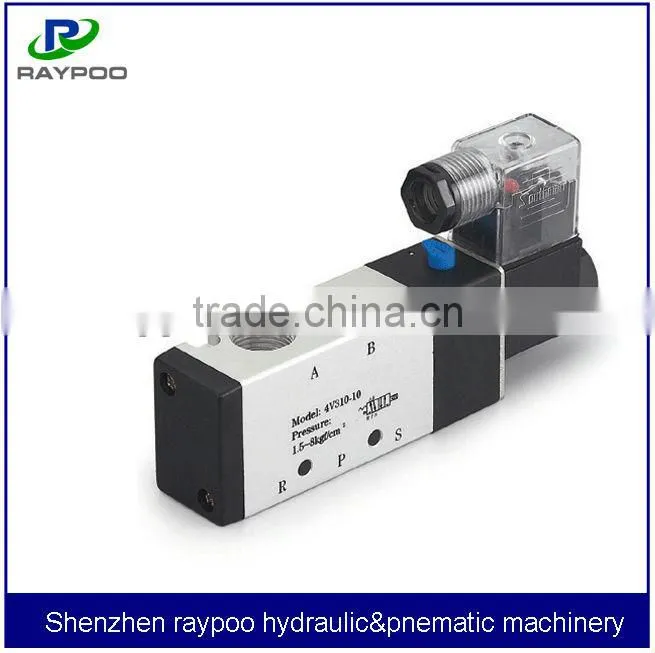

4v310 10 low pressure air solenoid valve
Example
|
4V |
1 |
10 |
06 |
A |
* |
P |
Meaings |
Model |
Code |
Valve type |
Port size |
Voltagee |
Electrical entry
|
Thread |
|
Explain
|
4v:
Solenoid valve
(5/2 5/3 way)
|
1:100 series |
10:single solenoid 5/2 way
20:double solenoid 4/2 way
30C:double solenoid 5/3 way closed center
30E:double solenoid 5/3 way exhaust center
30P:double solenoid 5/3 way pressure center
|
M5:M5
06:1/8”
|
A:AC220V
B:DC24V
C:AC110V
F:DC12V
|
Blank:
Terminal
I:Grommet
|
P:PT
T:NPT
G:G
|
Model |
4V110-M5
4V120-M5
|
4V130C-M5
4V130E-M5
4V130P-M5
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
|
Fluid |
Air(to be filtered by 40um filter element |
||||
Acting |
Piloted |
||||
Port size |
In=out=M5 |
In=out=1/8”
|
|||
Orifice size |
5.5mm2 (Cv=0.31)
|
5.0mm2 (Cv=0.28)
|
12.0mm2 (Cv=0.67)
|
9.0mm2 (Cv=0.50)
|
|
Valve type |
5port 2 position
|
5port 3 position
|
5 port 2 position
|
5port 3 position
|
|
Operating pressure |
0.15-0.8Mpa (21~114 Psi) |
||||
Proof pressure |
1.5 Mpa (215 Psi)
|
||||
Temperature |
-20~70 |
||||
Material of body |
Aluminum alloy |
||||
Lubrication |
Not required |
||||
Max.frequency |
5 cycle/sec |
3 cycle/sec |
5 cycle/sec |
3 cycle/sec |
|
Weight (g) |
4v110:120
4v120:170
|
200 |
4v110:120
4v120:175
|
200 |
|
Standard voltage |
AC220V,AC110V,DC24V,DC12V
|
||||
Scope of voltage |
AC:±15% ,DC:±10%
|
||||
Power consumption |
AC:3.5VA DC:3.0W |
||||
Protection |
IP65( DIN40050)
|
||||
Temperature calssifiction
|
B Class |
||||
Electrical entry |
Terminal,Grommet
|
||||
Activating time |
0.05 sec and below |
||||

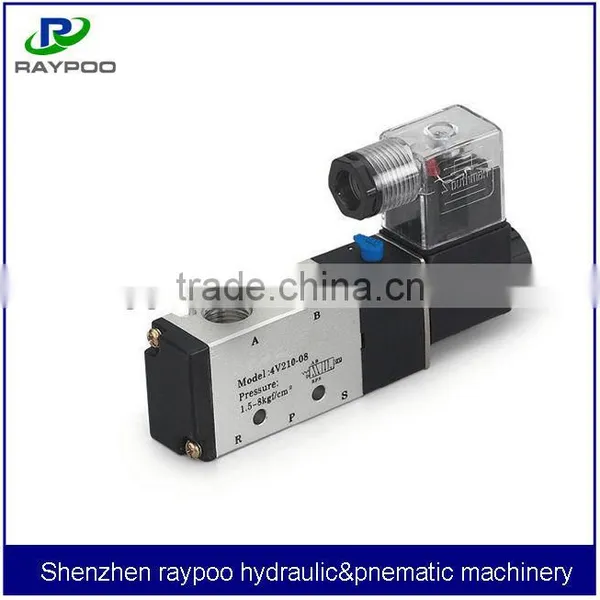

4v210-08 solenoid vavle:
Features:
Plug in type solenoid valve for easier to replace the weak coils.
All spools and bodies are interchangeable by retaining the same tolerance of internal leakage.
The wet type of solenoid valve, which is movable parts are immersed in the oil. It brings the feature of low noise.
High voltage test up to 1500v/min.
Insulation resistance test exceeds 100MΩ
The momentary signal shifting takes approx. 0.1 sec.
Spool shifting approx. 30,000,000 times
H class insulation coils which can resisted up to 180°C
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.
Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
