WE10 type 3x series wet solenoid operated directional valve             NG 10 pressure up to 31.5 MPa flowrate up to 120 L/min
	Model description
	Symbol
	Principle of operation
	WE type directional control valve is operated by the solenoid to control flow direction and on-off the valve is mainly comprised of valve body (1) one or two solenoids (2) control spool (3) and one or two reset springs(4) Under static condition the control spool (3) is on center or original position by reset spring (4) cexcept for pulse valve The control spool(3) is operated by wet solenoid(2) To ensure for right function the solenoid armature sleeve must be filled with oil The force of solenoid(2) is acting on control spool (3) it will push on required position while on static position. The oil allowably flows from P to A and B, to T or P to B and A to T When the solenoid (2) is off the control spool(3) will be pushed on original position by reset spring(4) Elective urgent operation (5) can control the spool (3) motion when the solenoid is off the spool position is not certain.
	WE10.3X/OC…type (only spool A. C and D possibility) This type is double solenoid for two position directional valve it has not positioner and reset spring When the solenoid is off the spool position is not certain WE10.3X/OFC…type (pulse operation) with positioner (only spool A. C and D possibility) This type is double solenoid for two position directional valve it has positioner but not reset spring When the solenoid is off the spool position is fixed Therefore it needn't to supply electricity for the solenoid continyously. Insert throttling plug (WE10…3X/…/B..type)When operating the valve if producing large flowrate that exceeds power limit of the valve which is allowable it needs an insert throttling plug.The plug is mounted on P port of the valve
	Technical Paramter
	Mounting position         Slective   The hightest ambient temperature   t °C   To 50   Weight             With 1 solenoid valve m kg   4.7(=); 3.9(-)     With 2 solenoid valve m kg   6.3(=); 4.7(-)   Max working pressure   Port A, B, P MPa   31.5   Port  T MPa   To 21(=);  to 16(-)   If working pressure exceeds allowance pressure for spool A and B of the valve port T must be as leakage port   Max flow L/min   To 120   Flow   Spool  V mm2   11(A/B→T); 10.3(P→A/B)   Area   Spool  W mm2   2.5(A/B→T)   Switching position   Spool  Q mm2   5.5(A/B→T)   Hydraulic oil     1) apply to perbunan seal viton seal     2) for use only viton seal    Mineral oil  (HL, HLP) DIN51 524 1);   Quick biologic dissolve oil according to VDMA 24 568   HETG (rape seed oil)   HEPG(polyglycol); HEES(synthetic ester)2);   Other oil as required   Oil temperature changing range °C    -30 to +80(with perbunan seal)   -20 to +80 (with viton seal)   Viscosity range mm2/s   2.8 to 500   Contaminant degree   The high contaminant class of oil is the ninth class of NAS 1638 recommend to use the oil filter with minimal filter fineness β10≥75
	Electricity data
	Volt type   DC AC   Available volt V 12, 24, 42, 60, 96, 110, 180, 205, 220 42, 110, 120, 220, 50/60Hz   Allowed volt (allowance volt ) % ±10     Power requirement W 35 -   Power keep VA - 90   Power impetus VA - 550   Work repeating   Continuous Continuous   Time repeating press   on ms 40 to 60 15 to 25   ISO 6403                                            off ms 20 to 30 20 to 30   Switching frequency time/h 15000 7200   Insulation degree according to DIN40050 IP65 IP65   Coil temperatare °C To +150 To+180   It is correlative stipulated electric wire must be grounded
	Characteristic curve (be measured when ν=41mm2 /s t=50°C)
	Function limit (be measured when ν=41mm2 /s t=50°C)
	Function limit for giving is useful for valve bearing two directions flow at the same time (such as from P to A, B to T at the same time) Because of producing flow strenth in the va;ve allowance function limit may be reduced more for single direction flow (such as from P to A, B port is plugged) This working limit is measured when solenoid is on working temperature owing volt 10% and no return pressure
	Valve with DC solenoid
	Valve with AC solenoid
	External dimensions: valve with DC solenoid cooperated with surface fine machining requirement
	1.three –way valve 1)  2. two- way valve with one solenoid (A,C,D,EA…)1)  3. two- way valve with one solenoid(B,Y,EB…)1)  4.plug of valve with one soleniol  5.1 solenoid “a”(grey plug-in connector)  5.2 solenoid “b”(black plug-in connector)  6.take off solenoid for space request  7.plug-in connector according to DIN43650 (rotatable 90 degrees)  8.take off plug-in connector for space request  9.take of manual urgent operation  plate  11.o-ring 12X2  12.it can mount adding-connector (TB) on oil block if necessary  13.mounting surface according to DIN24340, A type  ISO 4401 and CFTOP-RP 121H bed plate  G66/01(G3/8”)  G67/01(G1/2”)  G534/01(G3/4”) fixed screw of the valve M6X50 GB70-85-10.9  tighten torque MA=15.5Nm 1)size without manual urgent operation
	External dimensions: valve with AC solenoid cooperated with surface fine machining requirement
	1.three –way valve 1)  2. two- way valve with one solenoid (A,C,D,EA…)1)  3. two- way valve with one solenoid(B,Y,EB…)1)  4.plug of valve with one soleniol  5.1 solenoid “a”(grey plug-in connector)  5.2 solenoid “b”(black plug-in connector)  6.take off solenoid for space request  7.plug-in connector according to DIN43650 (rotatable 90 degrees)  8.take off plug-in connector for space request  9.take of manual urgent operation  plate  11.o-ring 12X2  12.it can mount adding-connector (TB) on oil block if necessary  13.mounting surface according to DIN24340, A type  ISO 4401andCFTOP-RP 121H bed plate  G66/01(G3/8”)  G67/01(G1/2”)  G534/01(G3/4”) fixed screw of the valve M6X50 GB70-85-10.9  tighten torque MA=15.5Nm 1)size without manual urgent operation
	Connection bed plate

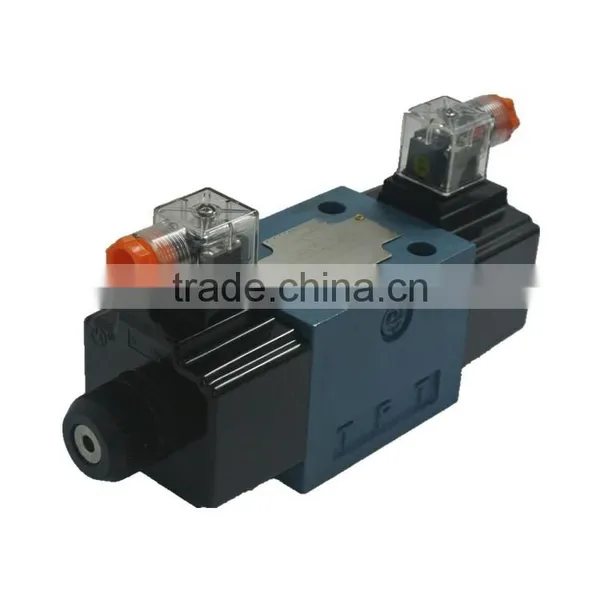

Valve pictures:
