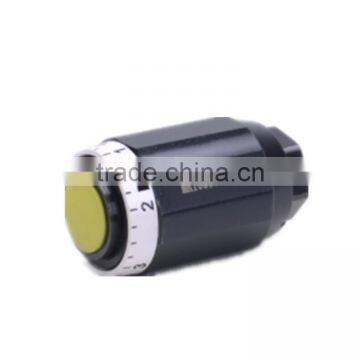

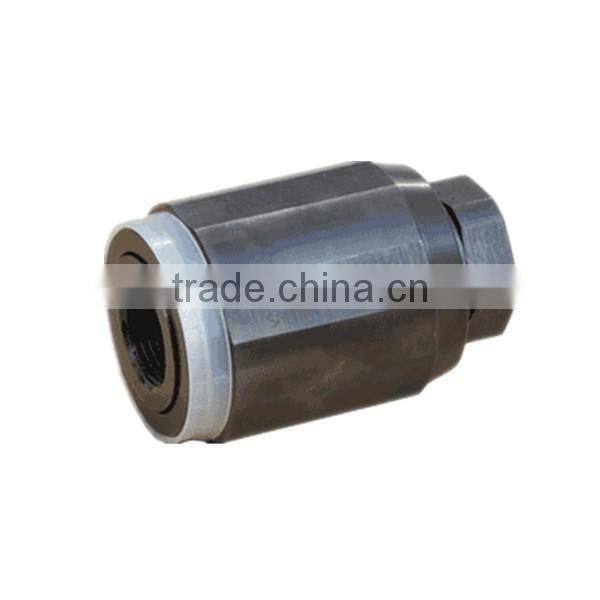

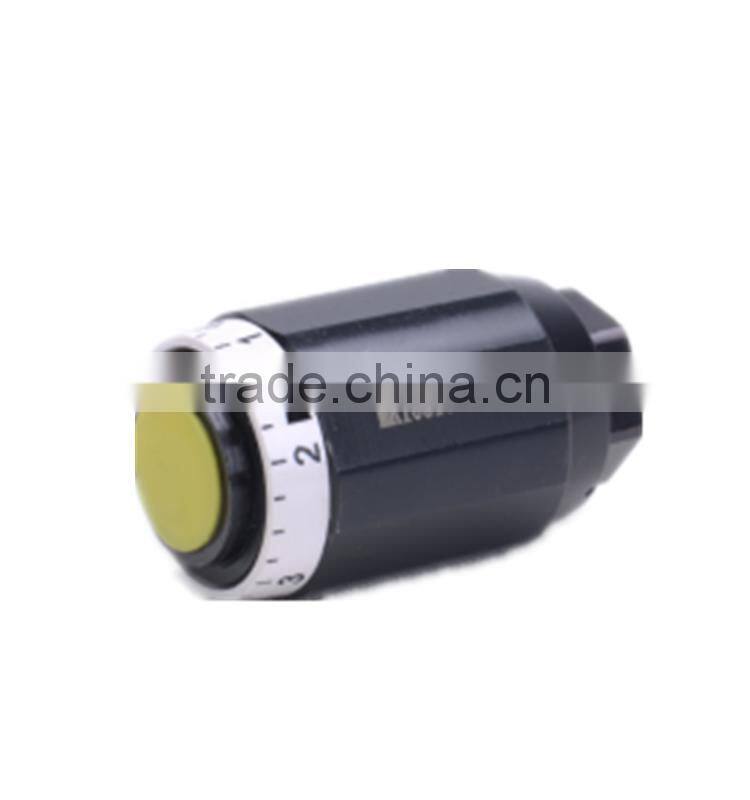

mk6g 10/2 way flow control valve
| Application | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Symbol of diagram | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

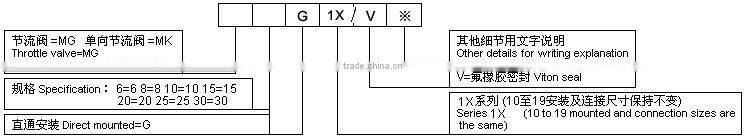

| Model Description | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical parameted | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Principle of operation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

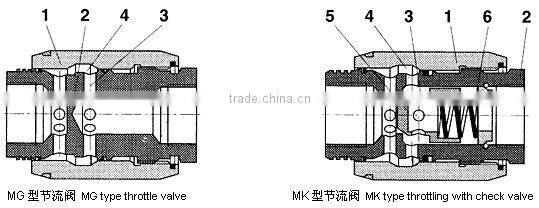

| MG and MK type valves are throttle valve and throttling with check valve which are correlative with pressure and viscosity. MG type (throttle valve) It can be bilateral throttling. The oil goes through the side bore (3) to valve body (2) and orifice (4) which is formed by adjustable cover (1). Rotating the cover (1) can continuously change the throttling section. MK type (throttling with check valve) When the oil flows to the valve by throttling direction, the spring (6) and the oil pressure will press cone spool (5) to valve seat for cutting off the oil. The oil flows through side bore (3) to valve body (2) and orifice (4) which is formed by adjustable cover (1). For reverse flowing, the oil pressure which is acting on cone spool (5) will lift the spool from valve seat. The oil is allowed to freely flow without action of throttling. Meantime, the partial oil which flows through ring interval will produce self cleaning effect. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

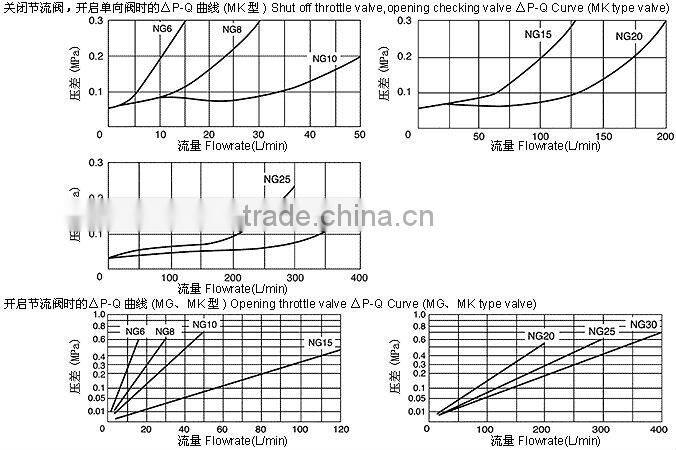

| Characteristic curve(test conditionν=36mm2/s, t=50°C) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

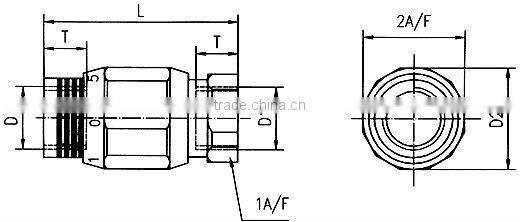

| Outer dimension | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.
Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
