Home > Industrial Equipment & Components > Valve > Ball Valve > Hydraulic Bypass Valve

Hydraulic Bypass Valve

Name: Hydraulic Bypass Valve
Brand: raypoo
SKU: 141614236
Availability: InStock

US$ 20 - 30 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Check

Pressure:

High Pressure

Contact Supplier Request Quote Chat Now

Shenzhen Raypoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Check

Pressure High Pressure

Power Hydraulic

Material Forged

Temperature of Media Medium Temperature

Media Oil

Port Size 6-30

Place of Origin Guangdong, China

Model Number S6 8 10 15 20 25 30

Brand Name raypoo

Application Other, hydraulic

Product Description

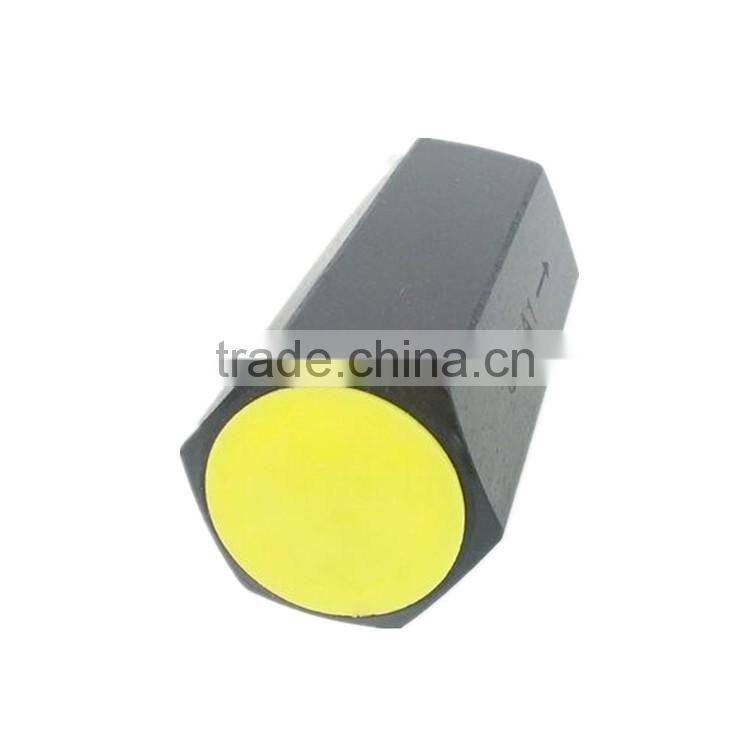

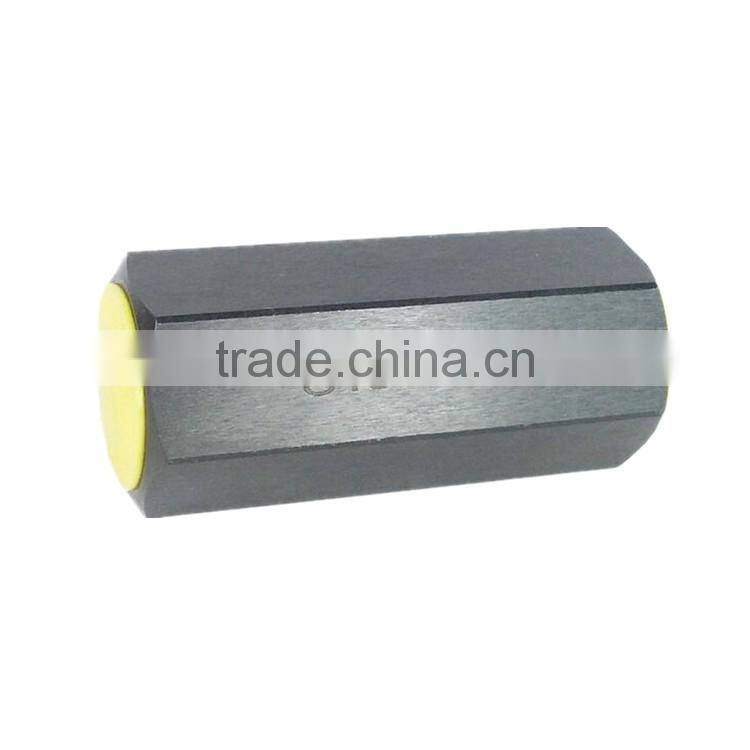

hydraulic bypass valve

S6A type check valve NG 6~30mm pressure up to 31.5 Mpa

Application

The action of S type check valve is for oil flowing from one dorection and other is for cutoff.

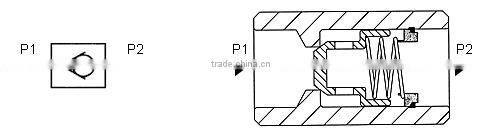

Symbol of diagram

Model Description

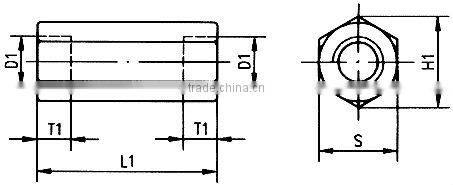

Outer form and connection size

Diameter mm	D₁		Size mm				Weight kg
Diameter mm	Inch size	Metric size	H₁	L₁	T₁	S	Weight kg
6	G1/4"	M14X1.5	22	58	12	19	0.1
8	G3/8"	M18X1.5	28	58	12	24	0.2
10	G1/2"	M22X1.5	34.5	72	14	30	0.3
15	G3/4"	M27X2	41.5	85	16	36	0.5
20	G1"	M33X2	53	98	18	46	1
25	G1¹/4"	M42X2	69	120	20	60	2
30	G1¹/2"	M48X2	75	132	22	65	2.5

Packaging & Shipping

How are orders packed and shipped?

Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements

Our Services

We provide hydraulic systems, hydraulic power pack, hydraulic parts(pumps, valves, motors, cylinders, accumulators and other accessories), pneumatic products (valves, cylinders, fittings and other accussories).

We also provide hydraulic system design and technical consulting

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :

FAQ

Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.

Q.What are your quality control procedures?

A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
