hydraulic powerpack
Hydraulic Power Pack:
It is an independent hydraulic device. It feeds fuel and controls the direction, pressure, rate of oil flow according to the requirements of drive device (the host). It applies to various hydraulic machinery if the host can separates from the hydraulic equipment. Customers after purchase will only need to connect the hydraulic station and actuating equipments (tanks and oil motors) on host with pipes. Then hydraulic machinery can realize various regulations of action and cycle work.
Structure of Hydraulic Power Pack:
Hydraulic pump station is composed by pump device, integrated block or valve combination, tank, and electrical box.
Functions of each component :
Pump device——there are motor and oil pump on it. It is the power resource of hydraulic station and will convert the mechanical energy into hydraulic fluid power energy.
Integrated block——it is composed by hydraulic valve and channel, which can adjust the direction, pressure and rate of hydraulic fluid.
Valve combination——is the plate valve installed in the riser which is tube connections behind board with the same function of integrated block.
Tank——it is a semi-closed container welded by steel plate and equipped with oil-filter screen, air filter, etc. to be used for oil storing, cooling and filtering.
Electrical box——it is divided into two forms. One is set with the external lead terminal board; another one is equipped with a full set of control appliances.
Working Principle of Hydraulic Power Pack:
a)Motor drives pump rotating, pumping oil and converting the mechanical energy into hydraulic fluid pressure energy.
b)Hydraulic oil goes through integrated block (or valve combination).
c)After the direction, pressure and rate of the hydraulic oil is adjusted by hydraulic valves, it is transported to cylinder or motor of the hydraulic machinery by external pipeline. Thus the pump station successfully controls oil transmission direction, strength and speed of hydraulic machinery and promotes a variety of hydraulic machines to work.
How are orders packed and shipped?
Different products with the suitable package such as carton, wooden box or wooden pallet, to protect the products from the overseas transportation.
Can be customized according to customer requirements
We also provide hydraulic system design and technical consulting
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.

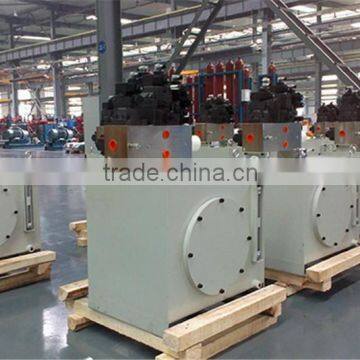

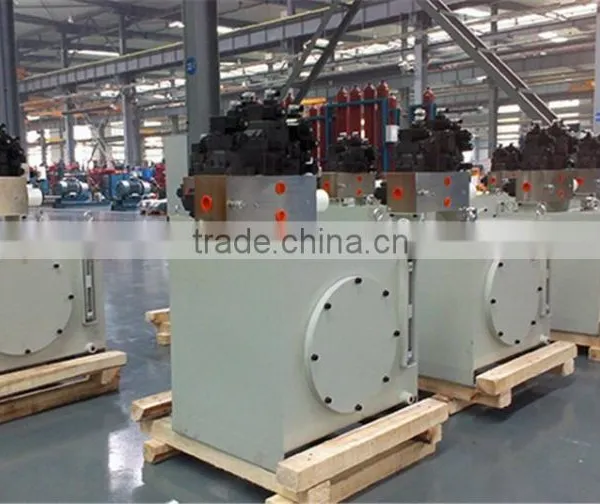

Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
