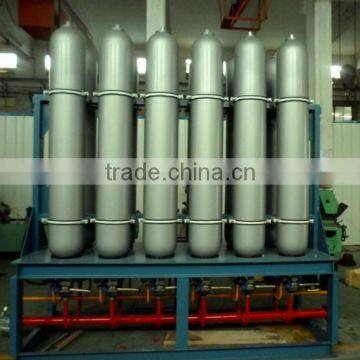

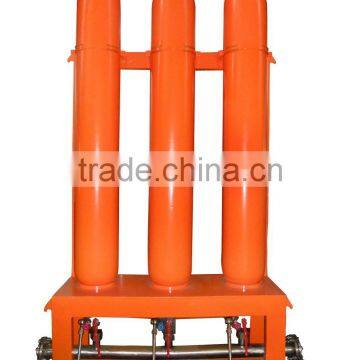

Bladder accumulator (ASME Standard) for hydraulic plate belt slitting machine

1. Model Code

BA(TA) _ * / *_ *_ *

    1        2   2  4 5

1 Structure Type: Bottom dismantlement accumulator—BA

               Top dismantlement accumulator—TA1, TA2

2 Volume: 0.15~15gal

3 Maximum Working Pressure: 3000PSI~5000PSI

4 Connection Type: T-thread connection, F-flange connection

5 Working Medium: O-hydraulic oil, W-water

                  BA type                                         TA1 type                                                          TA2 type

1.Protective cap       10. Screw plugging

 2. Gas charging valve   11. Washer

 3. Seal ring           12. Rubber ring(with Supporting ring)

 4.Block nut           13. Anti-extrusion ring (Iron)

 5. Nameplate           14. Seal ring

  6. Seal ring           15. Anti-extrusion ring (PTFE)

  7. Bladder             16. Chuck ring

 8. Shell               17. Block nut

 9. Oil valve body

Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

Can be customized according to customer requirements

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

 Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's  involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :
