large capacity hxq series piston accumulator
1. General
Piston accumulator of HXQ is an important hydraulic auxiliary part in a hydraulic system, its functions are storing energy, stabilizing pressure, compensating volume, absorbing impact, boosting pressure and so on. Piston accumulators produced by our company have complete product specification and novel struction, and have advantages if low noise, no vibration, high seal performance, no leakage, long service life, high efficiency of hydraulic equipment, convenient maintance.
2. Operating Principle
The compressibility of a gas (nitrogen) is utilised in accumulators for storing liquids. Piston accumulators are based on this principle. A piston accumulator consists of an fluid section and a gas section with the piston acting as a gas-proof screen. The gas section is pre-charged with nitrogen. The fluid section is connected to the hydraulic circuit so that the piston accumulator draws in fluid when the pressure increases and the gas is compressed. When the pressure drops, the compressed gas expands and the stored fluid is displaced into the circuit.
3. Model Code
HXQ _ X_ X / X_ X
1 2 3 4 5
1 Code Name: Piston Accumulator
2 Connection Type: L-thread connection, F-flange connection
3 Nominal Volume: 0.25~250L
4 Nominal Pressure: 10, 20, 31.5MPa
5 Working Medium: Y-hydraulic oil, R-emulsion

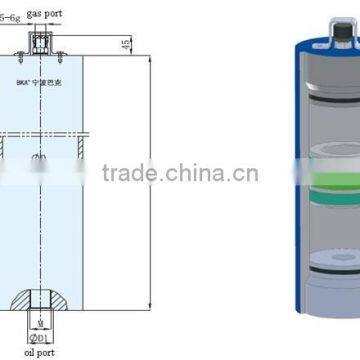

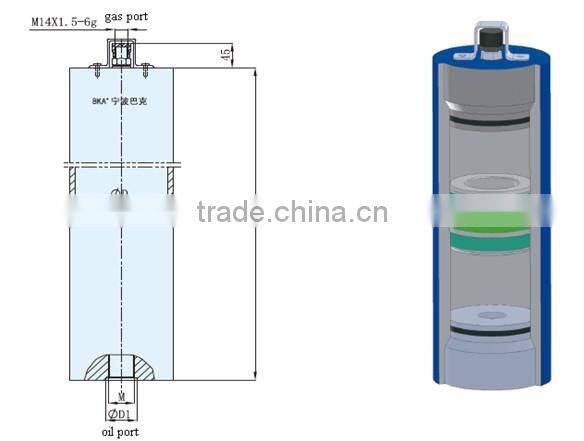

4. Structure and Dimension
Model |
Nom. Pressure (MPa) |
Nom. Volume (L) |
Dimension (mm) |
Weight (kg) |
|||
D |
M |
D1 |
L |
||||
HXQ-L0.49/X-X |
10
20
31.5 |
0.49 |
63 |
M27×2 |
35 |
310 |
10.9 |
HXQ-L1/X-X |
1 |
80 |
380 |
13.8 |
|||
HXQ-L2/X-X |
2 |
580 |
19.8 |
||||
HXQ-L2.5/ |
2.5 |
100 |
M42×2 |
50 |
540 |
26.2/31.2 |
|
HXQ-L5/X-X |
5 |
860 |
35.4/43.3 |
||||
HXQ-L7.5/X-X |
7.5 |
1180 |
44.5/55.4 |
||||
HXQ-L10/X-X |
10 |
180 |
M60×2 |
70 |
655 |
94.2 |
|
HXQ-L16/X-X |
16 |
890 |
140.4 |
||||
HXQ-L20/X-X |
20 |
1050 |
118.7 |
||||
HXQ-L25/X-X |
25 |
1250 |
175.0 |
||||
HXQ-L32/X-X |
32 |
1520 |
200.9 |
||||
HXQ-L32/X-X |
32 |
2030 |
249.8 |
||||
HXQ-L50/X-X |
50 |
2230 |
269.0 |
||||
HXQ-L50/X-X |
50 |
250 |
M72×2 |
80 |
1450 |
269/369 |
|
HXQ-L60/X-X |
60 |
1660 |
294/440 |
||||
HXQ-L80/X-X |
80 |
2060 |
341/523 |
||||
HXQ-L100/X-X |
100 |
2445 |
390/608 |
||||
HXQ-L120/X-X |
120 |
2880 |
439/639 |
||||
HXQ-L130/X-X |
130 |
400 |
1620 |
1093/1286 |
|||
HXQ-L150/X-X |
150 |
1780 |
1163/1375 |
||||
HXQ-L180/X-X |
180 |
2020 |
1266/1508 |
||||
HXQ-L200/X-X |
200 |
2180 |
1335/1596 |
||||
HXQ-L250/X-X |
250 |
2570 |
1508/1816 |
||||
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
Raypoo Service
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market. The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls. The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support. The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve valves controls manifolds, hydraulic cylinders,Non-standard hydraulic system,Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food. The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed. The products are sold as individual components or integrated into high performance applications.
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
