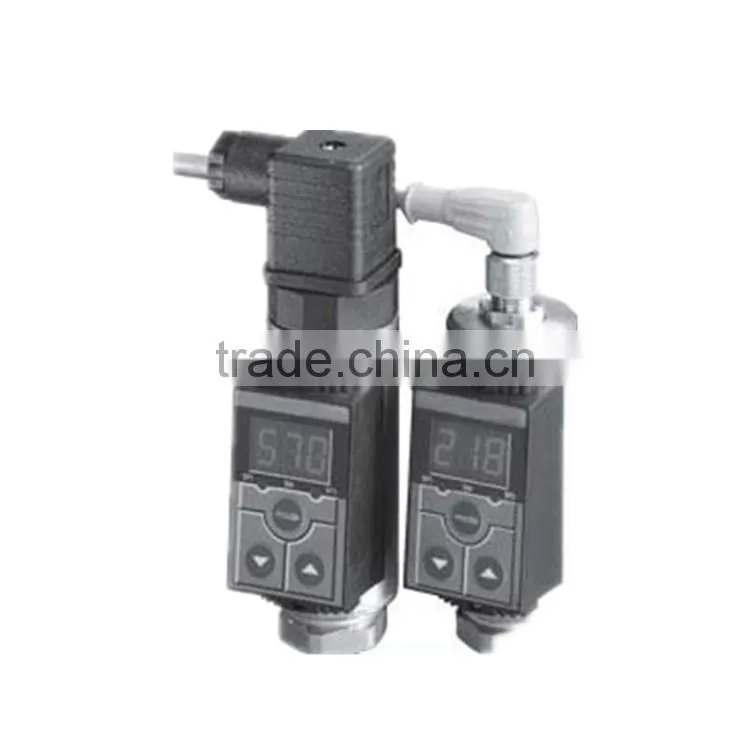

EPS300 Electronic pressure switch
The EPS300is a compact electronic pressure relay, with digital display, with one way or two way switch quantity output; with one way or two way switch with analog output, the switching point and corresponding delay can be achieved through the touch button set, according to different type, different output form to adaptation field control demand.
The device has a number of additional regulatory function, such as switching time delay, output N/O or N/C functions.
EPS300 is mainly used in hydraulic Qigong system pressure control and indication, and the need for high frequency switch or switch and high precision mechanical type pressure relay can not be competent.
The device is the accumulator pressure, unloading control or pump and compressor control ideal control element.
Set option All functions can be performed by easy operation of the touch key set, in order to prevent the apparatus is improper operation of the set value lock.
Switching point and / or reply delay setting range Range switching point delay increment
MPa MPa MPa MPa
1.60.03-1. 60.01-0.58 0.01
4 0.06-40.02-3.96 0.02
10 0.15-100.05-9.90 0.05
25 0.3-250.10-24.80 0.10
40 0.6-400.02-39.60 0.20
60 1.5-600.50-59.00 0.50
Switching point, reply delay
Switching point is defined as the set pressure value, reply is to switch the output back to the initial state of the pressure value, switching point and recovery point between the output value is defined as the response delay. As the pressure rises when the switching point when the pressure value to switch the output state changes, the output state is maintained until the pressure falls below reply point ( switching point is subtracted from the reply delay is the recovery point ), switching the output back to the initial state, switching back to point by setting the delay set.
Installation
EPS300pressure relay with a G14A external thread ( DIN3852) pressure joint, can direct pressure will relay installed in the pipe or hydraulic valve block. In critical applications ( such as severe vibration impact ) EPS300 pressure relay must be mechanically decoupled, the pressure on the joints must pass the test hose connection, is installed in the panel to provide a fixed frame ( LYM 300)
The use of conversion connector can ensure that the panel to the observer ( LYM14) Characteristic Ceramic piezoresistive pressure sensitive element or stainless steel thin film pressure sensitive element Compact structure, firm Precision grade, solid;
Three digit display Keystroke programming, simple operation Switching point and reply delay independent and reliable Has many additional functions Additional function Switching output direction adjustable ( normally open or closed function ) On delay in0.00-75 second adjustment Switching back delay in0.00-75 second adjustment Display options ( the current pressure, the switching point1, point2 black screen of display switch ) After the zero correction can be full range
