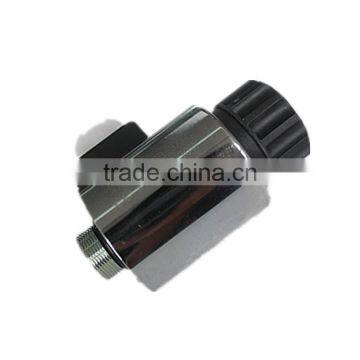

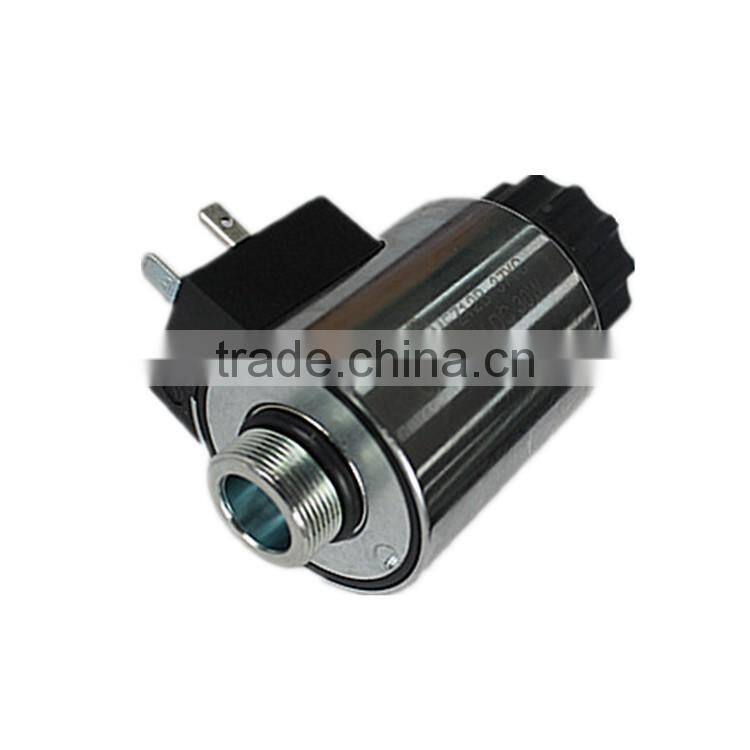

MFZ12B-37YC Hydraulic Solenoid Valve Coil

MFZ12B-37YC Hydraulic Solenoid Valve Coil photo-1
MFZ12B-37YC Hydraulic Solenoid Valve Coil photo-2
US$ 15 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, switch solenoid
Model Number:
MFZ12B-37YC
Brand Name:
RAYPOO
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, switch solenoid
Model Number MFZ12B-37YC
Brand Name RAYPOO
Place of Origin Guangdong, China



Product Description

MFZ12B-37YC hydraulic solenoid valve coil



Purpose

This solenoid is applied to single-phase full wave rectifying DC power supply control circuits, which voltage can reach 220V, as a power component of the hydraulic solenoid directional valve. It can be used in NG6, NG10 screw connected solenoid directional valve of REXROTH.



Usual Service Conditions

  • It can be installed randomly.
  • There is no gas or dust which can corrupt metal or destroy nonconductor. Or, it will affect the products lifetime.
  • The solenoids fit for the continuous duty system or intermittent periodic duty system.
  • The reasonable wave range of supply voltage is between 85%-110% (any special requirements is possible).
  • The protection is IP65 class.

Key Parameters

Code

MFZ12B-37YC

Rated Voltage                                      (V)

24 110

Rated Force                                        (N)

≥30

Rated Stroke                                    (mm)

5

Total Stroke                                      (mm)

≥5.1

Consumed Power                               (W)

≤30

Static Oil Pressure                              (MPa)

21

Operating Frequency                         (T/h)

12000



Purchase Code

Valve-Using Solenoids

DC

Design Code

Rated Force(N)

Wet

MF

Z

12B

30

YC

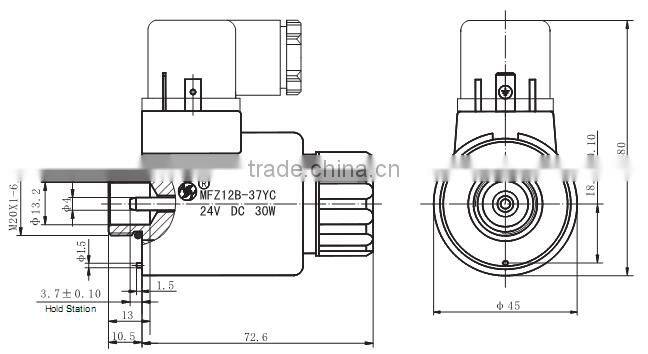

Externality & Installation Dimensions

Product Code: MFZ12B-37YC





MFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coil



Packaging & Shipping

How are orders packed and shipped?

      Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).



   Can be customized according to customer requirements

Our Services

 Raypoo Service



We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.



Could Raypoo offer OEM service?



Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.



Do Raypoo products come with a warranty?



Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.



Company Information

     Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market. The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls. The Company's  involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support. The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve valves controls manifolds, hydraulic cylinders,Non-standard hydraulic system,Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food. The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed. The products are sold as individual components or integrated into high performance applications.



 MFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coilMFZ12B-37YC hydraulic solenoid valve coil



FAQ

 Q.How to request a manufacturing quotation from Raypoo?

 A.Give us a call or send us an E-mail with your purchase request.



Q.What are your quality control procedures?



A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
