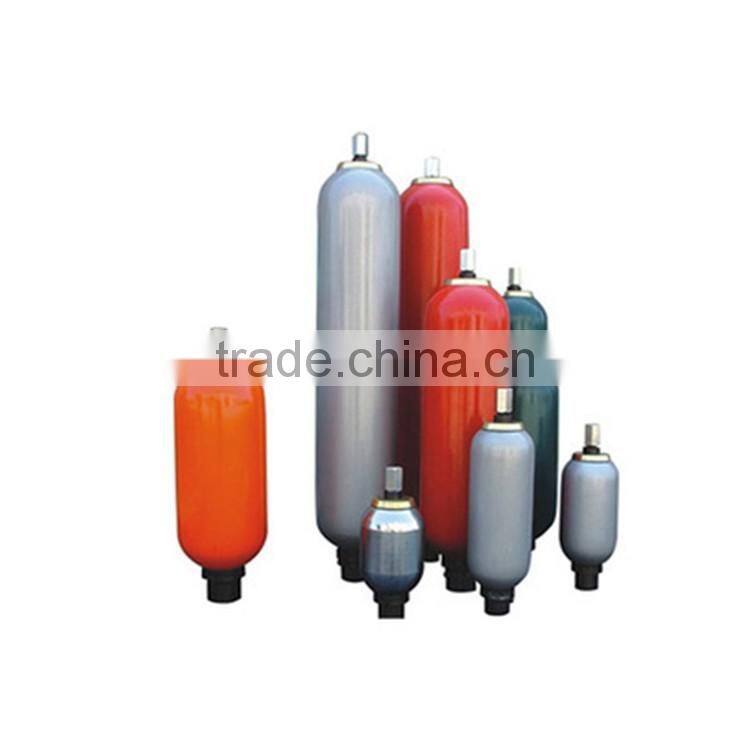

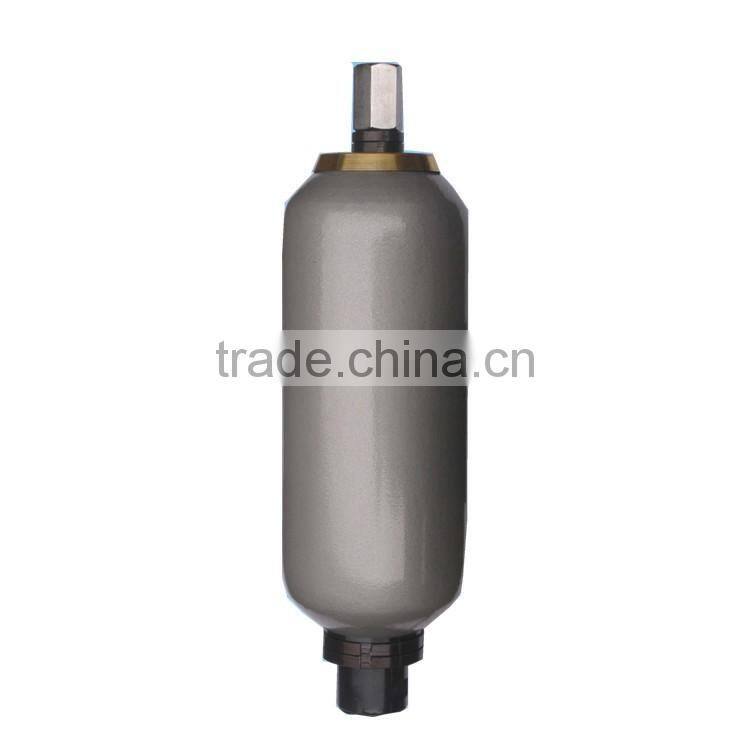

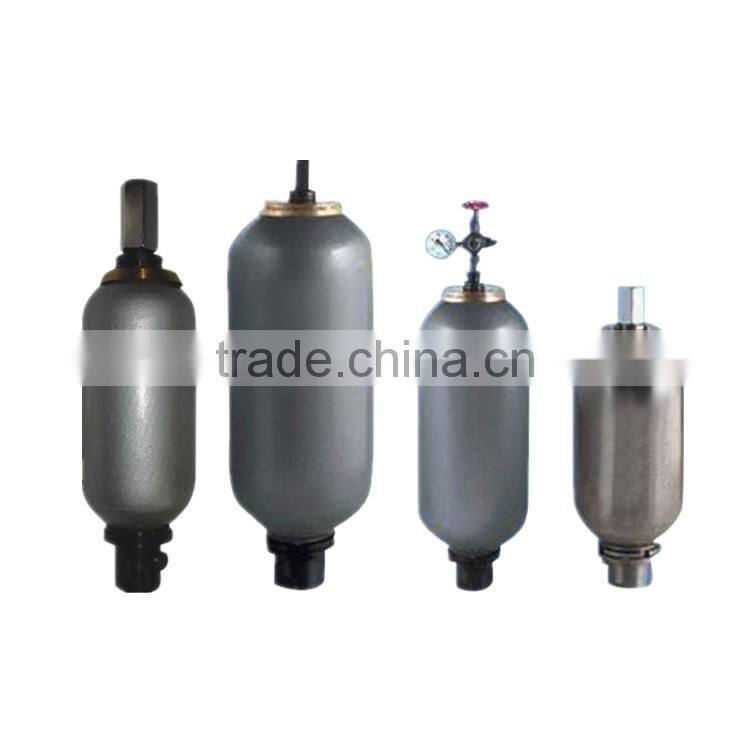

NXQ hydraulic accumulator

	The accumulator can be accumulated the energy replenished leakage provided constant pressure sucked in pulse pressure etc It can be used for auxiliary energy power and urgent energy power Series NXQ rubber bag accumulator is adopted rotary-press forming with seamless pipe technique It features compact structure beautiful look light weight small inertia and steady function The design is conformed to JB/T7036-93 "Technieal condition for hyd-accumulator" It is used oil-base hydraulic oil medium in system The bag of cooler is charged with nitrogen for normal working ranged into -10~+70 Easy operation large series production capacities welcome to orders
	Model description
	Technical specification and outer dimension
	Model Pressure Mpa Capacity L Basic size  Weight kg M Φ H L NXQ-L0.63/* 10 20 31.5 0.63 M27X2 89 50 305 4.5 NXQ-L1/* 1 M27X2 89 50 430 6 NXQ-L1.6/* 1.6 M42X2 152 66 361 12.5 NXQ-L2.5/* 2.5 M42X2 152 66 428 15 NXQ-L4/* 4 M42X2 152 66 538 18.5 NXQ-L6.3/* 6.3 M42X2 152 66 708 25.5
	Charge tool (according to accumulator of pressure for use)
	Pressure of accumulator Mpa Model of charge tool Pressure scale range  Precision degree 10 CQJ-16 P=0~16 1.5 20 CQJ-25 P=0~25 1.5 31.5 CQJ-40 P=0~40 1.5
	Application and feature
	Application Feature  Sucked shock of hydraulic Accumulator is normal mounted before the directional valve or the eylinder It can suck or slow sudden exchanging clirection or suddden stopping of the cylinder for shock perssure  For hydraulic air spring  Spring rate KT is equal equivalent cylinder action force causing by gas bag pressing for differential pressure divided equivalent cylinder of position movingmean KT=(P2-P1)A/(V1-V2)A(Pa.m) In formula P1P2-min operating pressure and max. operating pressure Pa A effective area of equivalent cylinder m2 V1.V2-volume of gas for pressure P1and pressure P2 m3 Reducing flowate of pulse and pressure  Piston pump a little gears contacting gear pump relief valve etc in hydraulic system They can cause hydraulic pressure flowrate for pulse Mounting accumulator can be reduce hydraulic pulse and noise For heat expand compensator When the temperture is raising up in sealed hydraulic system The hydraulic oil is produced expand of volume Because fluid expand ratio is general bigger then pipe material expand ratio It will cause oil pressure for raising up The avvumulator can suck up fluid volume of increment protect exceed pressure ensure satety When the temperature is reducing the fluid will contract The accumulator will supply fluid for requiring in system  Improving on frequency property  When hydraulic system is adopted compensative of pre variable mechanism time constant is for bigger the avvumulator can quickly release pressure for improving on frequency property

Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

Can be customized according to customer requirements

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

 Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's  involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.
