Potato Chip IQF Quick Freezer Machine
US$ 67,680 - 195,040
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Sanshon
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Advanced Industrial Commercial SSD Model Fruit, Vegetable, Seafood Tunnel Quick Freezing Blast FreezerUS$ 20,000 - 50,000MOQ: 1 Set -
Sanshon SSD Model Tunnel Quick Blast Freezer MachineUS$ 29,400 - 66,500MOQ: 1 Set
-
China Fluidized IQF Freezer Machine PriceNegotiableMOQ: 1 Set
-
Advanced LSZ Model Fluidized IQF Vegerable and Fruit Frozen MachineUS$ 30,000 - 150,000MOQ: 1 Set
-
Advanced Sanshon LSZ-0.5 Vegetable And Fruit Fluidized Meat Quick Freezing MachineUS$ 50,000 - 60,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
Sanshon
Model Number
LSZ
Type
Other, Freezer
Voltage
380V/220V
Power(W)
64.7KW
Certification
CE ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
individual quick frozenair defrost system
frozen time: 30~60min, +35/-40C
for various vegetable , fruits, meat, pasta
Technician Parameter( 2t/h as example):
Capacity:2000Kg/h(based on garden beans)
Freeze chamber dimension: 9.0m×4.4m×3.65m (L*W*H)
Overall dimension: 11.2m×4.4m×3.8m (L*W*H)
Freezing time:6-60mim(frequency inverter control)
Product inlet temperature:+15°C
Outlet temperature:-18°C
Chamber inside temperature:-33~-35°C
Width of convey belt:1100mm
Convey belt motor (matched with frequency inverter):1.5Kw
Centrifugal air fan: 5sets in total(high air volume, anti-vibration design)
Belt stir device:5 suits each,individual control of each
Aluminum evaporator: 2 groups in total
Mesh belt rinsing and blow dry device:1suit
Cold consumption:325Kw(temperature:+35°C/-40°C)
Power:64.7Kw(380V,50HZ)
Refrigerant gas: R22 or R717

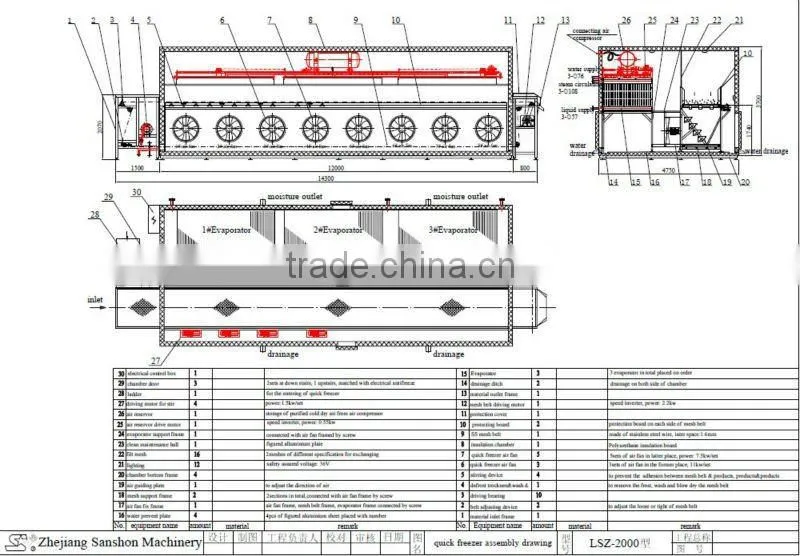

Photo of each parts:
