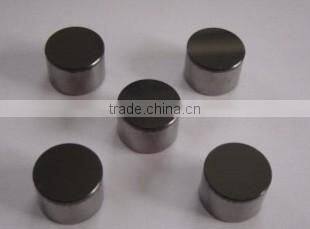

PDC Cutter Blank

ZM diamond PDC cutters

PDC(polycrystaline diamond compact) drill bits is a new product after the hot-pressed and electroplated drill bit recent years.With special hith-frequency weldin techniques.PDC of high wear resistant to the body as cutting edges.PDC bits are mainly used for geological prospecting,coal exploration,water conservancy and power engineering,etc.

diameter(D)            Height(T)            Diamond Thickness(t)          Diamond Chamfer(mm)

(mm)                      (mm)                   (mm)                                 (mm)

6.00±0.03             8.00±0.10            0.90±0.20                        0.30±0.10

8.00±0.03             8.00±0.10            0.90±0.20                        0.30±0.10

13.3±0.03             3.53±0.10            0.90±0.20                        0.30±0.10

13.44±0.03           8.00±0.10            1.50±0.20                        0.30±0.10

13.44±0.03          13.20±0.10           1.70±0.20                        0.30±0.10

15.88±0.03           8.00±0.10            1.70±0.20                        0.30±0.10

15.88±0.03          13.20±0.10           1.70±0.20                        0.30±0.10

19.05±0.05           8.00±0.10            2.00±0.20                        0.30±0.10

19.05±0.05          13.20±0.10           2.00±0.20                         0.30±0.10

19.05±0.05          16.31±0.10           2.00±0.20                         0.30±0.10

19.05±0.05          25.00±0.10           2.00±0.20                         0.30±0.10
