Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > ZM PDC Drill Bit

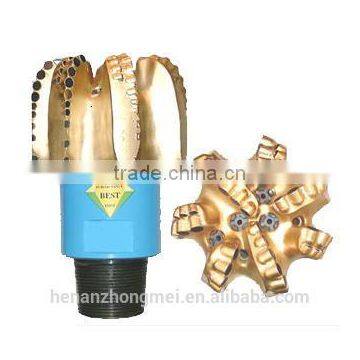

ZM PDC Drill Bit

Henan Zhongmei Drill Tool Co., Ltd.

US$ 10 - 1,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Model Number:

all types

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Chinese port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name ZM

Model Number all types

Type Other, Center Drill Bit, Drill Bit

Machine Type Drilling Tool

Certification Other, ISO9001

Material Other, Diamond, High Manganese Steel

Processing Type Forging

Use Other, Well Drilling, Coal Mining

Specifications

1.PDC oil drill bits
2.do ZM brand oil drill bits OEM
3.ISO 9001:2008 produce control
4.API pdc oil drill bit

PDC Oil Drilling Bits

Optimized short parabolic profile, suitable for drilling soft to medium soft homogeneous formations
Asymmetrical evolute spiral blade cutter placement makes the bit more stable during drilling
Primary and secondary cutting structure extends bit life
CFD hydraulic balance design results in better bit cleaning and cutting removal
Combined utilization of high performance PDC compacts significantly prolongs bit life

Bit size (in)	Specifications				Recommended drilling parameters
Bit size (in)	No. of cutters (pcs)	Gage length (mm)	No. of nozzles (pcs)	API reg. pin size (in)	WOB (kN)	RPM (r/min)	Mud flow rate (l/s)	HHP (w/mm2)
8 1/2	26	85	4	4 1/2	30-100	50-250	25-35	2-7
12 1/4	41	120	6	6 5/8	50-160	50-250	44-60	2-7

tungsten carbide martrix pdc oil bit possesses high wear resistant and impact resistant , parabolic crown profile and maxmizes junk slot can clean bit better and prolong the bit working life : the main structure feat, applying drylaulic balance designed , renewal nozzles and reasonable locating angle can gain ideal fluid field in well bottom, full clean and cool cutter, non-symmetry blades arrangement enhance drilling well balance, optimization for cutter shape, slant angle, cutter numbers prolong the bit working life in combination with the high quality of pdc cutter, and improve rop and drilling efficiency, it can be used on rotary and down hole motor,
type typesizeAPI PIN SIZEWEIGHT(KGS)
inchdia
8 1/2 M 1234AL8 1/2215.94 1/2 REG70
8 1/2 M 3235AL8 1/2215.94 1/2 REG70
8 1/2 M3235BLF8 1/2215.94 1/2 REG70
8 1/2 M2235L8 1/2215.94 1/2 REG70
8 1/2 M3236AL8 1/2215.94 1/2 REG70
8 3/4 M3235AL8 3/4222.34 1/2 REG72
9 1/2 M3235L9 1/2241.36 5/8 REG85
9 1/2 M3236L9 1/2241.36 5/8 REG85
12 1/4 M323512 1/4311.16 5/8 REG105

For more detailed specifications or catalog please feel free to contact with us.
