downhole drilling-1.Wide range of useage
2.High quality and best price
3.Long life and full model
4.Certified by ISO900

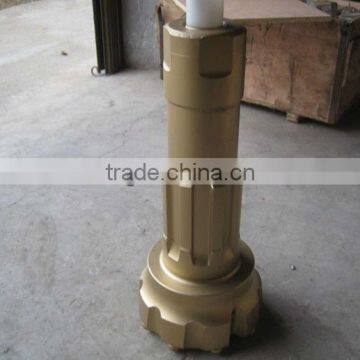

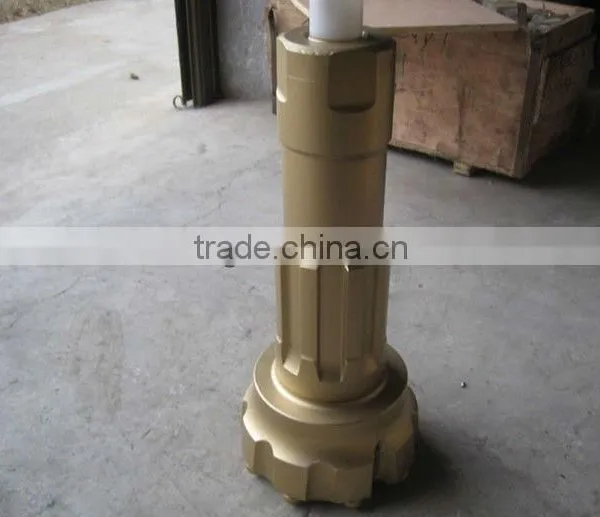

115mm,152mm downhole drilling
Product Description
ZM is specialist manufacturer of Down the Hole Hammer and Bits. ZM manufactures the most advanced high air pressure and Low high pressure DTH Hammer and Bits in China with high-quality raw materials and advanced craft technology. Our Down the Hole Drilling Equipment and Accessories and various types of High pressure Hammer and Bits are interchangeable with various products manufactured by Sandvik, Ingersoll-Rand, Atlas Copco etc. All our products are widely used in mining, tunneling, quarrying, construction, and civil engineering projects. And the products are exported massively to more than twenty countries such as Australia, Canada, USA, France, etc.
Down the hole bits | |||||||
Name of product | Diameter | Tip size(mm) | Spline | Weight | P/N | ||
Gauge | Front | ||||||
| 76 | 5×12 | 3×11 | 45×4 | 2.5 | ZQ76C-454 | |
90 | 6×14 | 4×12 | 50×6 | 3.5 | ZQ90D1-506 | ||
95 | 6×14 | 2×12 | 3.6 | ZQ95D-506B1 | |||
90 | 6×14 | 4×12 | 54×6 | 3.5 | ZQ90D3-546 | ||
93 | 6×14 | 2×14 | 3.5 | ZQ90D8-546B1 | |||
90 | 6×14 | 2×14 | 3.5 | ZQ90D9-546B1 | |||
95 | 6×14 | 4×12 | 3.7 | ZQ95D-546 | |||
| 100 | 6×14 | 3×14 | 56×4 | 4.8 | ZQ100D-564B1 | |
105 | 6×14 | 3×14 | 5.1 | ZQ105D-564B1 | |||
110 | 6×14 | 3×14 | 5.3 | ZQ110D3-564B1 | |||
115 | 6×14 | 3×14 | 5.6 | ZQ115D3-564B1 | |||
120 | 6×14 | 3×14 | 5.9 | ZQ120D2-564B1 | |||
| 110 | 6×14 | 3×14 | 60×4 | 5.5 | ZQ110D4-604B1 | |
110 | 6×14 | 4×12 | 5.3 | ZQ110D8-604B1 | |||
115 | 6×14 | 3×14 | 5.8 | ZQ115D4-604B1 | |||
