Specifications
16-110mm PVC pipe production line1 china producer
2 Germany technology
3 high extruding speed
16-110mm PVC pipe production line
PVC pipe production line.
Configuratio for PVC pipe production line

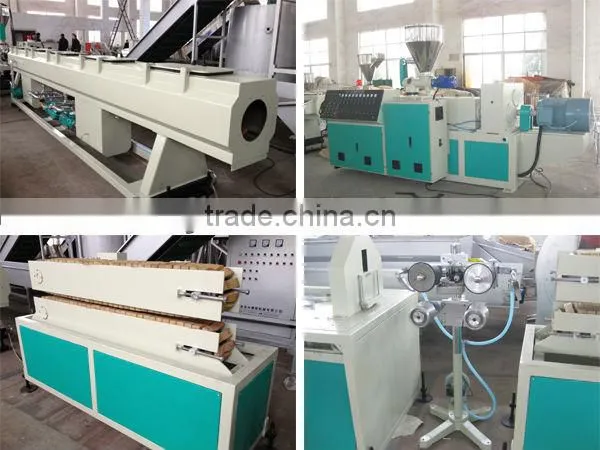

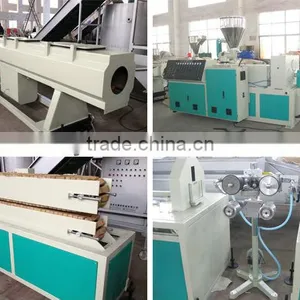

PVC pipe production line contains conical twin screw extruder, mould, calibrating tank, cooling tank, haul-off, cutter and stacker..
Application:
16-110mm PVC pipe production line
1 china producer
2 Germany technology
3 high extruding speed
Detailed description of PVC pipe production line :
PVC pipe production line/PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm.If you are interesting in this machine,please contact me. thanks
PVC pipe production line is mainly used to produce PVC water pipe, wire and cable pipe, drain pipe and so on.
Characteristic:
Pipe range |
20-63mm single |
20-63mm dual |
75-160mm |
110-315mm |
315-630mm |
Extruder |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
Extruder power |
18.5kw |
37kw |
37kw |
55kw |
110kw |
Extrusion capacity |
120kg/h |
250kg/h |
250kg/h |
360kg/h |
800kg/h |
Max. Production speed |
12m/min |
10m/min |
6 m/min |
3 m/min |
1.2m/min |
PVC pipe production line

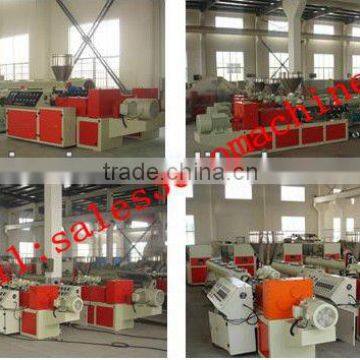

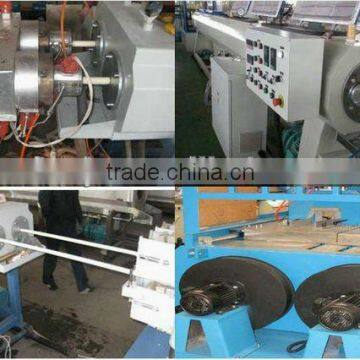

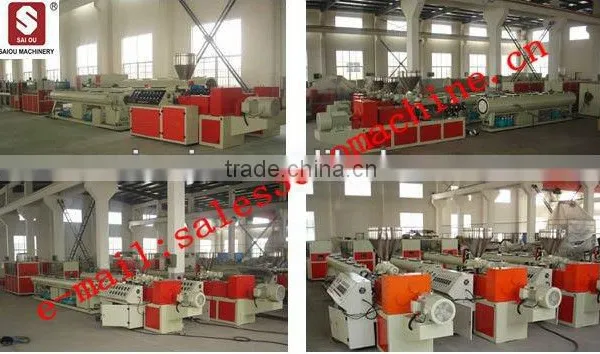

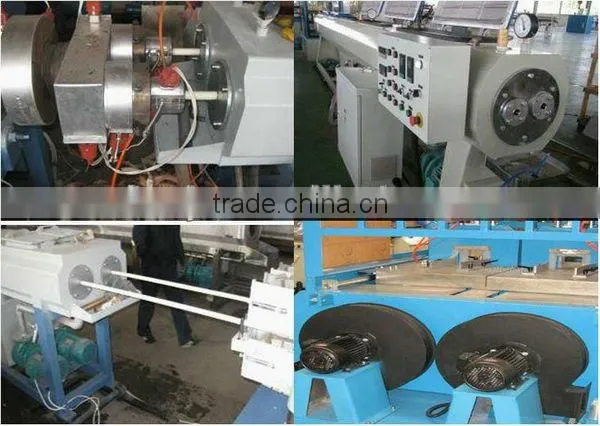

PHOTOS :
