Specifications
PPR pipe extrusion linehigh-speed extruding and high efficiency plasticized and can guarantee

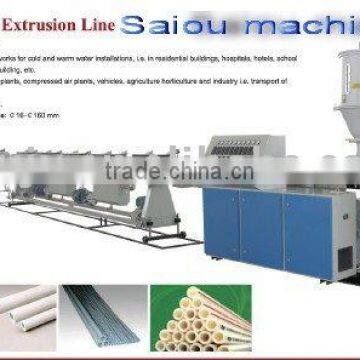

PPR pipe extrusion line
1) The production line adopts the high efficiency spiral pole extruding machine made by our company. It has the characters of high-speed extruding and high efficiency plasticized.
2) Adopt special screw of barrier pattern with double poler mix-refining, and adopt motor barrel with opening dent.
3) Twice-diffluence new pattern mould is equipped, which has the characters of Iow temperature and Iow pressure extruding. And the fixing diameter cover with water pattern can guarantee the high speed production of pipe material.
4) The production line is controlled is easier
5) The marked line extrusion can be choosed in the production line, which can produce the color marked pipe material. This also can produces the PE Pipe if change the mould.
@. We can exactly design the machine according to your requirements.
| Ltem/Paramenter/Model Specifications |
SJ-63 |
SJ-160 |
SJ-315 |
| Extruder Model |
SJ65 ×30 | SJ90 ×30 | SJ120×30 SJ25×25 |
| Proudced Pipe Spedcifition(mm) | Φ16-Φ63 | Φ75-Φ160 | Φ150-Φ315 |
| Production Line Speed . m/min |
≥3-12 | ≥2-8 | ≥1.2-6 |
| Compressed air.m3/min. | 0.3 | 0.3 | 0.5 |
| Cooling water flow | 2 | 7 | 8 |
| Total Power(kw) |
72 | 115 | 180 |
| Appearance Size .L×W×H. mm |
20000 ×4000×1700 | 26000 ×4500×1750 | 30000 ×5000×1750 |
| Total Weight(kg) |
