SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher

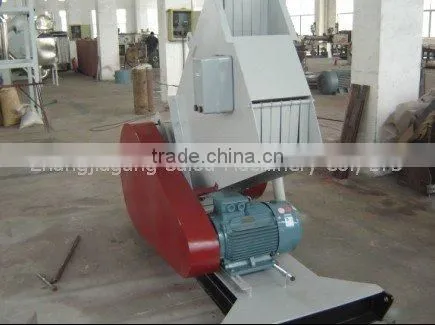

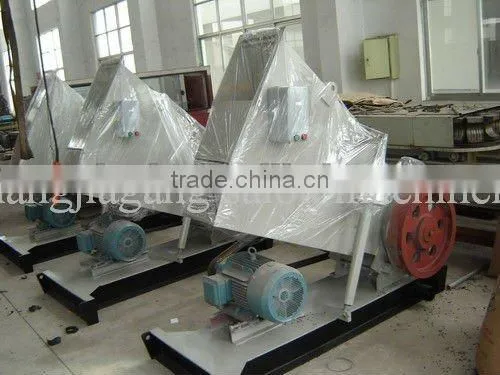

SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher photo-1

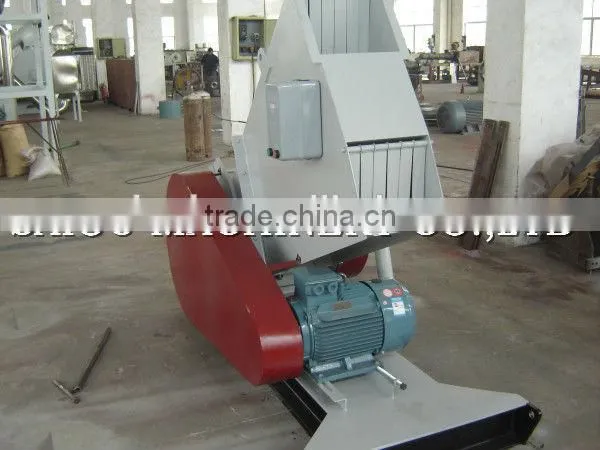

SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher photo-2

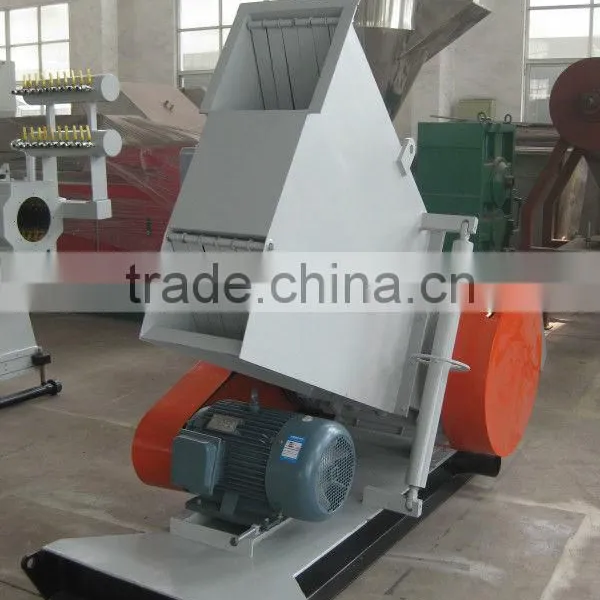

SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher photo-3

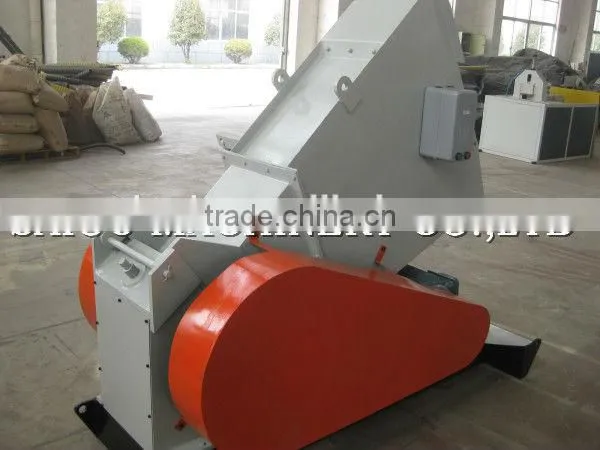

SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher photo-4

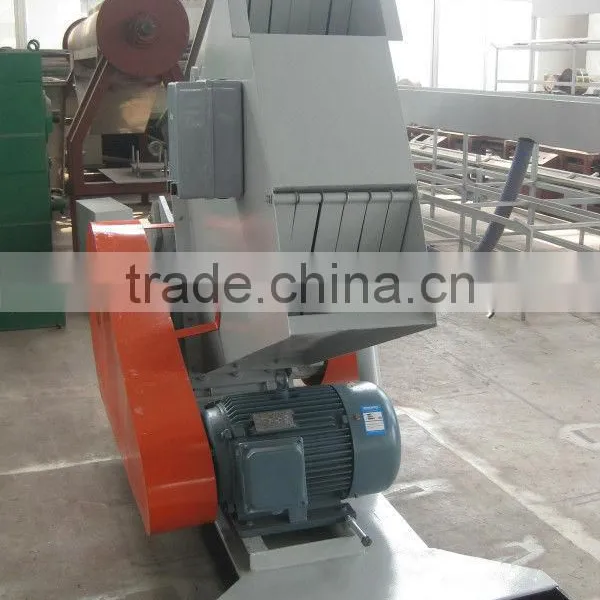

SWP Series Plastic Crusher/SWP-400/plastic Pipe Crusher photo-5
US$ 4,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
SAIOU
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name SAIOU
Model Number SO plastic pipe crusher
Use Plastic Pipe Crusher
Plastic Type PP/PE
Shaft Design Single
Power 22KW
Capacity 400kg/h
Voltage 380V
Power(W) 45KW
Weight 500KG
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Plastic Pipe Crusher/Powerful Plastic Crusher Machine



1.It can break waste products occurred in mould injection, it may also break such material as pipe material, shaped material, piece material, film, etc.



 2.It adopts imported high-quality tool-steel, it is especially durable. The installation of the blade can be adjusted, and can be sharpened again and again. Its use life is very long.



The Feature and Application

  1. The special cutter is made of import-high-quality tool steel which is special durable. The adjustable installation of cutter makes the cutter can be used again and again, extends the usage lifetime.
  2. The step-shearing design of movable cutter′s pedestal decomposed and increased exponentially the cutting force.
  3. The movable cutter′s pedestal is made of T7A advanced high-quality tool steel which is not easy to break and tear, and fixed by high-strength steel screws(8.8 level) which is solid and durable.
  4. The host is made of the Q235A thick walled constructional quality steel which can ensure the long-time use of crusher.



Main Technical Parameters



Model

Swp400(B)

Rotary Cutter Diameter(mm)

400

Rotary Knife(piece)

5

Fixed Knife(piece)

4

Sieves Mesh Size(mm)

8-14

Output(kg/h)

200-400

Power(kw)

15

Dimensions of Inlet(mm)

400*250

Weight(kg)

800

Dimension(cm)

200*100*180





Other SWP Style of plastic pipe crusher



Model

Steady Turning Diametermm

Knife Board Widthmm

Main Axis Rotating Speed

rpm

Product Capacitykg/h

Motor PowerKW

SWP500-600

500

600

470

600

45

SWP630-800

630

800

470

800

45

SWP630-1000

630

1000

470

1000

55

SWP630-1200

630

1200

470

1200

55

SWP700-1000

700

1000

470

1500

55

 .

If you are interested in it ,you can contact with me directly.

Of course ,welcome to our factory!



SWP Series plastic crusher/SWP-400/plastic pipe crusher.



SWP Series plastic crusher/SWP-400/plastic pipe crusher
