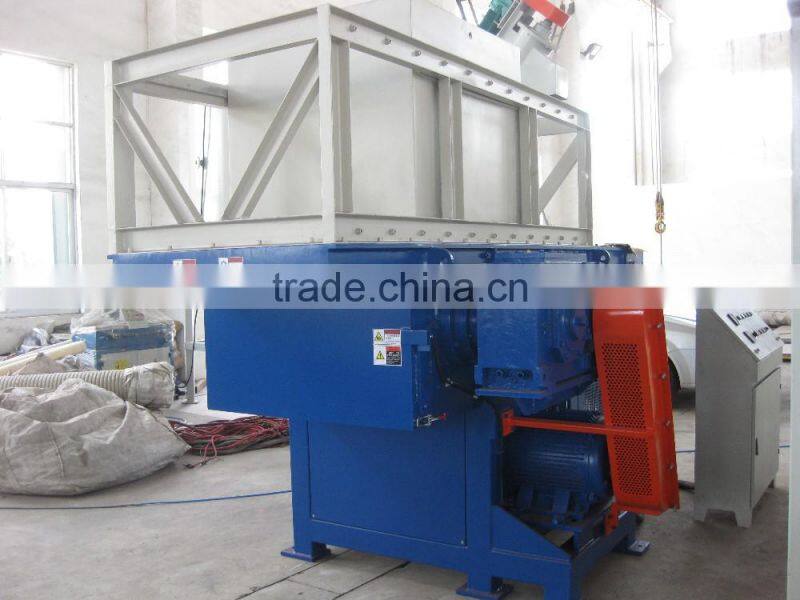

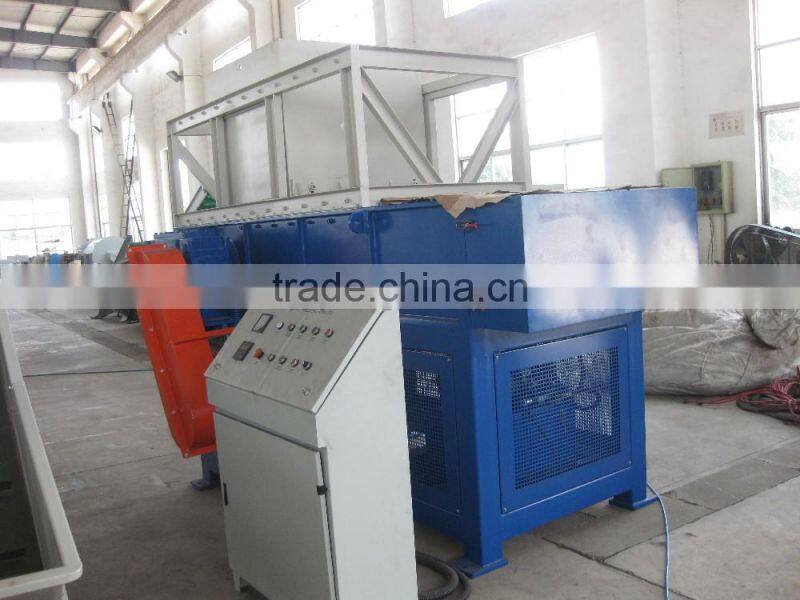

Help CenterLarge-diameter Pipe Crusher
Related Products
-
Plastic Crusher Bottle Grinder Hdpe Bottle CrusherUS$ 30,000 - 80,000MOQ: 1 Set -
Top Sale Plastic Crusher Grinder Plastic Recycling MachineUS$ 30,000 - 80,000MOQ: 1 Unit
-
Washing Machine Prices Crushing Plastic Recycling CrusherUS$ 30,000 - 80,000MOQ: 1 Set
-
Waste Recycling Plastic Grinder,crusher PP PE PET MaterialUS$ 30,000 - 80,000MOQ: 1 Set
-
Widely Used Plastic ShredderUS$ 30,000 - 80,000MOQ: 1 Set
The whole broken course can realize automation. At the same time of brokenness, the operator can control remotely, and it has no damage to operator.
The unit's feeding motor adopts frequency control, and the pipe of 0.5-8m can be feed and broken automatically.
The blades adopt high quality alloy steel, can bear greater impact, and the interval between rotary and fixed blade can adjust, and can grind several times after blunt.
There is a feeding inlet on the top of fine crusher, and some fine side material can feed into crusher directly from the feeding inlet.
This unit has high efficiency, low consumption, compact appearance; and broken material is smooth, no dust, and can be used directly without pelletizing again; storage silo is equipped magnetic device, to prevent metal falling into the broken material.
This unit has high automatic degree and low invest cost.
Large-diameter Pipe Crusher technical parameters:
Model |
Steady Turning Diametermm |
Knife Board Widthmm |
Main Axis Rotating Speed rpm |
Product Capacitykg/h |
Motor PowerKW |
SWP500-600 |
500 |
600 |
470 |
600 |
45 |
SWP630-800 |
630 |
800 |
470 |
800 |
45 |
SWP630-1000 |
630 |
1000 |
470 |
1000 |
55 |
SWP630-1200 |
630 |
1200 |
470 |
1200 |
55 |
SWP700-1000 |
700 |
1000 |
470 |
1500 |
55 |
