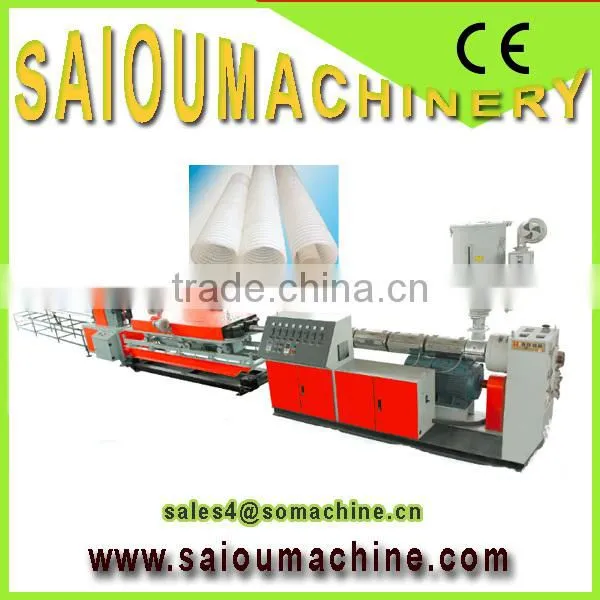

hdpe double wall corrugated drainage pipe machine .
A. Production description of double wall corrugated drainage pipe machine.
- Specification: 90-200mm
It's made of extruder, die head, forming module, forming machine, cutter, stacker, etc.
We can make the machine according to your requirements.
- Parater technical :
-
Composition of the production line
OD50-110mm
OD120-200mm
Main extruder
SJ65/30/SJ65/30
SJ90/30/SJ65/30
Main motor power(kw)
37
55/37
Max output(kg/h)
80
120/80
Machine die head/mould block
50pairs/set
50pairs/set
Pipe forming machine
BW-II
BW-III
Spray tank
Length 6000mm
--
Pipe cutting machine
Saw blade cutter
--
Pipe stacking shelf
Length 6000mm
--
Hopper drier
STG-U160
STG-U160
Automatic feeding machine
ZJ200
ZJ200
Plastic mixing machine
SH50
SH100
Plastic crushing machine
SWP400
SWP400

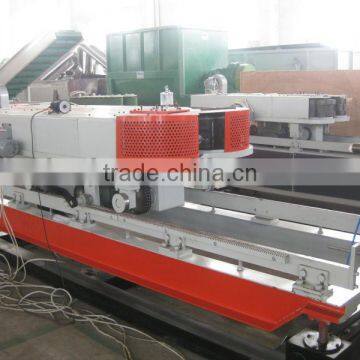

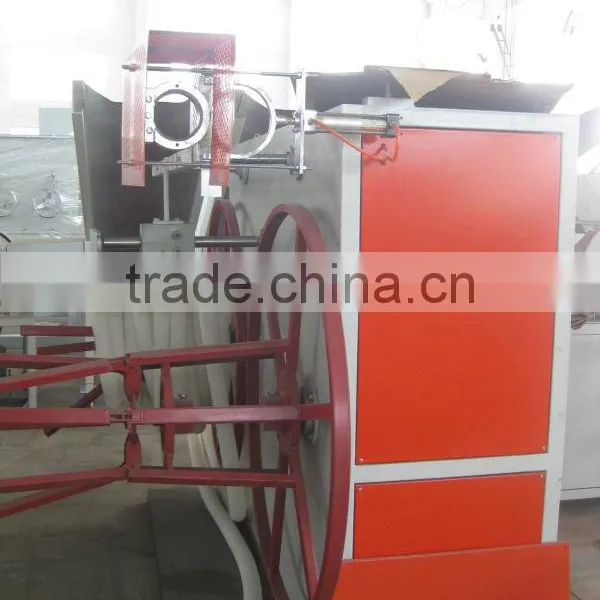

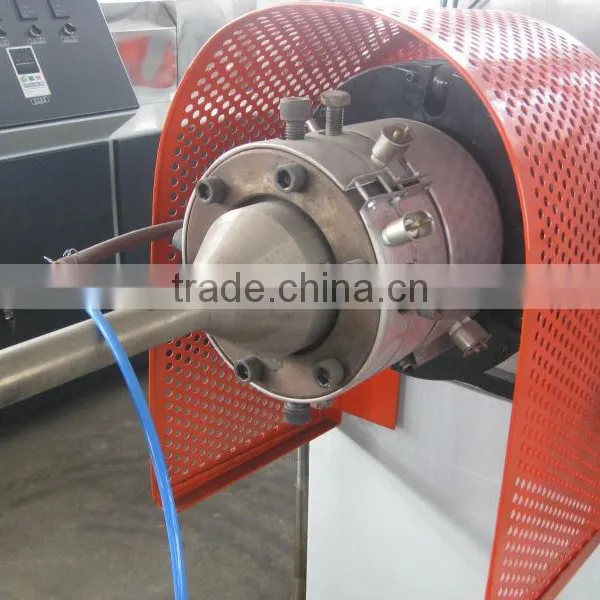

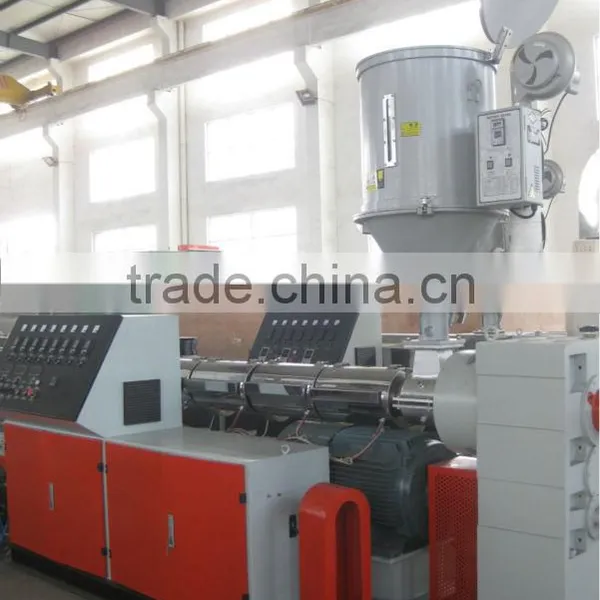

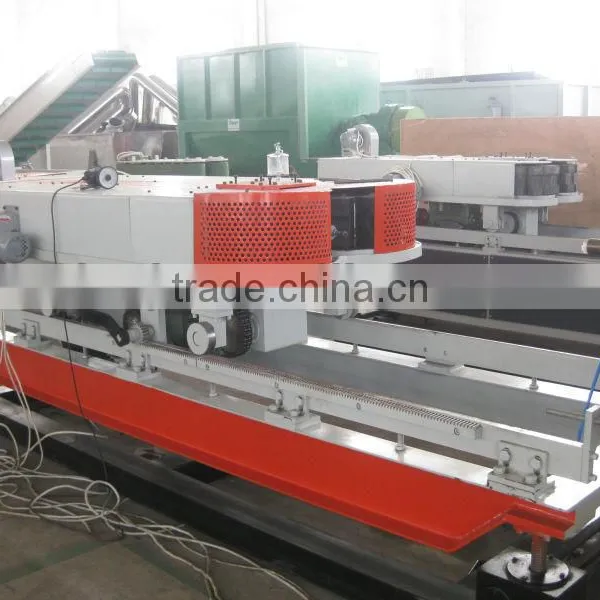

B. Detail of Products for corrugated drainage pipe machine line .
C.Usage .
- This kind of corrugated pipe is mainly used for underground water drainage system.
- It is fully computer/instrument controlled, automatic production line. It features high and stable output capacity, and highly automatic operation.Our production range is Φ90~Φ200mm.
- Different types of extruders can be selected to match with the production line according to the material properties.

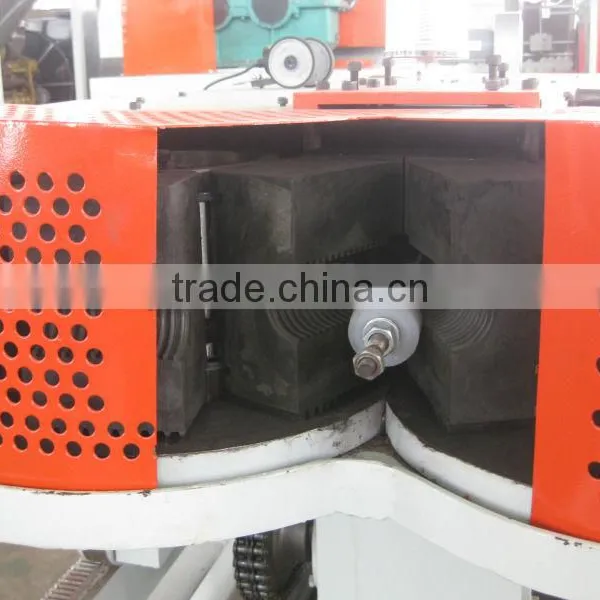

- The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they may have air or water cooling system. The belling process can also be realized on line. High precision cutting can be guaranteed by rotation type cutting machine.

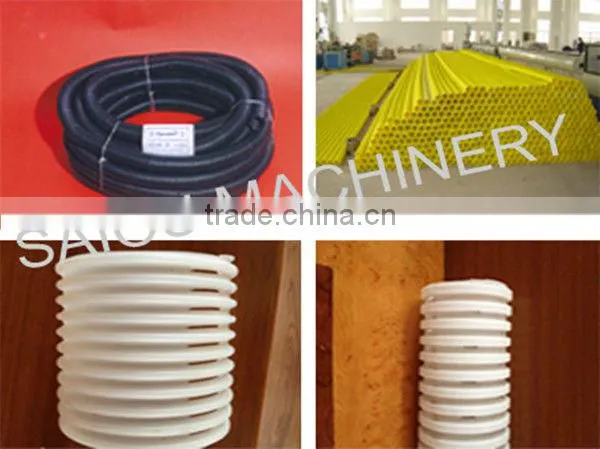

F.Final Products of hdpe double wall corrugated drainage pipe machine .
G.Certificate:
H. Payment :
- 30% TT is down payment as deposit, and 70% is paied before shipment.
- 30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
- 100% irrevocable L/C at sight.
- By Escrow from Alibaba.
I.Package :
- Film package: we used simple package suit for shipping
- Wooden package: If you want to wooden package, you should paied the extra cost.
J.Factory Show :
K. After sale-service .
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
- Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of worker
L.If you want to know more information ,please contact with us directly.
Ms Shadow Fan
Mob: 0086-13962247879
Skype ID: saiouzjg
