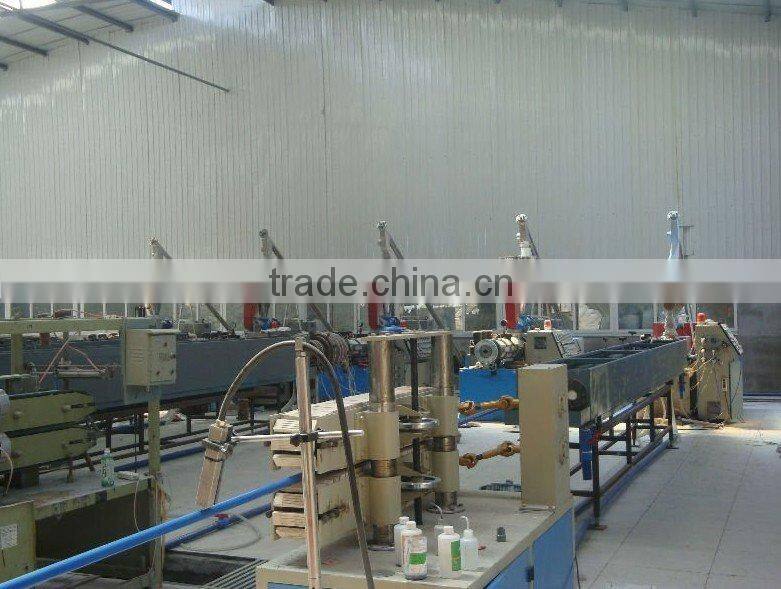

Help CenterLarge Diameter PVC Pipe Extrusion Line
Related Products
-
Round Pipe Prestress Pastic Corrugated Pipe Production LineUS$ 1,000 - 50,000MOQ: 1 Set -
Prestress Plastic Corrugated Pipe Production LineUS$ 1,000 - 50,000MOQ: 1 Set
-
HDPE Corrugated Pipe Production LineUS$ 1,000 - 50,000MOQ: 1 Set
-
Single Wall Corrugated Pipe Production LineUS$ 1,000 - 50,000MOQ: 1 Set
-
PLASTIC WASHING LINEUS$ 500 - 100,000MOQ: 1 Set
Specifications
PVC Pipe extrusion line1.pipe diameter from 16-630mm
2.All motors adopt siemens motor
3.ABB inverter
4.ce certificate
Professional PVC Pipe extrusion line
Features:
1) Adopts lastest German technology, and it is convenient to change the mould block,
Then it is easy the change the size of produced pipe
2) The line shall be used to produce single wall corrugation pipe in PVC, PP and PE raw
PVC Pipe extrusion lineMaterial
3) Moulding corrugated pipe with smooth inside and outside surface, and even ripple
At one time by corresponding die
4) Used as wire and cable passing pipe, washing machine drain pipe,
Dust collector pipe and ventiduct
5) Small size corrugation pipe of 4mm - 6.7mm are used in car.
(plastic pipe production line, pe/pvc corrugated pipe extrusion line, pe/pvc pipe making machine,
plastic extruder
Characteristic:
Pipe range |
20-63mm single |
20-63mm dual |
75-160mm |
110-315mm |
315-630mm |
Extruder |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
Extruder power |
18.5kw |
37kw |
37kw |
55kw |
110kw |
Extrusion capacity |
120kg/h |
250kg/h |
250kg/h |
360kg/h |
800kg/h |
Max. Production speed |
12m/min |
10m/min |
6 m/min |
3 m/min |
1.2m/min |
