Plastic PE/PP/PVC Corrugated Pipe Production Line/plastic pipe making machine
Pictures of this single wall corrugated pipe making machine :

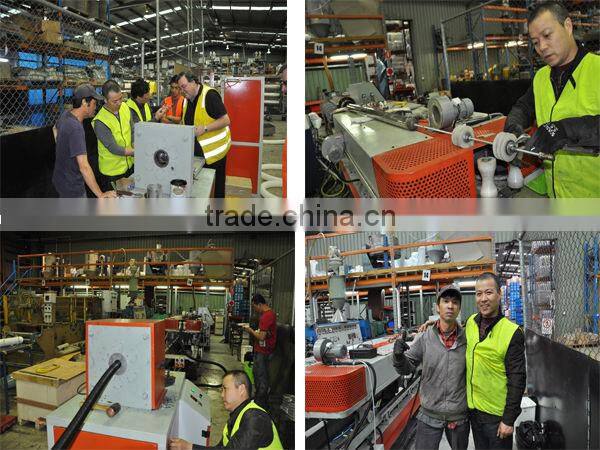

Our HDPE 100mm single wall corrugated pipe extrusion machine is installed in Australia.

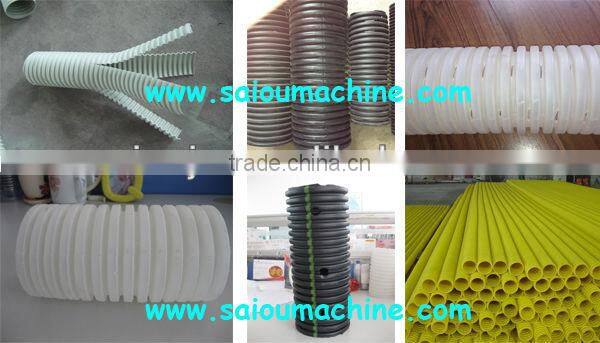

Final products sample for your reference:

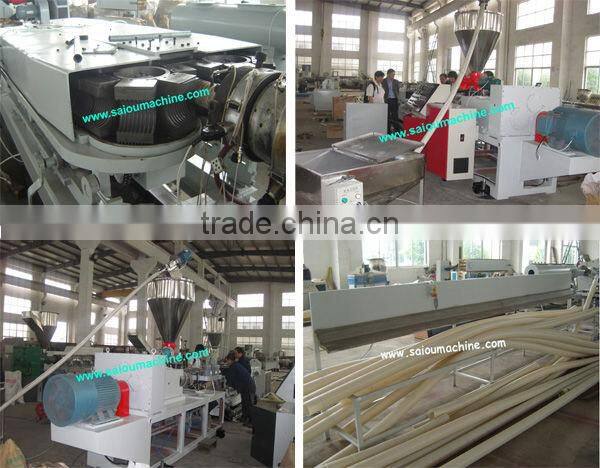

single wall corrugated pipe making machine
ADVANTAGE OF THIS EXTRUSION LINE:
High Efficiency Extrusion, Even Plasticization
Stable Performance, High Speed
Closed Structure Moulding Blocks Machine
CE, ISO9001, quality Certification
Main Electrical Components: Omron temperature controller, SIMENS or Schneider contactor, RKC, Delix, Fuji, ABB inverter, etc.
Single Wall Corrugated Pipe Features:
PVC Single wall corrugated pipe production line consists of extruder, die, moulding machines, automatic cutter and winder or stacker. It’s used to process single wall corrugated pipes with diameter from 16-200mm, which are used for wire and cable, and used as drainage pipes of washing machine, vent pipes.etc.
Extruder: the extruder has high speed high efficiency screw, hard gear surface, FUJI convertor. This structure guarantees the extruding speed and efficiency, the material evenly heating and good plasticization.

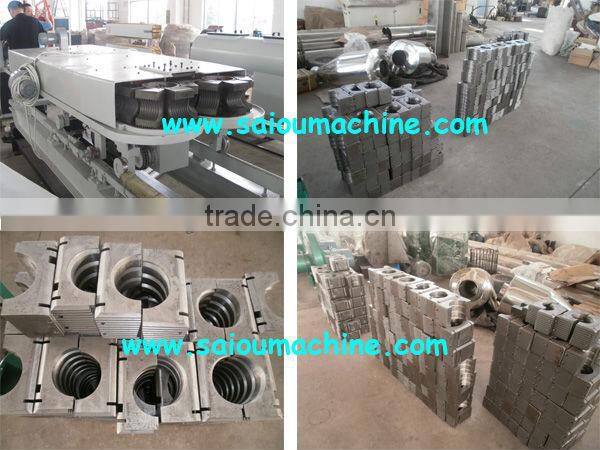

Mold block: the design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable.
Corrugator: Horizontal structure with 40 Cr special die head. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind. This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.
Winding machine: moment motor, single/double station winder.
Main technical parameter:
Pipe diameter range(mm) |
OD16-50 |
OD16-63 |
OD75-200 |
Main extruder machine |
SJSZ45/100 |
SJSZ51/107 |
SJSZ65/132 |
Main motor power(KW) |
18.5 |
22 |
37 |
Max output(kg/h) |
80 |
120 |
150 |
Mould block(couple) |
50pairs |
50pairs |
50pairs |
Production speed(m/min) |
1-5 |
1-5 |
1-3 |
Trade show:
Certification
Packing&Shipping
After-sale service & Warranty:
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance
- Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers
