Specifications
1.Powder coating line2.Energy saving
3.Good quality
4.Clean and economical
5.Leading manufacturer
INTRODUCTION
Our company is located in Shandong Qingdao’s west coast. Transportation is convenient, the geographical position is superior, is a collection of scientific research development, professional design, production and installation, commissioning services for the integration of professional spraying equipment production enterprise.
The main products: Automatic landing spraying machines, automatic spraying room, electric, coal, fuel, gas-drying stove, through type sprinkler, immersion drench pretreatment devices ,drying case and bake, suspension conveyor equipment.
The newly development whirlwind recovery systems and transparent exchange membrane can be sprayed such as the Tu-for-color Powder great convenience, performance is unprecedented in China.
NO | Process name | The temperature(°C) | The processing time (min) | Handling |
1 | Hang up the artifacts |
|
|
|
2 | Pickling | 50-60 | 1 | Spray |
3 | Pickling | 50-60 | 2 | Spray |
4 | Washing | RT | 1 | Spray |
5 | Washing | RT | 1 | Spray |
6 | Surface conditioning | RT | 1 | Spray |
7 | Phosphating | 50-55 | 3 | Spray |
8 | Washing | RT | 1 | Spray |
9 | Washing | RT | 1 | Spray |
10 | Drying | 110-140(adjustable) | 10-20 | Hot air circulation |
11 | Spraying | RT | According to the workpiece | Automatic spraying |
12 | Curing | 180-200(adjustable) | 20-25 | Hot air circulation |
13 | Spraying workpiece completed | RT | According to the production speed | Natural drying |
please offer as follows:
1. The size of the largest and minimum workpiece
2. The weight of the largest and minimum workpiece
3. The material of the workpiece.
4 The length, width and height of the factory available for the powder coating line
5. If need to change colors in one day? How many colors do you have .
6. Need automatic paint or manual paint
7. If need pretreatment process , spray pretreatment or bath pretreatment?
8. The output of one day or one month
9. Heating method .gas heating or electrical heating
1) Pretreatment: Dipping pretreatment with overhead crane, or fully automatic spraying pretreatment
2) Conveying system: closed-circuit conveyor, power and free conveyor, multi-track conveyor, and so on
3) Oven: batch oven, combination oven, bridge curing oven, tunnel oven

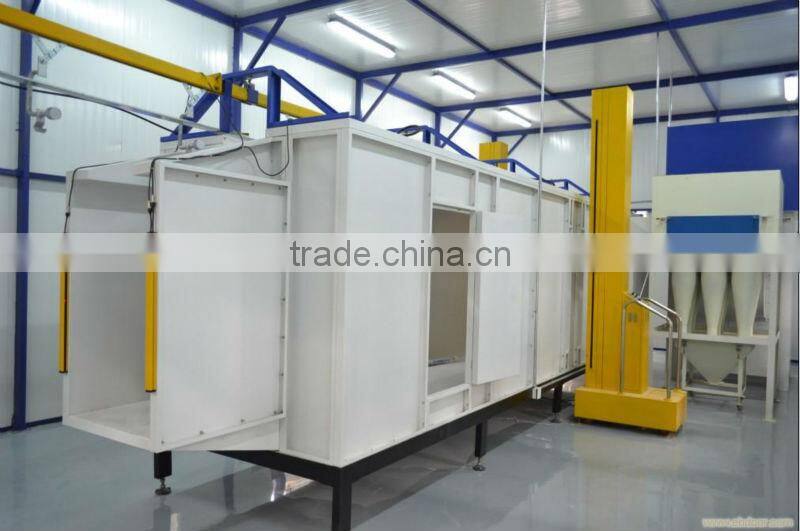

4) Powder coating booth: stainless steel booth or coated steel booth

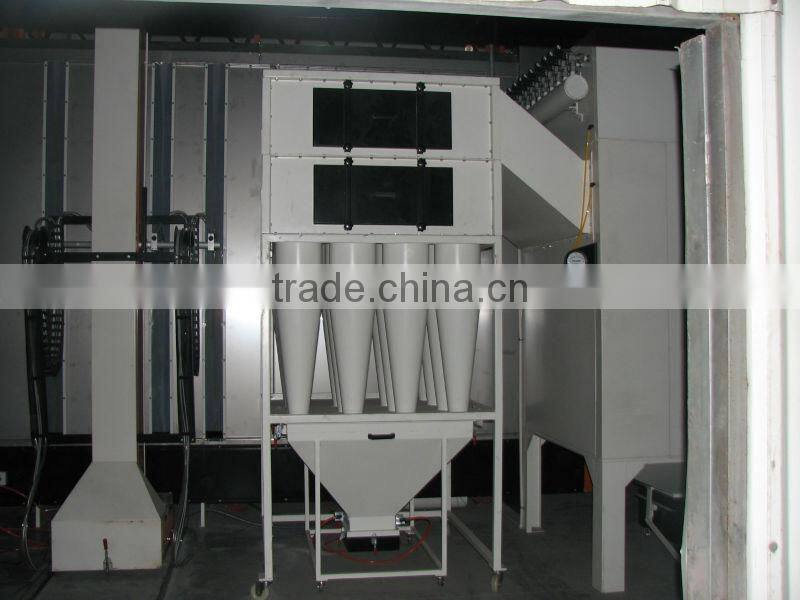

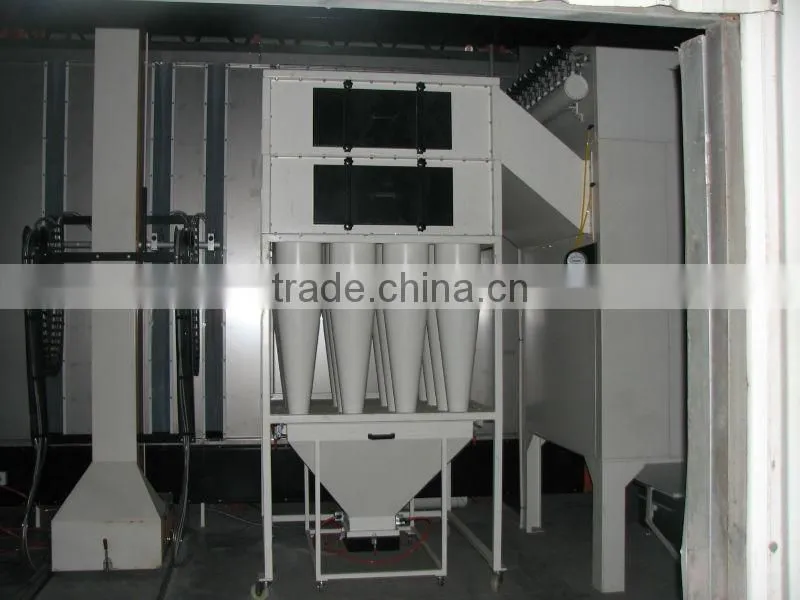

5) Powder recycling facility,cyclone pulse recovery system
cyclone pulse recovery system or pulse recovery system
6) Control system: PLC control, with or without touch screen
7) Spray gun and reciprocator
Guarantee And After-sale Service
l One year guarantee for whole machine
l 24 hours technical support by e-mail
l Calling or door-to-door service
