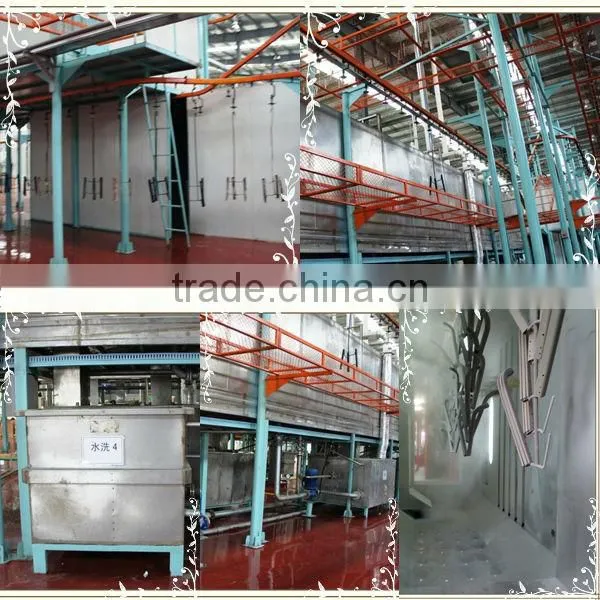

aluminum profile,power and free conveyor powder coating line

NO

Process name

The temperature(°C)

The processing time (min)

Handling

1

Hang up the artifacts

2

Pickling

50-60

1

Spray

3

Pickling

50-60

2

Spray

4

Washing

RT

1

Spray

5

Washing

RT

1

Spray

6

Surface conditioning

RT

1

Spray

7

Phosphating

50-55

3

Spray

8

Washing

RT

1

Spray

9

Washing

RT

1

Spray

10

Drying

110-140(adjustable)

10-20

Hot air circulation

11

Spraying

RT

According to the workpiece

Automatic spraying

12

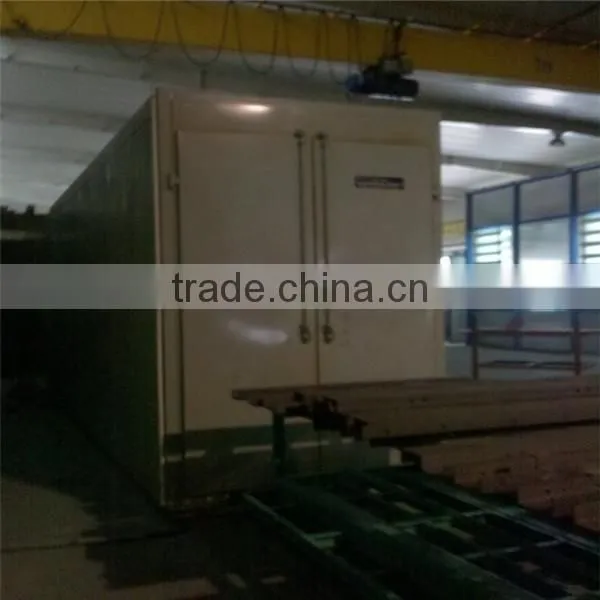

Curing

180-200(adjustable)

20-25

Hot air circulation

13

Spraying workpiece completed

RT

According to the production speed

Natural drying

1.Electrostatic powder spraying machine

2.Electrophoretic coating equipment

3.YG20XX series high-pressure type paint spraying equipment

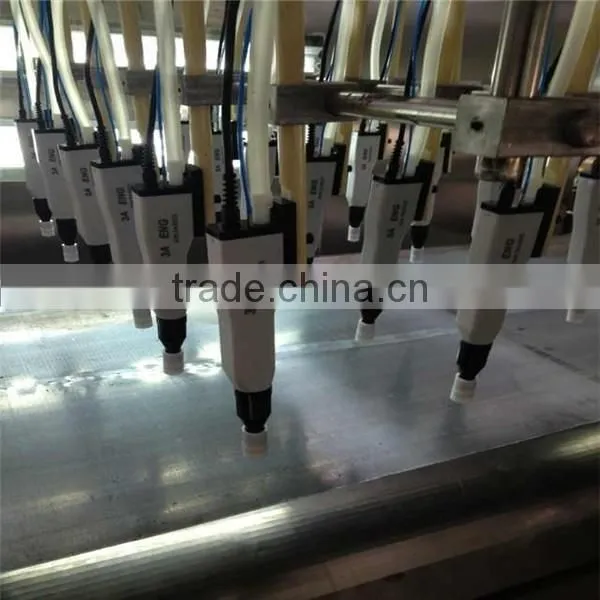

4.The powder gun

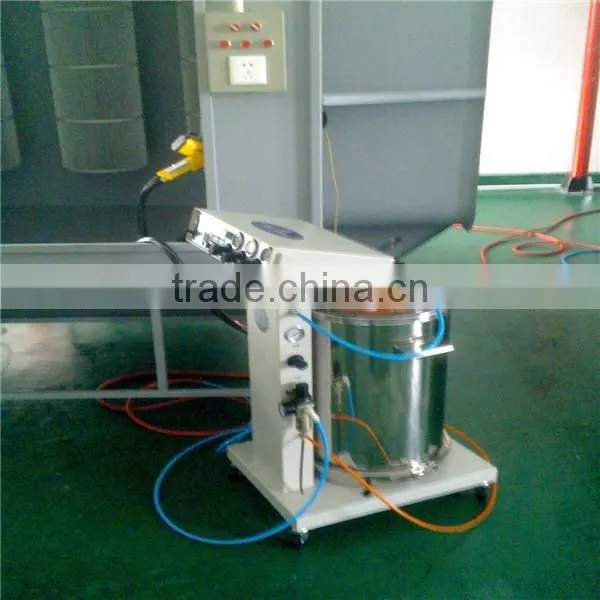

5.powder spraying machine

6.Air electrostatic spraying equipment

7.FS500 system new sieving machines

8.YS06 programmable touch screen to reply

Spraying can be manual, automatic or manual + automatic. Spray material is 100% solid powder, the powder can be recycled free paint recycling rate up to 98%. Suspension transport system, high degree of automation. Less porous coating, good corrosion resistance, and a thick film coating.

Electrostatic spraying into a liquid electrostatic spraying , powder coating

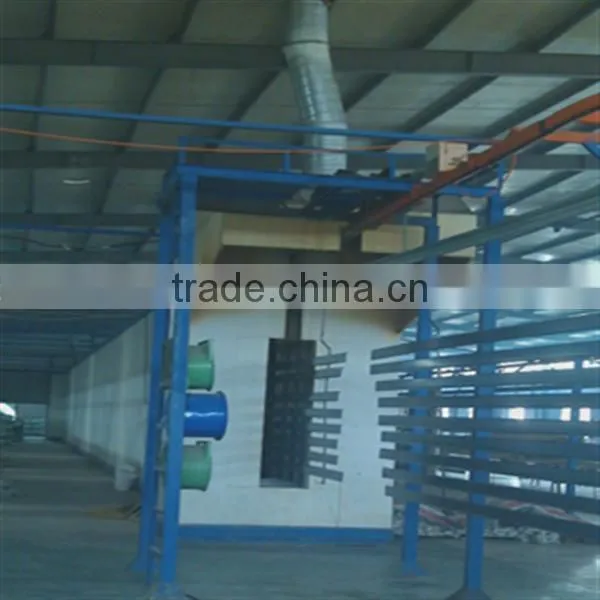

Electrostatic spraying

Pre-treatment --- Host spraying - the workpiece on indoor spraying powder recovered from the circulatory system automatically recovered powder - Ovens Curing - Finished

1. high-tech composite material spray booth can quickly clean up and multicolored spray

2. Meet the most stringent safety standards, the extraction rate higher

3 room flat and blowing spray at the bottom of the device, so no plot pink powder room to improve spray quality, easy color change

4 Intelligent powder center: for powder, clean up, change color process control, convenient and fast

1. Strict quality system stability

2. According to customer demand for customized solutions

3. tracking services
