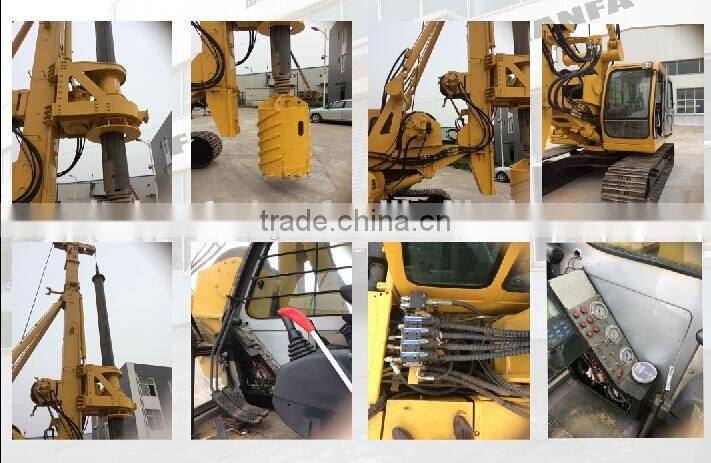

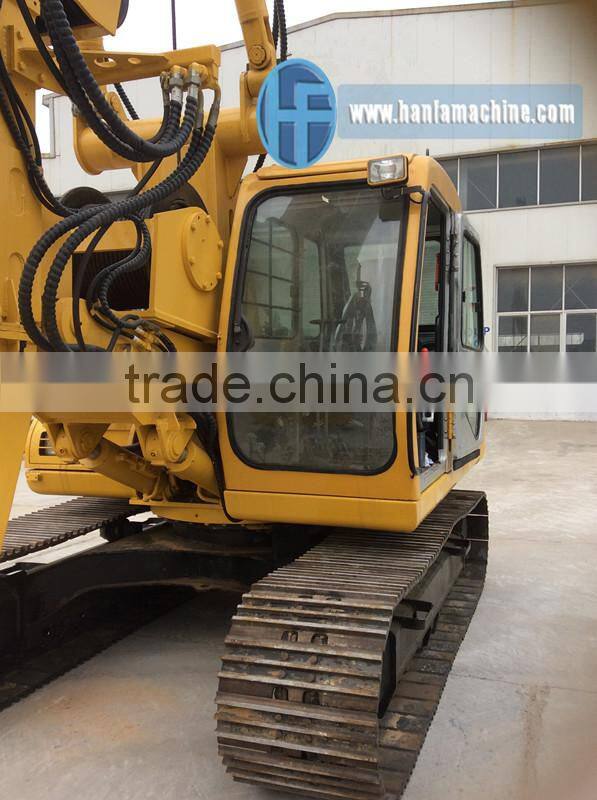

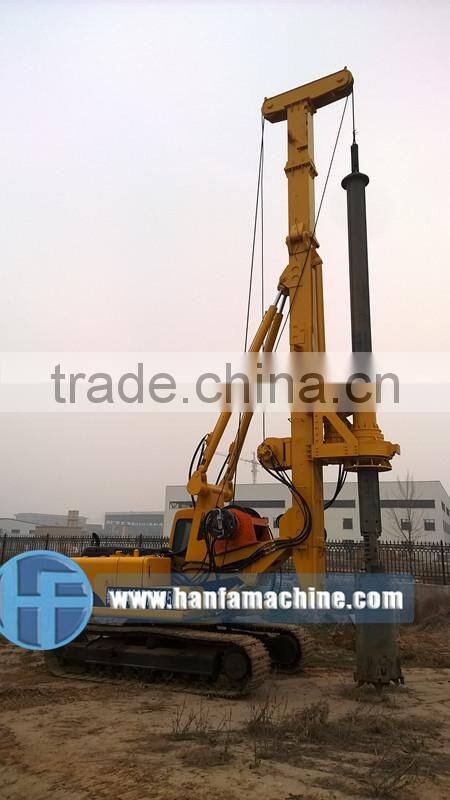

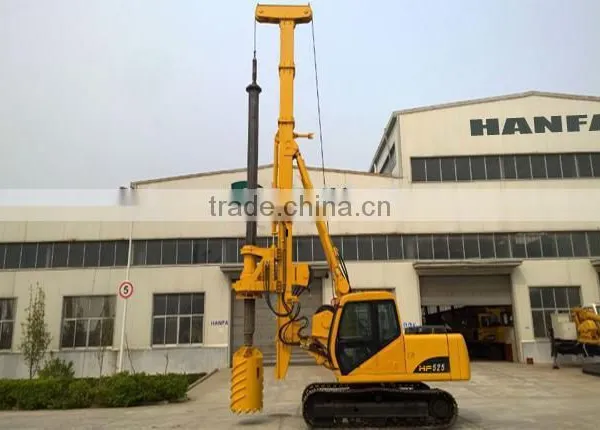

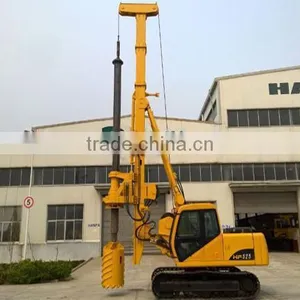

Durable and economic ! HF525 hydraulic piling rig for sale

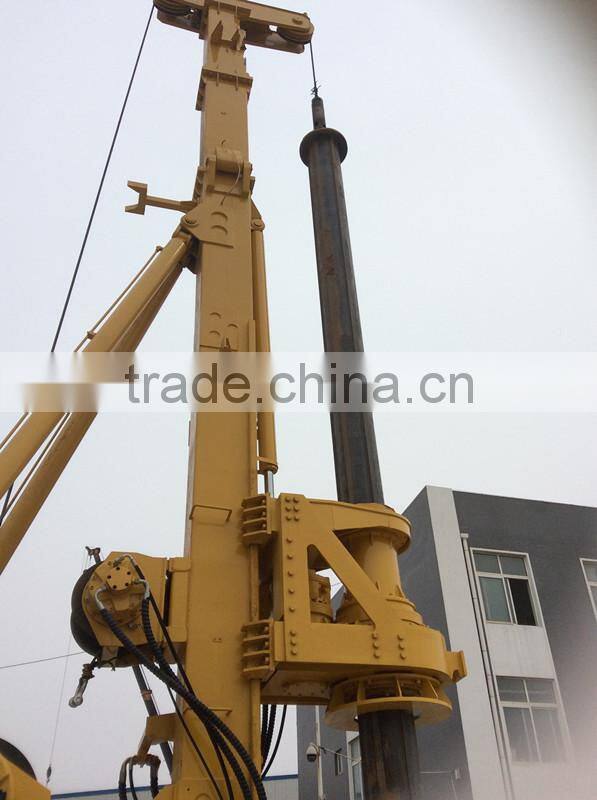

• It adopts telescopic mast which has simple structure, high durability, low cost and makes the repair more convenient.

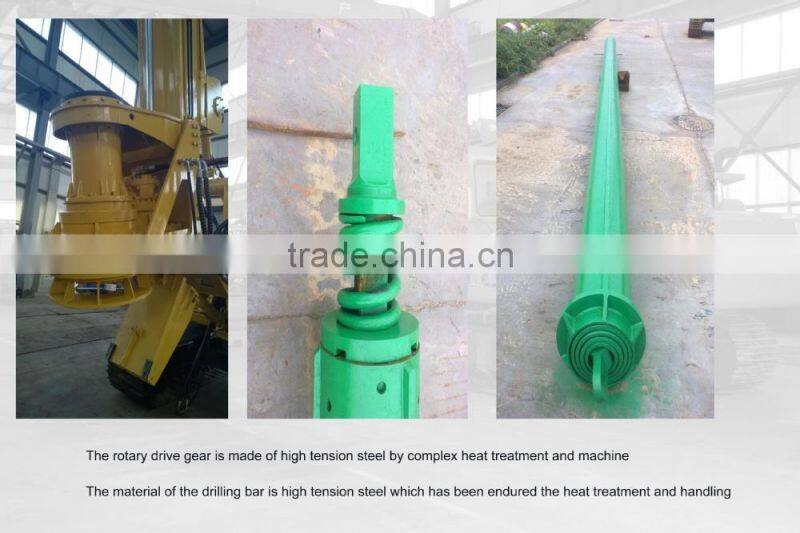

• The power head adopts high position-oriented frame structure guarantees the verticality of kelly bar, which makes construction more convenient, and improves the working efficiency and safety.
• The power head adopts unique patented structure, which features low cost, not easily damaged and convenient for repair.

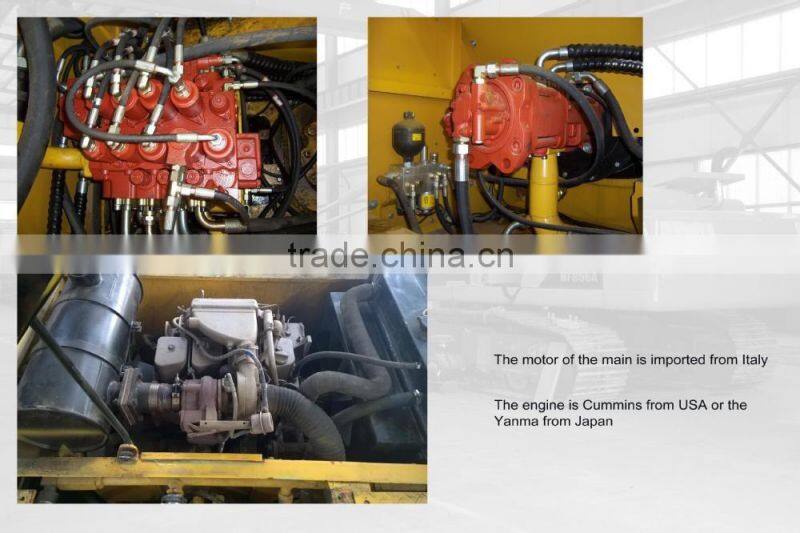

• Main winch: it adopts originally imported Italy hydraulic motor. It is more flexible and can be lowered freely, and the lifting speed is up to 80m/min, which greatly improves the work efficiency. The main winch is allocated at the front right of the operator, so the operator can observe its work condition and avoid twisted ropes.
| HF525 Drilling Rig Data(standard configuration) | |||
| Max. drilling diameter | mm | 1400 | |
| Max. drilling depth | m | 25 | |
| Engine power | Power | kw | 86 |
| type | Japanese-Yanma(86kw)/2200RPM | ||
| Rotary Drive | Torque | knm | 50 |
| Speed | rpm | 1-20 | |
| Motor | Italy Sai | ||
| Main Winch | Max.pull | kn | 80 |
| Motor | Italy Sai | ||
| Auxiliary winch | Shanghai | ||
| Crowd cylinder | Max. push | kn | 100 |
| Overall measurement | Working dimensions | mm | 10913X2600X5810 |
| Transport dimensions | mm | 9908X2600X3207 | |
| Traveling gear | Toshiba/Chinese-Doushan | ||
| Hydraulic pump | Toshiba/Chinese-Doushan | ||
| Hydraulic valve | Toshiba/Chinese-Doushan | ||
| Machine weight | kg | 25000 | |
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 15-20 days.
