Product Details
Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HF-20A |
Product Description
Specifications
HF-20A Big-hole Engineering Drill for Pile Holes1.max diameter 2m
2.normal&reverse circulation
3.rock killer
4,light weight

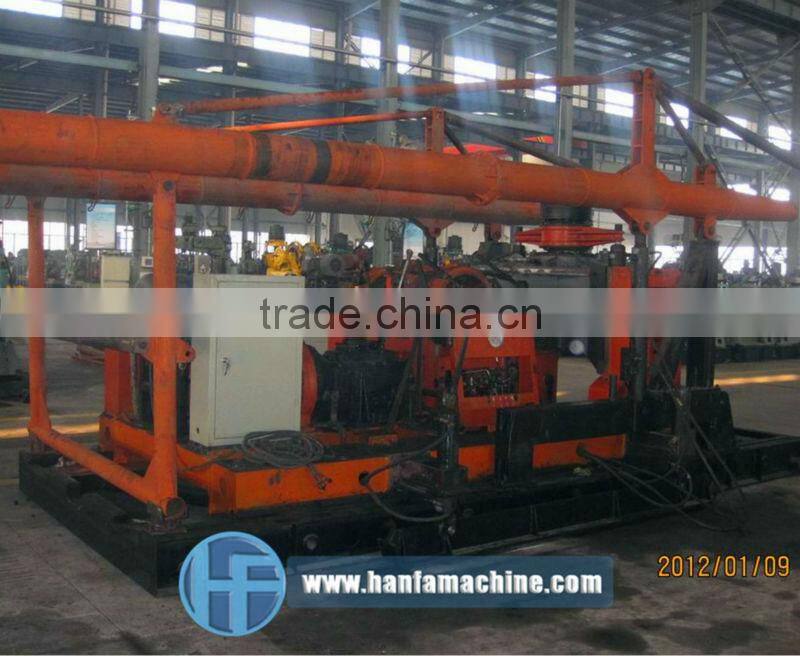

HF-20A Big-hole Engineering Drill for Pile Holes
I. Application
HF-20A drill is a light weight big-hole engineering drill, it units the tower and machine body together.
HF20A integrates the drill's advantages of the types turnplates, the power heads and the main shaft drills.
The drill has such advantages as high drilling efficiency and precision, powerful torque, wider ranges of speed and smaller coefficient of oversize of hole.
It can drill in the ways of forcing feed or reducing bit load drilling by hydraulic system.
Oil cylinder of the drill can raise or pull down the tower safely and quickly, move and fit the hole position conveniently.
After moving the machine, the bit of two metre diameter can be directly lifted or run in. Height of the tower is ten and five metres, which can directly pull down the steel cages.
The assistant hoist's capacity is strong. The drill is equipped with step device as to fitting the hole position conveniently.
The control handlebars are collected so easy to operating.
The drill can be used in the drilling technologies of normal or reverse circulation in the quaternary period gravel or hard rock ground.
The drill can be mainly used for big-hole grouting pile holes drilling of high building, port and bridge.
II. Main Technical Parameters
Drilling capacity | Drill diameter | 2.0m | Main hoist capacity (single rope) | 45kN |
Drill depth | 80m | Assistant hoist capacity (single rope) | 30kN | |
Speed | Positive | 10.4, 19, 31, 49.3, 76.5r/min | Effective height of drill frame | 10.5m |
Negative | 11.8r/min | Max. load of drill frame | 180kN | |
Max. torque | 40kN.m | Power | 45kW | |
Max. pressure force | 100kN | Dimensions (LXWXH) | 5760x3000x11000 mm | |
Max. lifting force | 120kN | Weight (with power unit) | 12500kg | |
|
|
|
