Specifications
bored pile drilling rig1.ISO9001:2008;TUV Rheinland
2.hydraulic system
3.Rotary pile drill rig

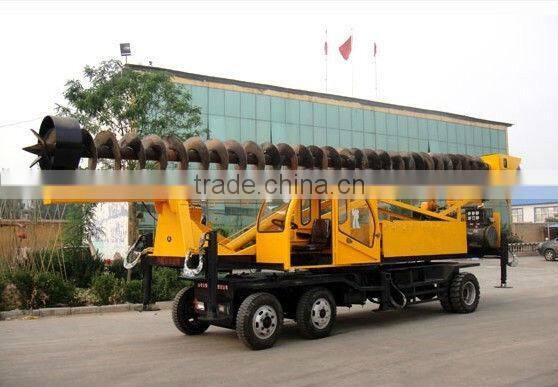

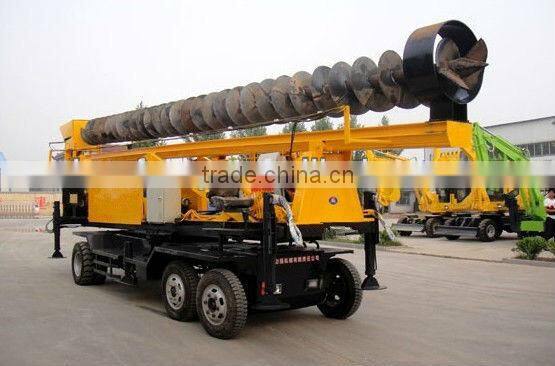

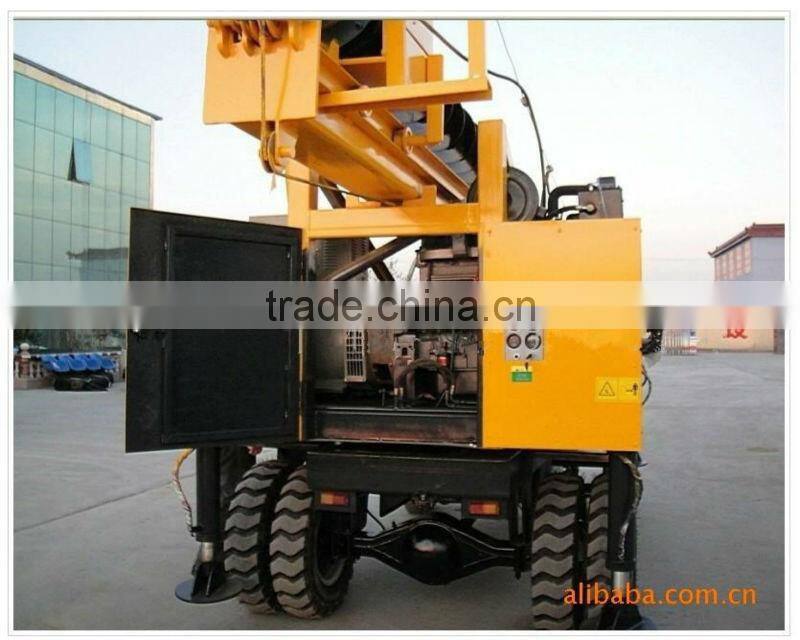

HF-360 bore pile drilling rig
Main Feature&Application:
1. Mainly used for construction and infrastructure projects, high drilling efficiency with about 6m depth per 3 minutes.
2. Three walking ways: 1) traditional generator walking; 2) for short walking distance in work site, can adopt electricity walk way; 3) hydraulic walking way when walking in sticky ground.
3. Manganese Steel for raw material of drill bit and rod, can be used to various soil layers, like frozen soil, red soil, LOESS, clay, etc.
4. Hydraulic brake system for hoist, with strong power and better braking effect.
5. Vehicle weight system, best balance ability when drilling, avoiding overturn accident.
Technical Parameter:
Model |
HF-360 |
|||
Hole diameter |
200mm |
250mm |
||
Drilling depth |
19m |
18m |
||
Revolution angle° |
360° |
|||
Overall dimension |
Operating mode |
11.5m×2.1m×13.6m |
||
Weight |
8.4t |
8.6t |
||
Wheel |
8 pcs |
8 pcs |
||
Generator power |
50kw |
50kw |
||
Hoist power |
3/11t/kw |
3/11t/kw |
||
Hydraulic oil pump power |
11kw |
11kw |
||
Travel power |
24kw |
24kw |
||
Oil pump flow |
32ml/r |
32ml/r |
||
Oil pump pressure |
16mpa |
16mpa |
||
Travel type |
Short distance travel by electric and hydraulic; long distance by diesel |
|||

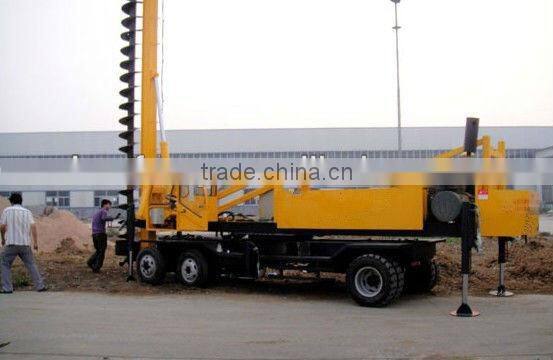

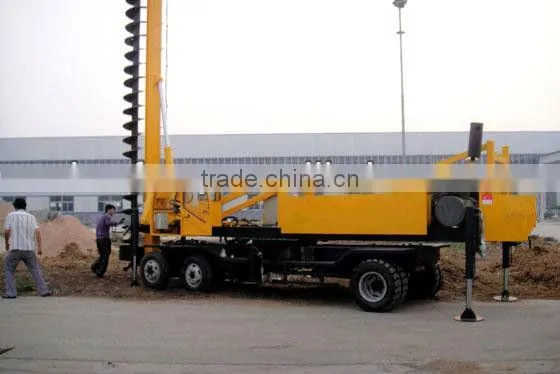

Test working:
Other drill rig, water drill rig, DTH drill rig, blast hole drill rig:
DTH Drill rig, blast hole drill rig, water drill rig:
Drill tools:
About our company:
Should any item you are interested, kindly give us inquiry, our pleasure to supply you best offer and service as well. Welcome to join us!!!!
