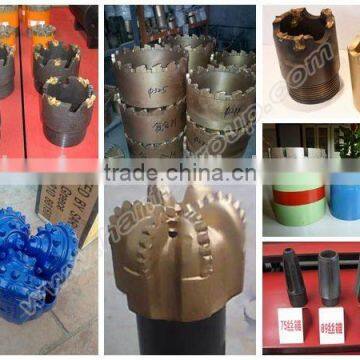

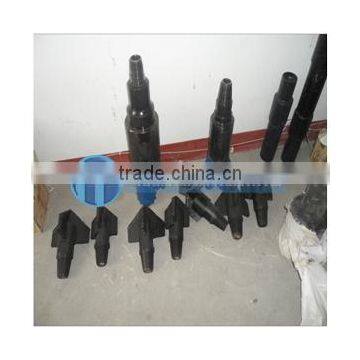

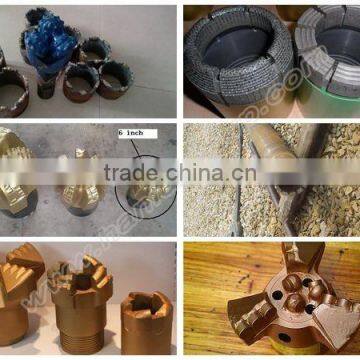

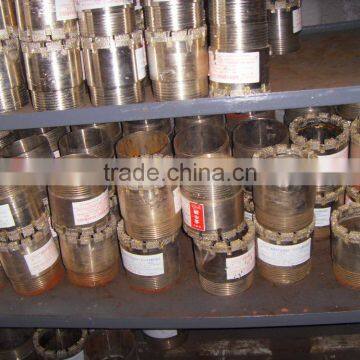

Steel Core Drill Bit/Hollow Drill Bit/Oil Rig Drill Bit
Steel Core Drill Bit/Hollow Drill Bit/Oil Rig Drill Bit
1,Application:
1,Suit for drilling medium to medium-hard formations.
2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented .
3,Composite gage protection and low torque design improve rate of penetration .
4,CFD hydraulic balance design results in better bit cleaning and cutting removal .
5,Combined utilization of high performance PDC compacts significantly prolongs bit life
Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.
Feature:Diamonds are impregnated in the matrix behind the PDC cutters
Benefit:Increased footage drilled in abrasive applications
2.details:
Bit type |
Main bit size(mm) |
Rock coefficient |
|
PDC core drill bit |
Single pipe |
75/54.5 94/74 113/89 113/109 153/129 |
1-18 |
Two-pipes |
75/54.5 94/68 |
||
PDC center drill bit |
Concave 3 wing bit |
60 75 94 113 133 |
1-18 |
|
Arc pillar
|
60 75 94 113 133 |
4-18 |
|
Many wing scraper |
60 75 94 113 133 133 153 173 190 215 |
1-6 |
|
PDC Indexable drill bit |
153/94 153/113 190/153 190/113 |
1-18 |
|
Model |
118,152,215.9,244,311,445 |
Type |
all kinds and size PDC bits |
Applicable |
water well, oil field, construction, geothermal, directional boring, and underground foundation work |
Formation |
sticky, soft, medium hard, hard formation |
blade |
4,5,6,7,8,9 |
Packing |
wooden box |
Payment Term |
T/T |
MOQ |
1 Piece |
Supply Ability |
1000 Pieces/month |
Delivery Time |
within 7-15 work days |
